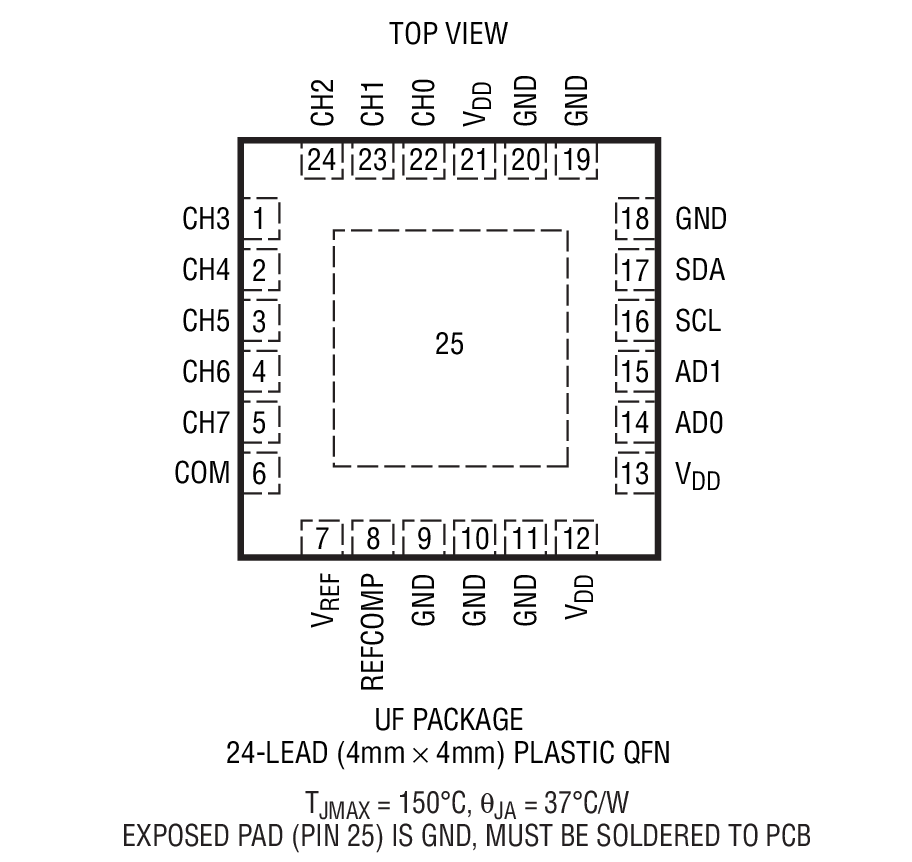

The LTC2309 is a low noise, low power, 8-channel, 12-bit successive approximation ADC with an I2C compatible serial interface. This ADC includes an internal reference and a fully differential sample-and-hold circuit to reduce common mode noise. The LTC2309 operates from an internal clock to achieve a fast 1.3μs conversion time.The LTC2309 operates from a single 5V supply and draws just 300μA at a throughput rate of 1ksps. The ADC enters nap mode when not converting, reducing the power dissipation.The LTC2309 is available in both a small 24-pin 4mm × 4mm QFN and a 20-pin TSSOP package. The internal 2.5V reference and 8-channel multiplexer further reduce PCB board space requirements.The low power consumption and small size make the LTC2309 ideal for battery-operated and portable applications, while the 2-wire I2C compatible serial interface makes this ADC a good match for space-constrained systems.ApplicationsIndustrial Process ControlMotor ControlAccelerometer MeasurementsBattery-Operated InstrumentsIsolated and/or Remote Data AcquisitionPower Supply Monitoring

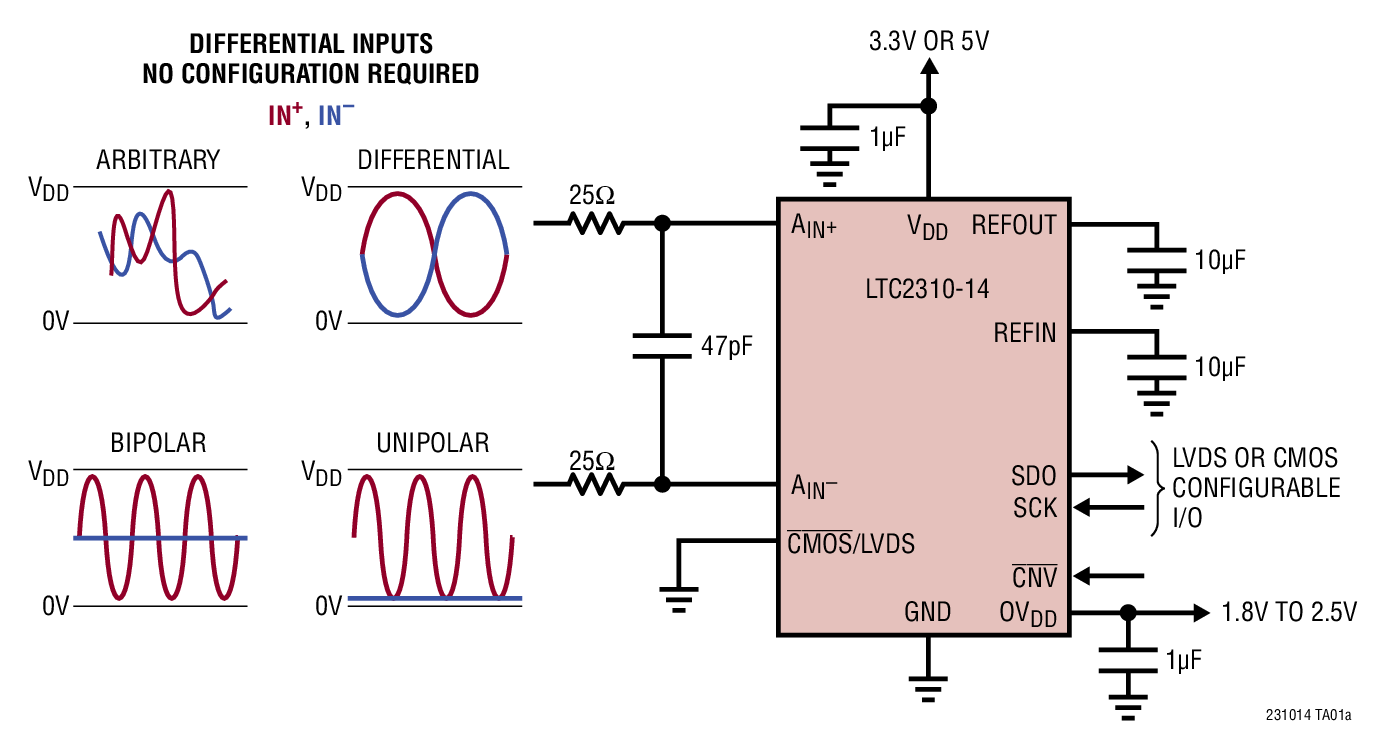

The LTC2310-14 is a low noise, high speed 14-bit + sign successive approximation register (SAR) ADC with differential inputs and wide input common mode range. Operating from a single 3.3V or 5V supply, the LTC2310-14 has an 8VP-Pdifferential input range, making it ideal for applications which require a wide dynamic range with high common mode rejection. The LTC2310-14 achieves ±2.5LSB INL guaranteed, no missing codes at 14 bits and 82dB SNR typical.The LTC2310-14 has an onboard low drift (20ppm/°C max) 2.048V or 4.096V temperature-compensated reference and provides an external 1.25V buffered reference input. The LTC2310-14 also has a high speed SPI-compatible serial interface that supports CMOS or LVDS. The fast 2Msps throughput with no cycle latency makes the LTC2310-14 ideally suited for a wide variety of high speed applications. The LTC2310-14 dissipates only 35mW with a 5V supply and offers nap and sleep modes to reduce the power consumption for further power savings during inactive periods.ApplicationsHigh Speed Data Acquisition SystemsCommunicationsRemote Data AcquisitionImagingOptical NetworkingAutomotiveMultiphase Motor Control

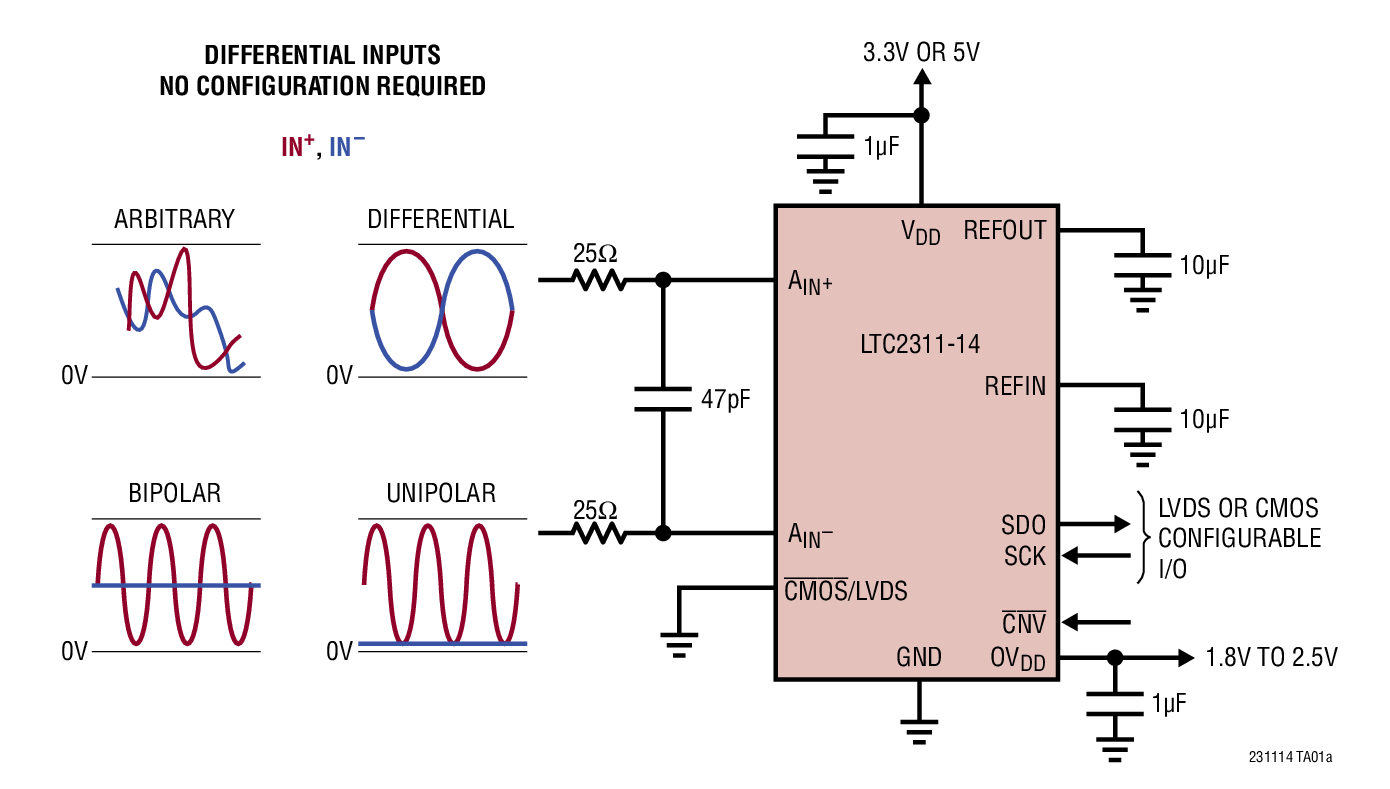

The LTC2311-14 is a low noise, high speed 14-bit + sign successive approximation register (SAR) ADC with differential inputs and wide input common mode range. Operating from a single 3.3V or 5V supply, the LTC2311- 14 has an 8VP-Pdifferential input range, making it ideal for applications which require a wide dynamic range with high common mode rejection. The LTC2311-14 achieves ±0.75LSB INL typical, no missing codes at 14 bits and 80dB SNR typical.The LTC2311-14 has an onboard low drift (20ppm/°C max) 2.048V or 4.096V temperature compensated reference and provides an external 1.25V buffered reference input. The LTC2311-14 also has a high speed SPI-compatible serial interface that supports CMOS or LVDS. The fast 5Msps throughput with one-cycle latency makes the LTC2311-14 ideally suited for a wide variety of high speed applications. The LTC2311-14 dissipates only 50mW with a 5V supply and offers nap and sleep modes to reduce the power consumption to 5μW for further power savings during inactive periods.ApplicationsHigh Speed Data Acquisition SystemsCommunicationsRemote Data AcquisitionImagingOptical NetworkingAutomotiveMultiphase Motor Control

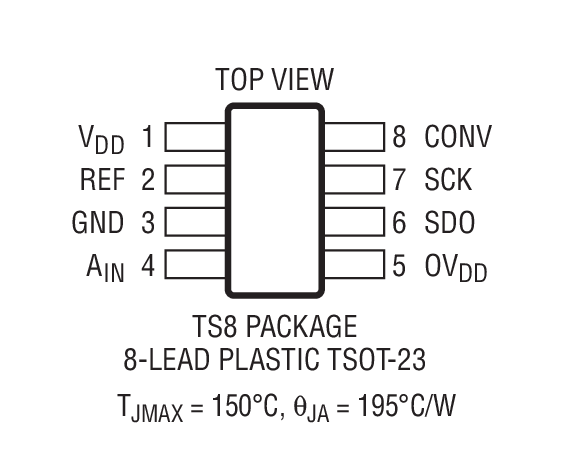

The LTC2312-12 is a 12-bit, 500ksps, serial sampling A/D converter that draws only 3mA from a single 3V or 5V supply. The LTC2312-12 contains an integrated low drift reference and reference buffer providing a low cost, high performance (20ppm/°C maximum) and space saving solution. The LTC2312-12 achieves outstanding AC performance of 72.7dB SINAD and –84dB THD while sampling at 500ksps. The extremely high sample rate-to-power ratio makes the LTC2312-12 ideal for compact, low power, high speed systems. The supply current decreases at lower sampling rates as the device automatically enters nap mode after conversions.The LTC2312-12 has a high speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3V and 5V logic. The fast 500ksps throughput with no-cycle latency makes the LTC2312-12 ideally suited for a wide variety of high speed applications.BitsLTC2312-1212LTC2312-1414ApplicationsCommunication SystemsHigh Speed Data AcquisitionHandheld Terminal InterfaceMedical ImagingUninterrupted Power SuppliesBattery Operated SystemsAutomotive

The LTC2312-14 is a 14-bit, 500ksps, serial sampling A/D converter that draws only 3.2mA from a single 3V or 5V supply. The LTC2312-14 contains an integrated low drift reference and reference buffer providing a low cost, high performance (20ppm/°C maximum) and space saving solution. The LTC2312-14 achieves outstanding AC performance of 77dB SINAD and –85dB THD while sampling at 500ksps. The extremely high sample rate-to-power ratio makes the LTC2312-14 ideal for compact, low power, high speed systems. The supply current decreases at lower sampling rates as the device automatically enters nap mode after conversions.The LTC2312-14 has a high speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3V and 5V logic. The fast 500ksps throughput with no-cycle latency makes the LTC2312-14 ideally suited for a wide variety of high speed applications.BitsLTC2312-1212LTC2312-1414ApplicationsCommunication SystemsHigh Speed Data AcquisitionHandheld Terminal InterfaceMedical ImagingUninterrupted Power SuppliesBattery Operated SystemsAutomotive

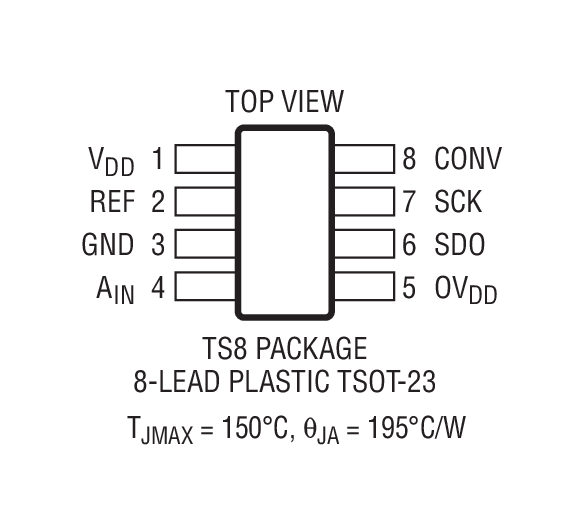

The LTC2313-12 is a 12-bit, 2.5Msps, serial sampling A/D converter that draws only 5mA from a single 3V or 5V supply. The LTC2313-12 contains an integrated low drift reference and reference buffer providing a low cost, high performance (20ppm/°C maximum) and space saving solution. The LTC2313-12 achieves outstanding AC performance of 72.6dB SINAD and –84dB THD while sampling at 2.5Msps. The extremely high sample rate-topower ratio makes the LTC2313-12 ideal for compact, low power, high speed systems. The supply current decreases at lower sampling rates as the device automatically enters nap mode after conversions.The LTC2313-12 has a high speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3V and 5V logic. The fast 2.5Msps throughput with no cycle latency makes the LTC2313-12 ideally suited for a wide variety of high speed applications.BitsLTC2313-1212LTC2313-1414ApplicationsCommunication SystemsHigh Speed Data AcquisitionHandheld Terminal InterfaceMedical ImagingUninterrupted Power SuppliesBattery Operated SystemsAutomotive

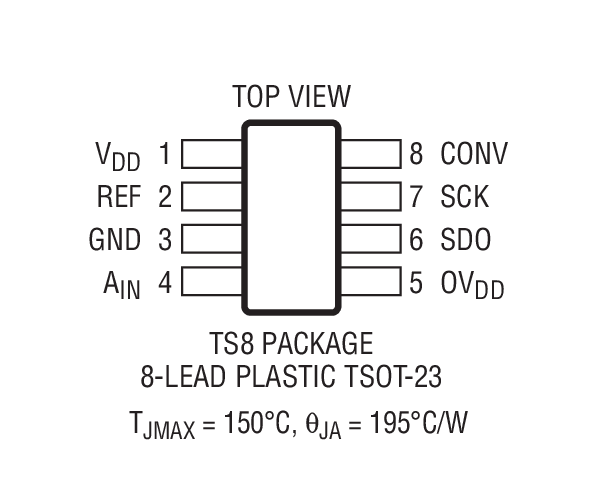

The LTC2313-14 is a 14-bit, 2.5Msps, serial sampling A/D converter that draws only 5mA from a single 3V or 5V supply. The LTC2313-14 contains an integrated low drift reference and reference buffer providing a low cost, high performance (20ppm/°C maximum) and space saving solution. The LTC2313-14 achieves outstanding AC performance of 77dB SINAD and –85dB THD while sampling at 2.5Msps. The extremely high sample rate-topower ratio makes the LTC2313-14 ideal for compact, low power, high speed systems. The supply current decreases at lower sampling rates as the device automatically enters nap mode after conversions.The LTC2313-14 has a high speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3V and 5V logic. The fast 2.5Msps throughput with no cycle latency makes the LTC2313-14 ideally suited for a wide variety of high speed applications.BitsLTC2313-1212LTC2313-1414ApplicationsCommunication SystemsHigh Speed Data AcquisitionHandheld Terminal InterfaceMedical ImagingUninterrupted Power SuppliesBattery Operated SystemsAutomotive

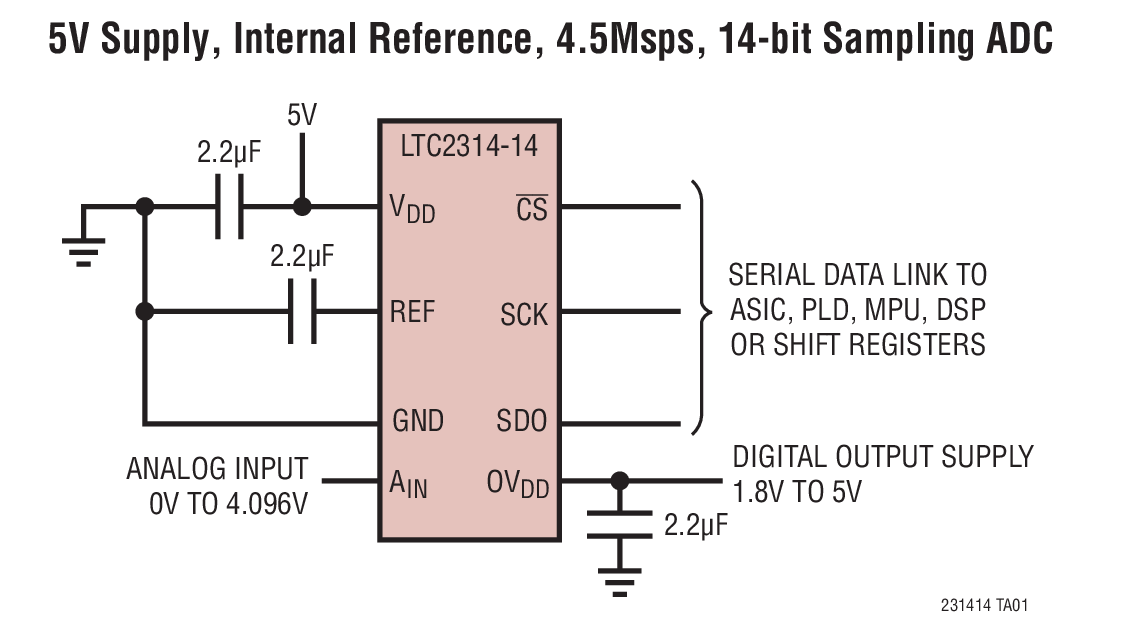

The LTC2314-14 is a 14-bit, 4.5Msps, serial sampling A/D converter that draws only 6.2mA from a wide range analog supply adjustable from 2.7V to 5.25V. The LTC2314-14 contains an integrated bandgap and reference buffer which provide a low cost, high performance (20ppm/°C max) and space saving applications solution. The LTC2314-14 achieves outstanding AC performance of 77dB SINAD and –85dB THD while sampling a 500kHz input frequency. The extremely high sample rate-to-power ratio makes the LTC2314-14 ideal for compact, low power, high speed systems. The LTC2314-14 also provides both nap and sleep modes for further optimization of the device power within a system.The LTC2314-14 has a high-speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3V and 5V logic. The fast 4.5Msps throughput makes the LTC2314-14 ideally suited for a wide variety of high speed applications.ApplicationsCommunication SystemsHigh Speed Data AcquisitionHandheld Terminal InterfaceMedical ImagingUninterrupted Power SuppliesBattery Operated SystemsAutomotive

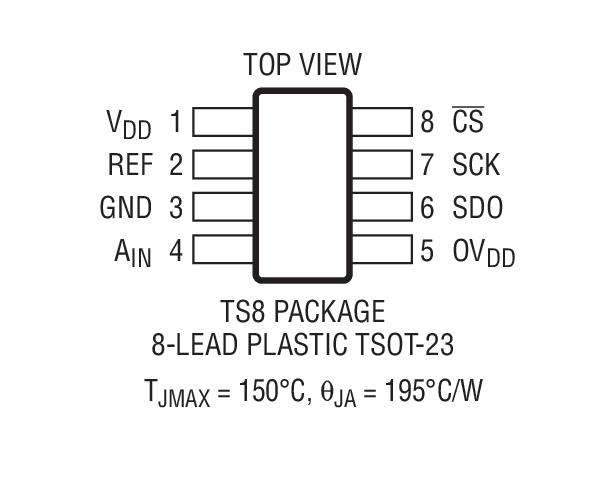

The LTC2315-12 is a 12-bit, 5Msps, serial sampling A/D converter that draws only 6.4mA from a wide range analog supply adjustable from 2.7V to 5.25V. The LTC2315-12 contains an integrated bandgap and reference buffer which provide a low cost, high performance (20ppm/°C max) and space saving applications solution. The LTC2315-12 achieves outstanding AC performance of 72.6dB SINAD and –84dB THD while sampling a 500kHz input frequency. The extremely high sample rate-to-power ratio makes the LTC2315-12 ideal for compact, low power, high speed systems. The LTC2315-12 also provides both nap and sleep modes for further optimization of the device power within a system.The LTC2315-12 has a high-speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3V and 5V logic. The fast 5Msps throughput makes the LTC2315-12 ideally suited for a wide variety of high speed applications.Complete 14-/12-Bit Pin-Compatible SAR ADC Family500ksps2.5Msps4.5Msps5Msps14-BitLTC2312-14LTC2313-14LTC2314-1412-BitLTC2312-12LTC2313-12LTC2315-12Power 3V/5V9mW/15mW14mW/25mW18mW/31mW19mW/32mWApplicationsCommunication SystemsHigh Speed Data AcquisitionHandheld Terminal InterfaceMedical ImagingUninterrupted Power SuppliesBattery Operated SystemsAutomotive

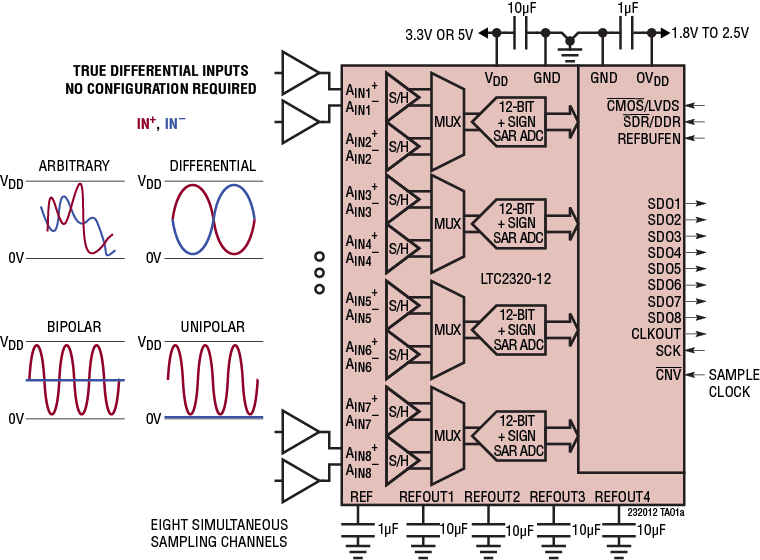

The LTC2320-12 is a low noise, high speed octal 12‑bit + sign successive approximation register (SAR) ADC with differential inputs and wide input common mode range. Operating from a single 3.3V or 5V supply, the LTC2320‑12 has an 8VP-Pdifferential input range, making it ideal for applications which require a wide dynamic range with high common mode rejection. The LTC2320-12 achieves ±0.25LSB INL typical, no missing codes at 12 bits and 77dB SNR.The LTC2320-12 has an onboard low drift (20ppm/°C max) 2.048V or 4.096V temperature-compensated reference. The LTC2320-12 also has a high speed SPI-compatible serial interface that supports CMOS or LVDS. The fast 1.5Msps per channel throughput with no latency makes the LTC2320-12 ideally suited for a wide variety of high speed applications. The LTC2320-12 dissipates only 20mW per channel and offers nap and sleep modes to reduce the power consumption to 26μW for further power savings during inactive periods.ApplicationsHigh Speed Data Acquisition SystemsCommunicationsRemote Data AcquisitionImagingOptical NetworkingAutomotiveMultiphase Motor Control
