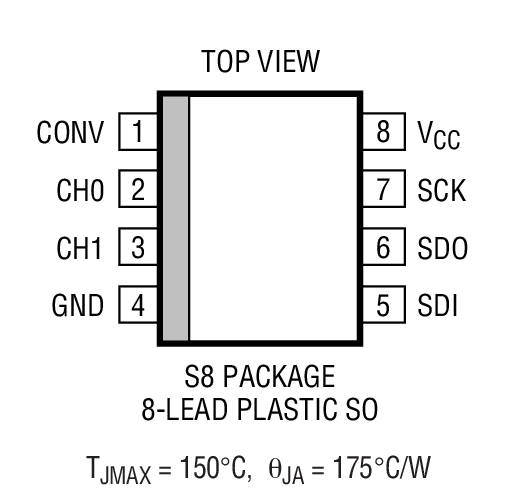

LTC1864LµPower, 3V, 16-Bit, 150ksps 1- and 2-Channel ADCs in MSOP | Integrated Circuits (ICs) | 13 | Active | The LTC1864L/LTC1865L are 16-bit A/D converters that are offered in MSOP and SO-8 packages and operate on a single 3V supply. At 150ksps, the supply current is only 450µA. The supply current drops at lower speeds because the LTC1864L/LTC1865L automatically power down between conversions. These 16-bit switched capacitor successive approximation ADCs include sample-and-holds. The LTC1864L has a differential analog input with an external reference pin. The LTC1865L offers a software-selectable 2-channel MUX and an external reference pin on the MSOP version.The 3-wire, serial I/O, small MSOP or SO-8 package and extremely high sample rate-to-power ratio make these ADCs ideal choices for compact, low power, high speed systems.These ADCs can be used in ratiometric applications or with external references. The high impedance analog inputs and the ability to operate with reduced spans down to 1V full scale allow direct connection to signal sources in many applications, eliminating the need for external gain stages.ApplicationsHigh Speed Data AcquisitionPortable or Compact InstrumentationLow Power Battery-Operated InstrumentationIsolated and/or Remote Data Acquisition |

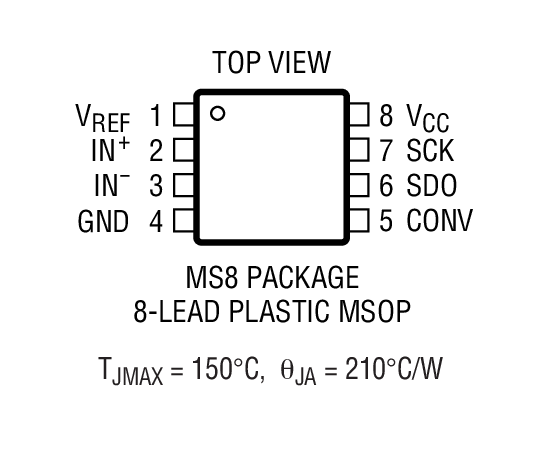

LTC1865LµPower, 3V, 16-Bit, 150ksps 1- and 2-Channel ADCs in MSOP | Integrated Circuits (ICs) | 14 | Active | The LTC1864L/LTC1865L are 16-bit A/D converters that are offered in MSOP and SO-8 packages and operate on a single 3V supply. At 150ksps, the supply current is only 450µA. The supply current drops at lower speeds because the LTC1864L/LTC1865L automatically power down between conversions. These 16-bit switched capacitor successive approximation ADCs include sample-and-holds. The LTC1864L has a differential analog input with an external reference pin. The LTC1865L offers a software-selectable 2-channel MUX and an external reference pin on the MSOP version.The 3-wire, serial I/O, small MSOP or SO-8 package and extremely high sample rate-to-power ratio make these ADCs ideal choices for compact, low power, high speed systems.These ADCs can be used in ratiometric applications or with external references. The high impedance analog inputs and the ability to operate with reduced spans down to 1V full scale allow direct connection to signal sources in many applications, eliminating the need for external gain stages.ApplicationsHigh Speed Data AcquisitionPortable or Compact InstrumentationLow Power Battery-Operated InstrumentationIsolated and/or Remote Data Acquisition |

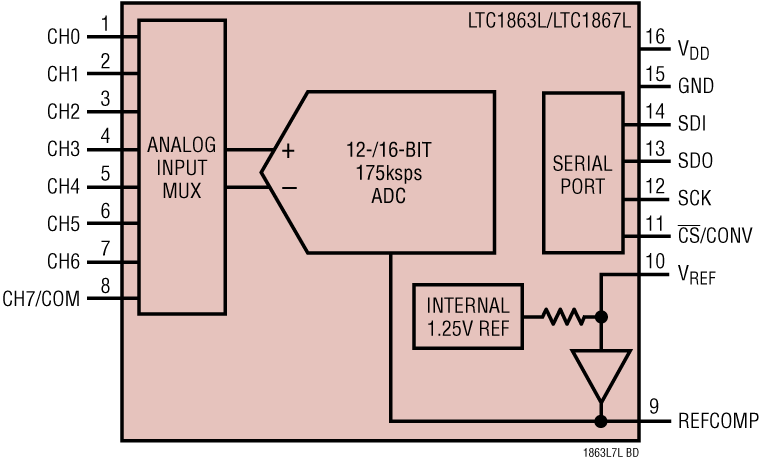

LTC1867LMicropower, 3V, 16-Bit, 8-Channel 175ksps ADCs | Integrated Circuits (ICs) | 14 | Active | The LTC1863/LTC1867 are pin-compatible, 8-channel 12-/16-bit A/D converters with serial I/O, and an internal reference. The ADCs typically draw only 1.3mA from a single 5V supply.The 8-channel input multiplexer can be configured for either single-ended or differential inputs and unipolar or bipolar conversions (or combinations thereof). The automatic nap and sleep modes benefit power sensitive applications.The LTC1867’s DC performance is outstanding with a ±2LSB INL specification and no missing codes over temperature. The signal-to-noise ratio (SNR) for the LTC1867 is typically 89dB, with the internal reference.Housed in a compact, narrow 16-pin SSOP package, the LTC1863/LTC1867 can be used in space-sensitive as well as low-power applications.ApplicationsIndustrial Process ControlHigh Speed Data AcquisitionBattery Operated SystemsMultiplexed Data Acquisition SystemsImaging Systems |
LTC1871-7Wide Input Range, No RSENSE™Current Mode Boost, Flyback and SEPIC Controller | Integrated Circuits (ICs) | 5 | Active | The LTC1871-1 is a wide input range, current mode, boost, flyback or SEPIC controller that drives an Nchannel power MOSFET and requires very few external components. It eliminates the need for a current sense resistor by utilizing the power MOSFET’s on-resistance, thereby maximizing efficiency. Higher output voltage applications are possible with the LTC1871-1 by connecting the SENSE pin to a resistor in the source of the power MOSFET.The IC’s operating frequency can be set with an external resistor over a 50kHz to 1MHz range, and can be synchronized to an external clock using the MODE/SYNC pin.The LTC1871-1 differs from the LTC1871 by having a lower pulse skip threshold, making it ideal for applications requiring constant frequency operation at light loads. The lower pulse skip threshold also helps maintain constant frequency operation in applications with a wide input voltage range. For applications requiring primary-to-secondary side isolation, please refer to the LTC1871 datasheet.The LTC1871-1 is available in the 10-lead MSOP package.Vin RangeINTVccFeaturesLTC18712.5V to 36V5.2V-LTC1871-12.5V to 36V5.2VLower Burst Mode Threshold (0.195V vs. 0.3V)LTC1871-76V to 36V7VDrives 6V Gate N-Channel MOSFETsLTC1871X2.5V to 36V5.2V175°C Junction Temp, 100% Tested at 175°CApplicationsTelecom Power SuppliesPortable Electronic Equipment |
LTC1872BConstant Frequency Current Mode Step-Up DC/DC Controller in ThinSOT | Integrated Circuits (ICs) | 3 | Active | The LTC1872B is a constant frequency current mode step-up DC/DC controller providing excellent AC and DC load and line regulation. The device incorporates an accurate undervoltage lockout feature that shuts down the LTC1872B when the input voltage falls below 2.0V.The LTC1872B provides a ±2.5% output voltage accuracy and consumes only 270µA of quiescent current. In shutdown, the device draws a mere 8µA.High constant operating frequency of 550kHz allows the use of a small external inductor. The constant frequency operation is maintained down to very light loads, resulting in less low frequency noise generation over a wide load current range.The LTC1872B is available in a 6-lead low profile (1mm) ThinSOT package. For a Burst Mode operation enabled version of the LTC1872B, please refer to the LTC1872 data sheet.Burst ModeLTC1872YesLTC1872BNoApplicationsOptical CommunicationsLithium-Ion-Powered ApplicationsCellular TelephonesWireless DevicesPortable ComputersScanners |

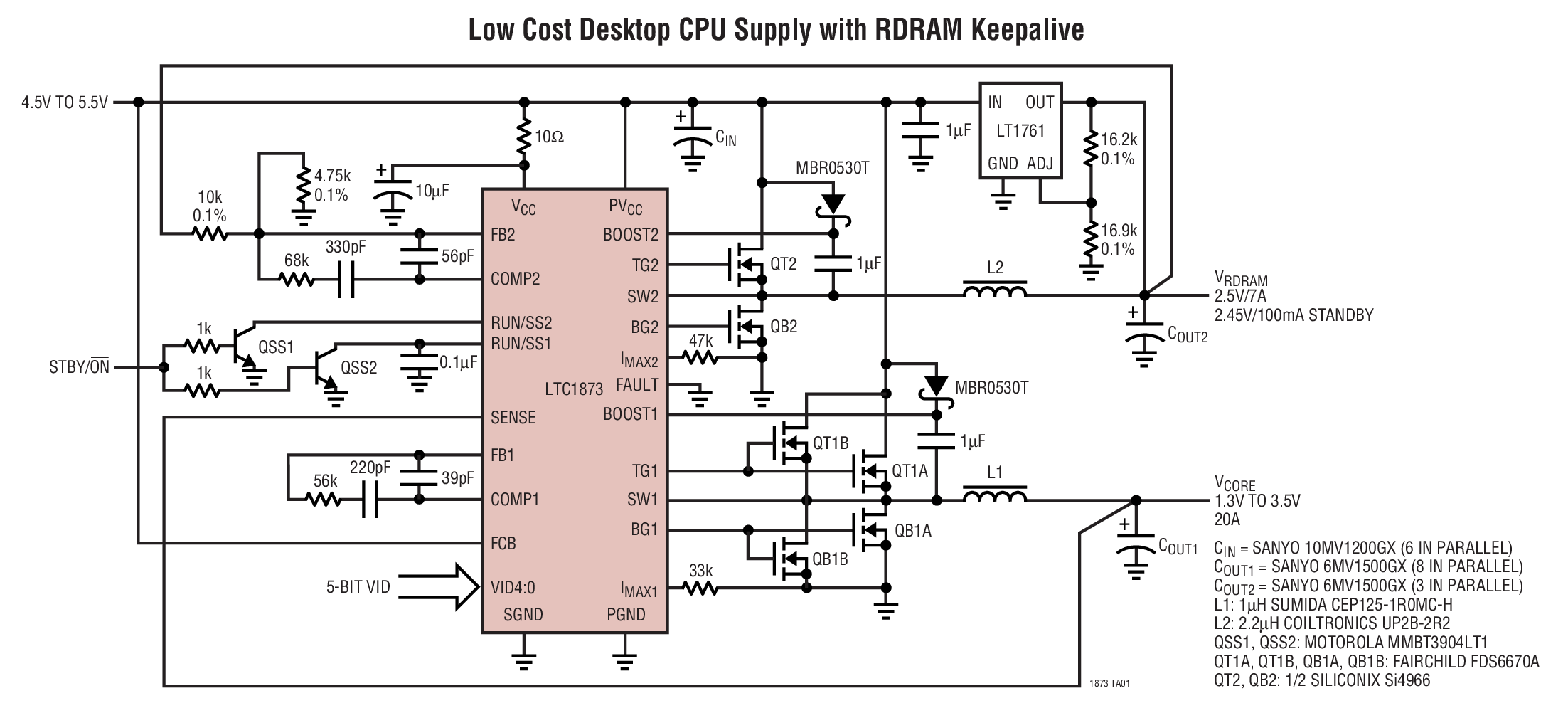

LTC1873Dual 550kHz Synchronous 2-Phase Switching Regulator Controller with 5-Bit VID | Voltage Regulators - DC DC Switching Controllers | 1 | Active | The LTC1873 is a dual switching regulator controller optimized for high efficiency with low input voltages. It includes two complete, on-chip, independent switching regulator controllers. Each is designed to drive a pair of external N-channel MOSFETs in a voltage mode feedback, synchronous buck configuration. The LTC1873 includes digital output voltage adjustment on side 1 that conforms to the Intel Desktop VID specification. A constant-frequency, true PWM design minimizes external component size and cost and optimizes load transient performance. The synchronous buck architecture automatically shifts to discontinuous and then to Burst Mode™operation as the output load decreases, ensuring maximum efficiency over a wide range of load currents.The LTC1873 features an onboard reference trimmed to 1% and delivers better than 1.5% regulation at the converter outputs over all combinations of line, load and temperature. Each channel can be enabled independently; with both channels disabled, the LTC1873 shuts down and supply current drops below 100µA.ApplicationsMicroprocessor Core and I/O SuppliesMultiple Logic Supply GeneratorHigh Efficiency Power ConversionChipset Power Supply |

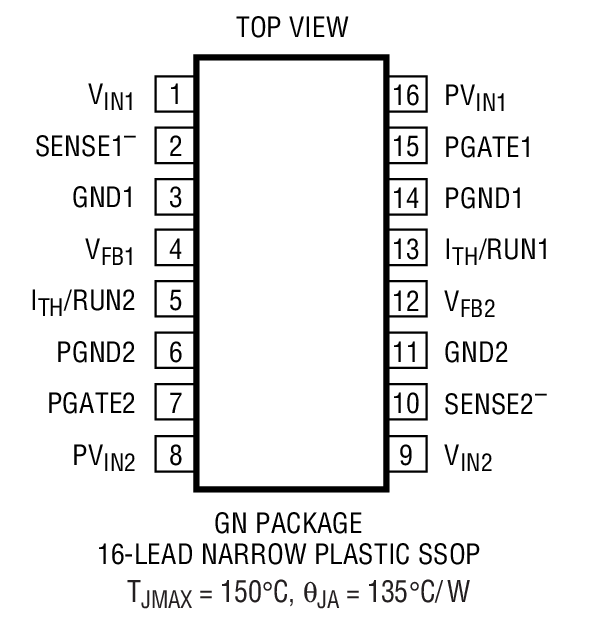

LTC1874Dual Constant Frequency Current Mode Step-Down DC/DC Controller | Integrated Circuits (ICs) | 1 | Active | The LTC1874 is a dual constant frequency current mode step-down DC/DC controller with excellent AC and DC load and line regulation. Each controller has an accurate undervoltage lockout that shuts down the individual controller when the input voltage falls below 2.0V.The LTC1874 boasts ±2.5% output voltage accuracy and consumes only 270µA of quiescent current per controller. The LTC1874 is configured with Burst Mode operation, which enhances efficiency at low output current for applications where efficiency is a prime consideration.To further maximize the life of a battery source, each external P-channel MOSFET is turned on continuously in dropout (100% duty cycle). In shutdown, each controller draws a mere 8µA. High constant operating frequency of 550kHz allows the use of small external inductors.The LTC1874 is available in a small footprint 16-lead narrow SSOP.Applications1- or 2-Cell Lithium-Ion-Powered ApplicationsDistributed 3.3V, 2.5V or 1.8V Power SystemsPersonal Information AppliancesPortable Computers |

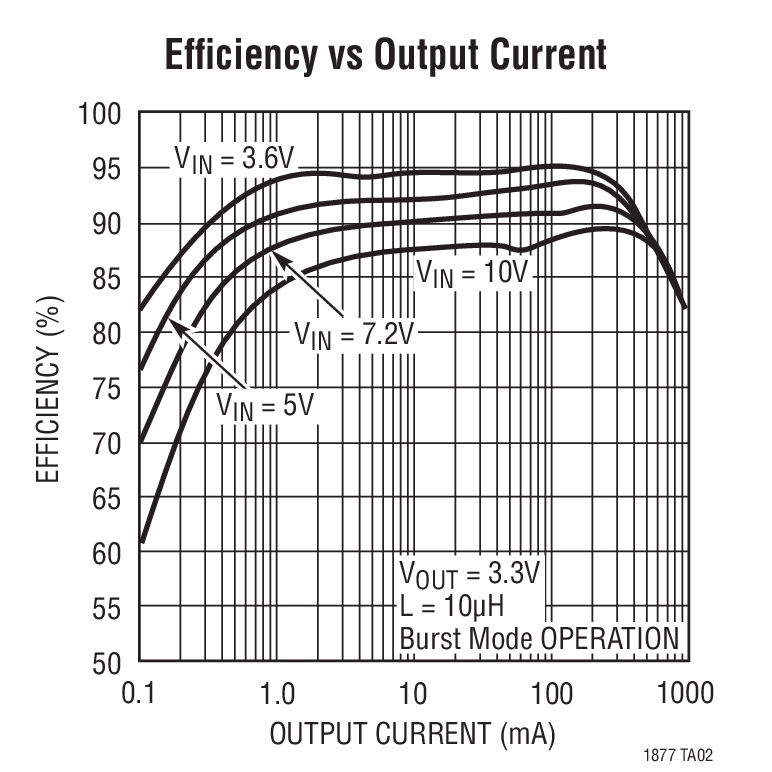

LTC1877High Efficiency Monolithic Synchronous Step-Down Regulator | Integrated Circuits (ICs) | 2 | Active | The LTC1877 s a high efficiency monolithic synchronous buck regulator using a constant-frequency, current mode architecture. Supply current during operation is only 10μA and drops to < 1μA in shutdown. The 2.65V to 10V input voltage range makes the LTC1877 ideally suited for both single and dual Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems.Switching frequency is internally set at 550kHz, allowing the use of small surface mount inductors and capacitors. For noise sensitive applications the LTC1877 can be externally synchronized from 400kHz to 700kHz. Burst Mode operation is inhibited during synchronization or when the SYNC/MODE pin is pulled low, preventing low frequency ripple from interfering with audio circuitry.The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.8V feedback reference voltage. The LTC1877 is available in a space saving 8-lead MSOP package. Lower input voltage applications (less than 7V abs max) should refer to the LTC1878 data sheet.ApplicationsCellular TelephonesWireless ModemsPersonal Information AppliancesPortable InstrumentsDistributed Power SystemsBattery-Powered Equipment |

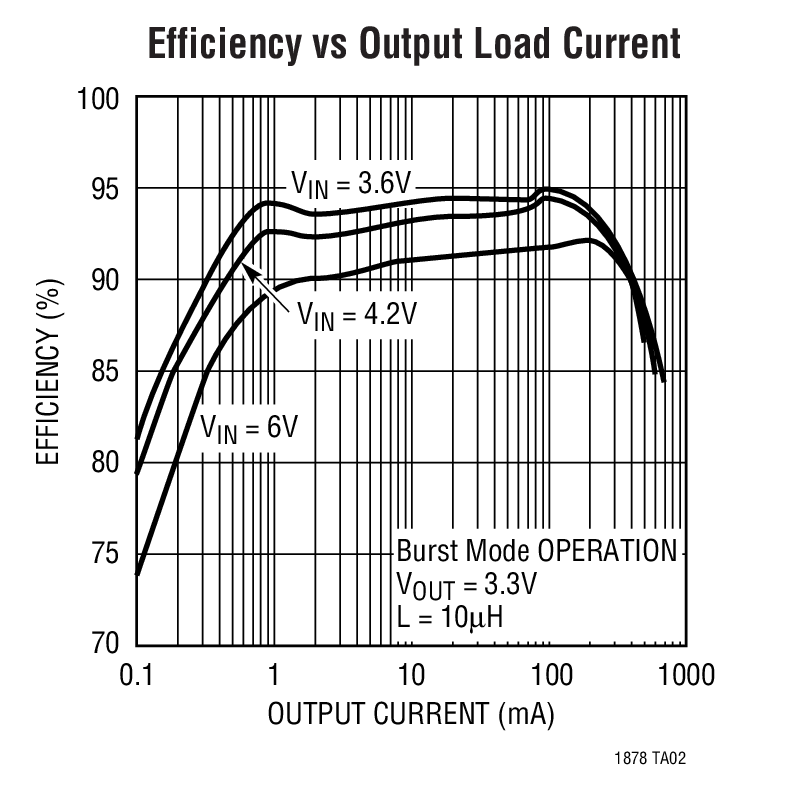

LTC1878High Efficiency Monolithic Synchronous Step-Down Regulator | Integrated Circuits (ICs) | 1 | Active | The LTC1878 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current during operation is only 10µA and drops to <1µA in shutdown. The 2.65V to 6V input voltage range makes the LTC1878 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems.Switching frequency is internally set at 550kHz, allowing the use of small surface mount inductors and capacitors. For noise sensitive applications the LTC1878 can be externally synchronized from 400kHz to 700kHz. Burst Mode operation is inhibited during synchronization or when the SYNC/MODE pin is pulled low, preventing low frequency ripple from interfering with audio circuitry.The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.8V feedback reference voltage. The LTC1878 is available in a space saving 8-lead MSOP package.For higher input voltage (11V abs max) applications, refer to the LTC1877 data sheet.ApplicationsCellular TelephonesWireless ModemsPersonal Information AppliancesPortable InstrumentsDistributed Power SystemsBattery-Powered Equipment |
LTC18791.2A Synchronous Step-Down Regulator with 15µA Quiescent Current | Integrated Circuits (ICs) | 1 | Active | The LTC1879 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Operating supply current is only 15µA with no load and drops to <1µA in shutdown. The input supply voltage range of 2.65V to 10V makes the LTC1879 ideally suited for both single and dual Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems.The switching frequency is internally set to 550kHz, allowing the use of small surface mount inductors and capacitors. For noise sensitive applications, the LTC1879 can be externally synchronized from 350kHz to 750kHz. Burst Mode operation is inhibited during synchronization or when the SYNC/MODE pin is pulled low.The internal synchronous rectifier switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with a 0.8V feedback reference voltage. The LTC1879 is available in a 16-lead SSOP package.ApplicationsCellular TelephonesPortable ComputersWireless Modems |
