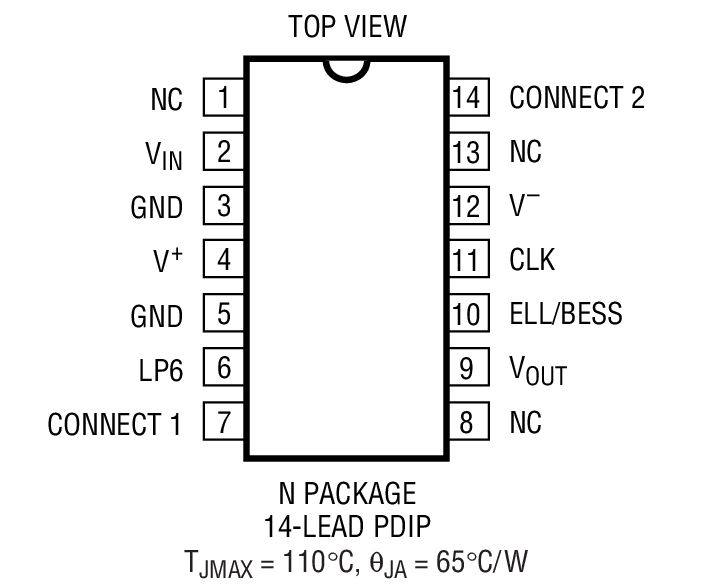

The LTC1164-6 is a monolithic 8th order elliptic lowpass filter featuring clock-tunable cutoff frequency and low power supply current. Low power operation is achieved without compromising noise or distortion performance. At ±5V supplies the LTC1164-6 uses only 4mA supply current while keeping wideband noise below 110µVRMS. With a single 5V supply, the LTC1164-6 can provide up to 10kHz cutoff frequency and 80dB signal-to-noise ratio while consuming only 2.5mA.The LTC1164-6 provides an elliptic lowpass rolloff with stopband attenuation of 64dB at 1.44 fCUTOFFand an fCLK-to- fCUTOFFratio of 100:1 (Pin10 to V–). For a ratio of 100:1, fCUTOFFcan be clock-tuned up to 10kHz. For a fCLK-to-fCUTOFFratio of 50:1 (Pin 10 to V+), the LTC1164-6 provides an elliptic lowpass filter with fCUTOFFfrequencies up to 20kHz. When Pin 10 is connected to ground, the LTC1164-6 approximates an 8th order linear phase response with 65dB attenuation at 4.5 f–3dBand fCLK/f–3dBratio of 160:1. The LTC1164-6 is pin compatible with the LTC1064-1.ApplicationsAntialiasing FiltersBattery-Operated InstrumentsTelecommunication Filters

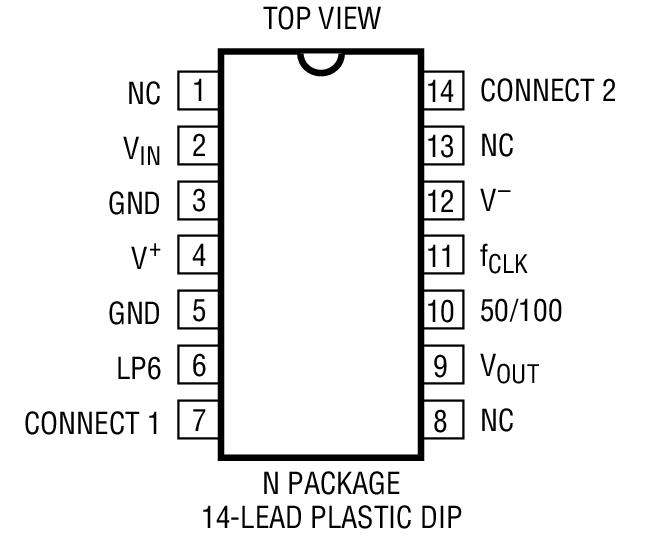

The LTC1164-7 is a low power, clock-tunable monolithic 8th order lowpass filter with linear passband phase and flat group delay. The amplitude response approximates a maximally flat passband and exhibits steeper roll-off than an equivalent 8th order Bessel filter. For instance, at twice the cutoff frequency the filter attains 34dB attenuation (vs12dB for Bessel), while at three times the cutoff frequency the filter attains 68dB attenuation (vs 30dB for Bessel). The cutoff frequency of the LTC1164-7 is tuned via an external TTL or CMOS clock.Low power is achieved without sacrificing dynamic range. With single 5V supply, the S/N + THD is up to 75dB. Optimum 91dB S/N is obtained with ±7.5V supplies.The clock-to-cutoff frequency ratio of the LTC1164-7 can be set to 50:1 (pin 10 to V+) or 100:1 (pin 10 to V–).When the filter operates at the clock-to-cutoff frequency ratio of 50:1, the input is double-sampled to lower the risk of aliasing.The LTC1164-7 is pin-compatible with the LTC1064-X series and LTC1264-7.ApplicationsData Communication FiltersTime Delay NetworksPhase Matched Filters

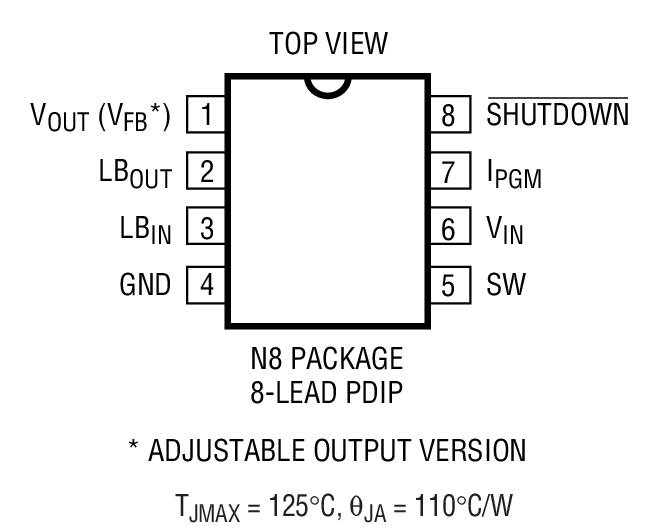

The LTC1174 is a simple current mode DC/DC converter ideally suited for 9V to 5V, 5V to 3.3V or 5V to –5V operation. With an internal 0.9Ω switch (at a supply voltage of 9V), the LTC1174 requires only four external components to construct a complete high efficiency DC/DC converter.Under a no load condition the LTC1174 draws only 130μA. In shutdown, it draws a mere 1μA making this converter ideal for current sensitive applications. In dropout, the internal P-channel MOSFET switch is turned on continuously allowing the user to maximize the life of the battery source.The maximum inductor current of the LTC1174 family is pin selectable to either 340mA or 600mA, optimizing efficiency for a wide range of applications. Operation up to 200kHz permits the use of small surface mount inductors and capacitors.For applications requiring higher output current or ultrahigh efficiency, see the LTC1148 data sheet.ApplicationsDistributed Power SystemsStep-Down ConvertersInverting ConvertersMemory Backup SupplyPortable InstrumentsBattery-Powered Equipment

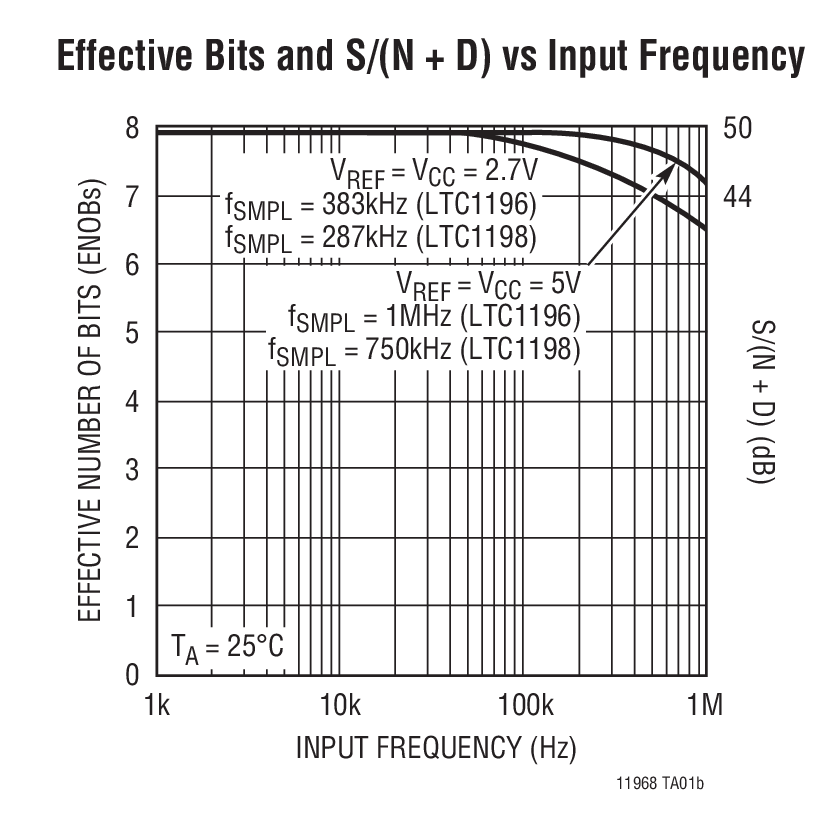

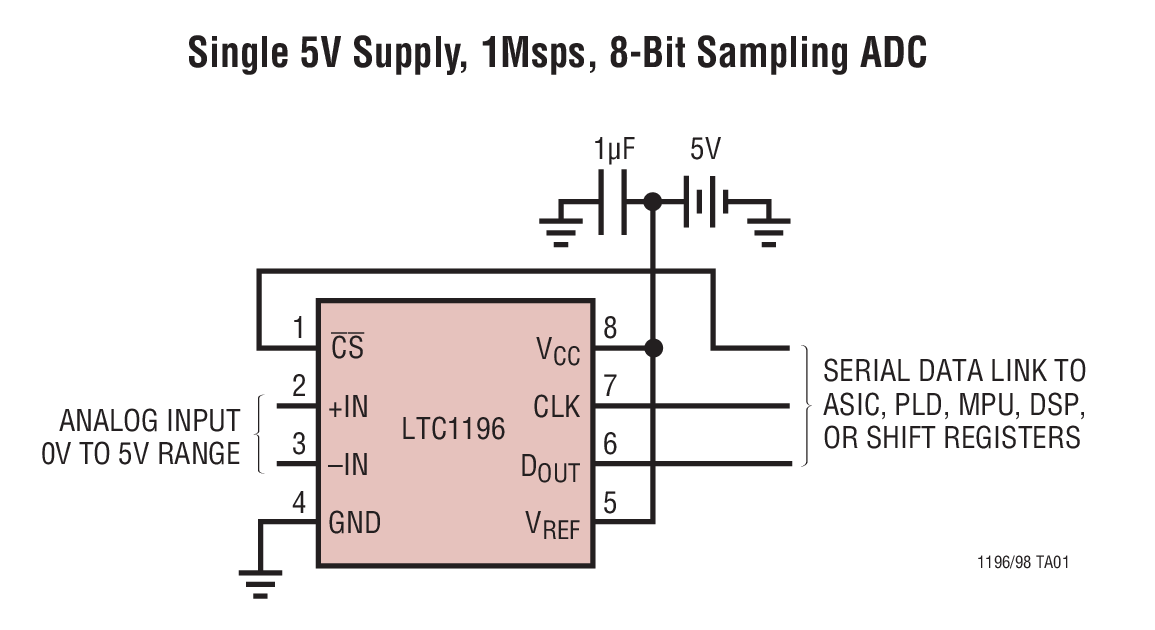

The LTC1196/LTC1198 are 600ns, 8-bit A/D converters with sampling rates up to 1MHz. They are offered in 8-pin SO packages and operate on 3V to 6V supplies. Power dissipation is only 10mW with a 3V supply or 50mW with a 5V supply. The LTC1198 automatically powers down to a typical supply current of 1nA whenever it is not performing conversions. These 8-bit switched-capacitor successive approximation ADCs include sample-and-holds. The LTC1196 has a differential analog input; the LTC1198 offers a software selectable 2-channel MUX.The 3-wire serial I/O, SO-8 packages, 3V operation and extremely high sample rate-to-power ratio make these ADCs an ideal choice for compact, high speed systems.These ADCs can be used in ratiometric applications or with external references. The high impedance analog inputs and the ability to operate with reduced spans below 1V full scale (LTC1196) allow direct connection to signal sources in many applications, eliminating the need for gain stages.The A grade devices are specified with total unadjusted error of ±1/2LSB maximum over temperature.ApplicationsHigh Speed Data AcquisitionDisk DrivesPortable or Compact InstrumentationLow Power or Battery-Operated Systems

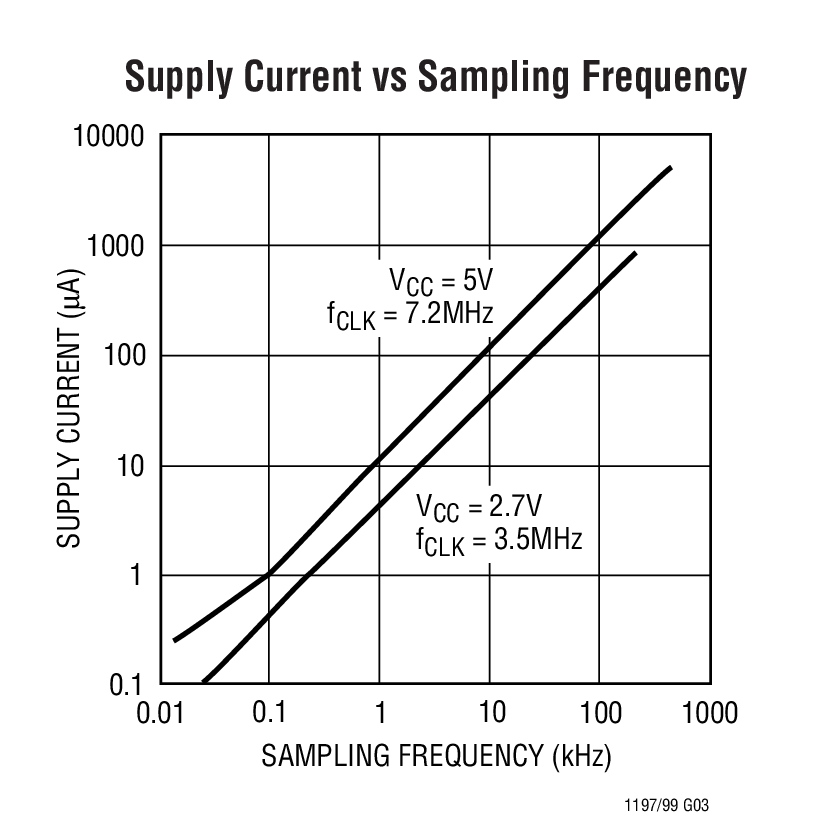

The LTC1197/LTC1197L/LTC1199/LTC1199L are 10-bit A/D converters with sampling rates up to 500kHz. They have 2.7V (L) and 5V versions and are offered in 8-pin MSOP and SO packages. Power dissipation is typically only 2.2mW at 2.7V (25mW at 5V) during full speed operation. The automatic power down reduces supply current linearly as sample rate is reduced. These 10-bit, switched-capacitor, successive approximation ADCs include a sample-and-hold. The LTC1197/LTC1197L have a differential analog input with an adjustable reference pin. The LTC1199/LTC1199L offer a software-selectable 2-channel MUX.The 3-wire serial I/O, MSOP and SO-8 packages, 2.7V operation and extremely high sample rate-to-power ration make these ADCs ideal choices for compact, low power high speed systems.These circuits can be used in ratiometric applications or with external references. The high impedance analog inputs and the ability to operate with reduced spans below 1V full scale (LTC1197/LTC1197L) allow direct connection to signal sources in may applications, eliminating the need for gain stages.ApplicationsHigh Speed Data AcquisitionPortable or Compact InstrumentationLow Power or Battery-Operated Instrumentation

The LTC1196/LTC1198 are 600ns, 8-bit A/D converters with sampling rates up to 1MHz. They are offered in 8-pin SO packages and operate on 3V to 6V supplies. Power dissipation is only 10mW with a 3V supply or 50mW with a 5V supply. The LTC1198 automatically powers down to a typical supply current of 1nA whenever it is not performing conversions. These 8-bit switched-capacitor successive approximation ADCs include sample-and-holds. The LTC1196 has a differential analog input; the LTC1198 offers a software selectable 2-channel MUX.The 3-wire serial I/O, SO-8 packages, 3V operation and extremely high sample rate-to-power ratio make these ADCs an ideal choice for compact, high speed systems.These ADCs can be used in ratiometric applications or with external references. The high impedance analog inputs and the ability to operate with reduced spans below 1V full scale (LTC1196) allow direct connection to signal sources in many applications, eliminating the need for gain stages.The A grade devices are specified with total unadjusted error of ±1/2LSB maximum over temperature.ApplicationsHigh Speed Data AcquisitionDisk DrivesPortable or Compact InstrumentationLow Power or Battery-Operated Systems

The LTC1197/LTC1197L/LTC1199/LTC1199L are 10-bit A/D converters with sampling rates up to 500kHz. They have 2.7V (L) and 5V versions and are offered in 8-pin MSOP and SO packages. Power dissipation is typically only 2.2mW at 2.7V (25mW at 5V) during full speed operation. The automatic power down reduces supply current linearly as sample rate is reduced. These 10-bit, switched-capacitor, successive approximation ADCs include a sample-and-hold. The LTC1197/LTC1197L have a differential analog input with an adjustable reference pin. The LTC1199/LTC1199L offer a software-selectable 2-channel MUX.The 3-wire serial I/O, MSOP and SO-8 packages, 2.7V operation and extremely high sample rate-to-power ration make these ADCs ideal choices for compact, low power high speed systems.These circuits can be used in ratiometric applications or with external references. The high impedance analog inputs and the ability to operate with reduced spans below 1V full scale (LTC1197/LTC1197L) allow direct connection to signal sources in may applications, eliminating the need for gain stages.ApplicationsHigh Speed Data AcquisitionPortable or Compact InstrumentationLow Power or Battery-Operated Instrumentation

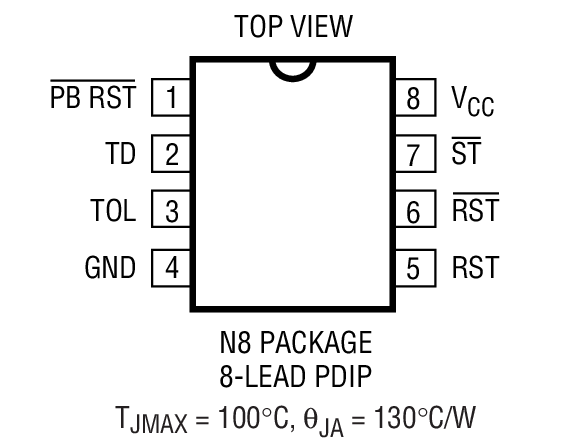

The LTC1232 provides power supply monitoring, watchdog timing and external reset for microprocessor systems. A precise internal voltage reference and comparator circuit monitor the power supply line. When an out-of-tolerance condition occurs, the reset outputs are forced to active states. TheRSToutput is guaranteed to remain logic low even with VCCas low as 1V.The LTC1232 has an internal watchdog timer which forces the reset outputs to active states when theStrobeinput is not forced low prior to a preset time-out period. The watchdog timing can be set to operate on time-out periods of typically 150ms, 600ms or 1.2 seconds.The LTC1232 performs push-button reset control. The LTC1232 debounces the push-button input and guarantees an active reset pulse width of 250ms minimum.ApplicationsCritical µP Power MonitoringIntelligent InstrumentsComputers and ControllersAutomotive Systems
