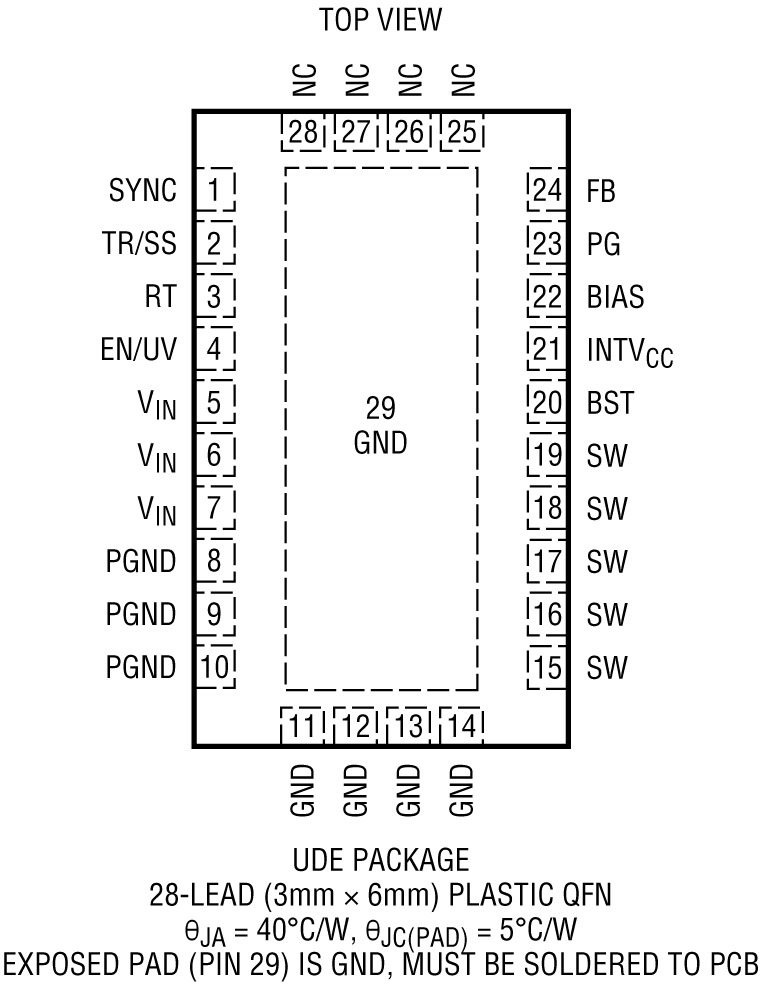

LT861242V, 6A Synchronous Step-Down Regulator with 3μA Quiescent Current | Evaluation Boards | 1 | Active | The LT8612 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 3μA of quiescent current. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components. Low ripple Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mVP-P. A SYNC pin allows synchronization to an external clock. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VINundervoltage lockout or to shut down the LT8612 reducing the input supply current to 1μA. A capacitor on the TR/SS pin programs the output voltage ramp rate during start-up. The PG flag signals when VOUTis within ±9% of the programmed output voltage as well as fault conditions. The LT8612 is available in a small 3mm × 6mm 28-lead QFN package with exposed pad for low thermal resistance.APPLICATIONSAutomotive and Industrial SuppliesGeneral Purpose Step-DownGSM Power Supplies |

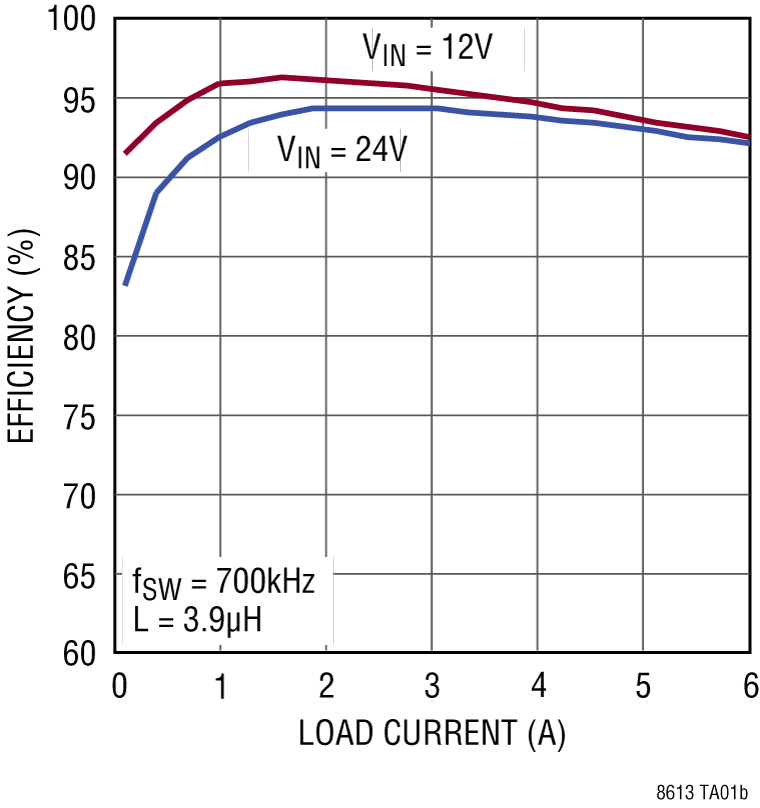

LT861342V, 6A Synchronous Step-Down Regulator with Current Sense and 3μA Quiescent Current | Power Management (PMIC) | 2 | Active | The LT8613 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 3µA of quiescent current. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components. The built-in current sense amplifier with monitor and control pins allows accurate input or output current regulation and limiting. Low ripple Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mVP-P. A SYNC pin allows synchronization to an external clock. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VINundervoltage lockout or to shut down the LT8613 reducing the input supply current to 1µA. A capacitor on the TR/SS pin programs the output voltage ramp rate during start-up. The PG flag signals when VOUTis within ±9% of the programmed output voltage as well as fault conditions. The LT8613 is available in a small 28-lead 3mm × 6mm QFN package with exposed pad for low thermal resistance.ApplicationsAutomotive and Industrial SuppliesGeneral Purpose Step-DownCCCV Power Supplies |

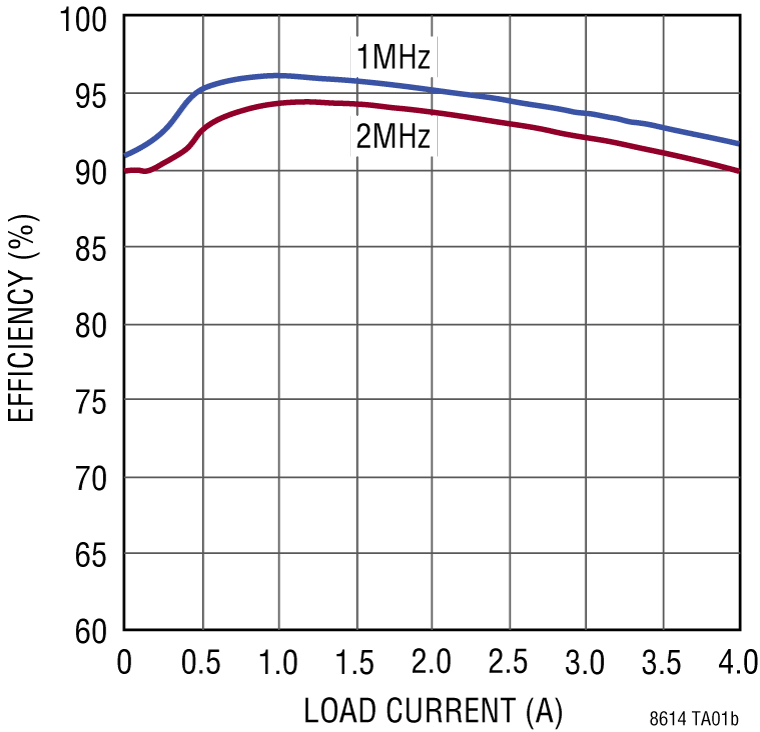

LT861442V, 4A Synchronous Step-Down Silent Switcher with 2.5μA Quiescent Current | Power Management (PMIC) | 3 | Active | The LT8614 step-down regulator features Silent Switcher architecture designed to minimize EMI emissions while delivering high efficiency at frequencies up to 3MHz. Assembled in a 3mm × 4mm QFN, the monolithic construction with integrated power switches and inclusion of all necessary circuitry yields a solution with a minimal PCB footprint. An ultralow 2.5μA quiescent current—with the output in full regulation— enables applications requiring highest efficiency at very small load currents. Transient response remains excellent and output voltage ripple is below 10mVP-Pat any load, from zero to full current.The LT8614 allows high VINto low VOUTconversion at high frequency with a fast minimum top switch on-time of 30ns. Operation is safe in overload even with a saturated inductor.Essential features are included and easy to use: An open-drain PG pin signals when the output is in regulation. The SYNC pin allows clock synchronization and choice of Burst Mode operation or pulse-skipping mode. Soft-start and tracking functionality is accessed via the TR/SS pin. An accurate enable threshold can be set using the EN/UV pin and a resistor at the RT pin programs switch frequency.ApplicationsAutomotive and Industrial SuppliesGeneral Purpose Step-DownGSM Power Supplies |

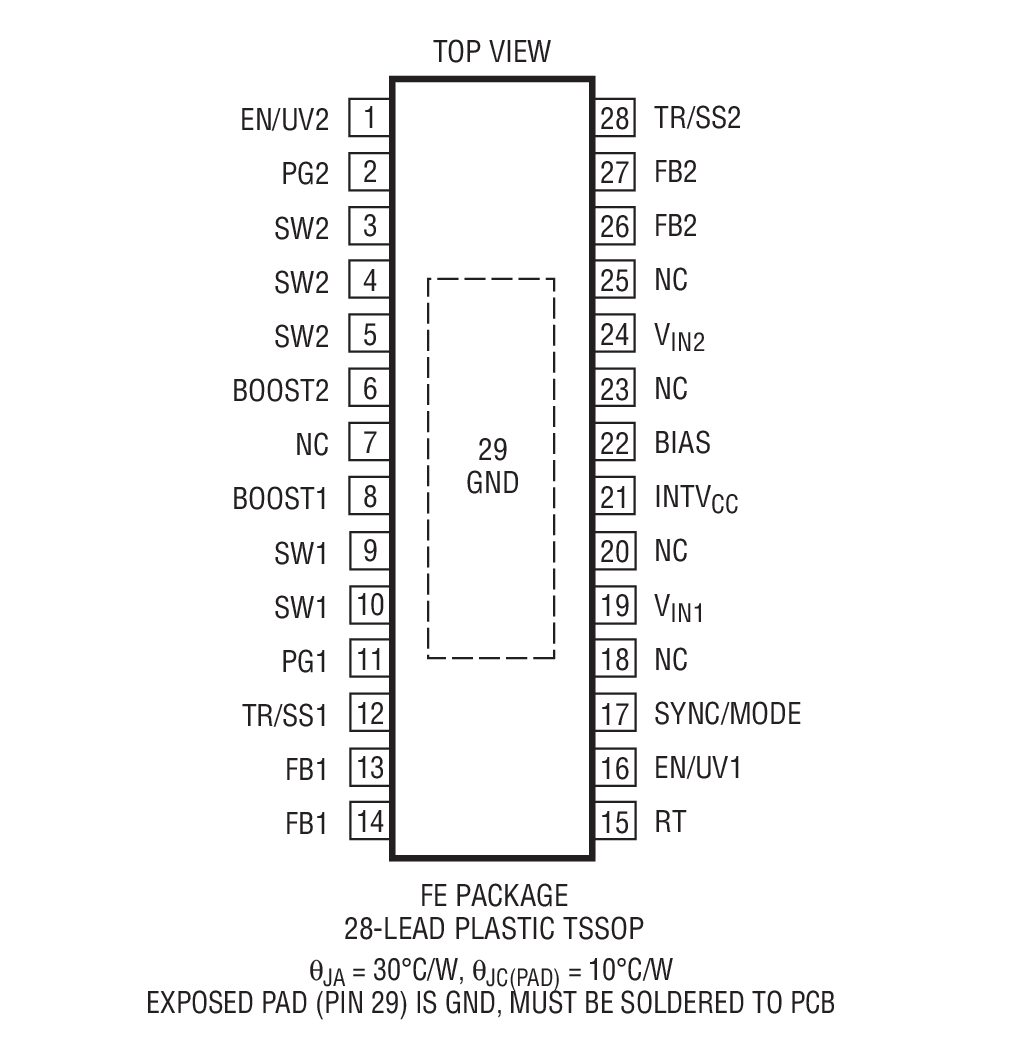

LT8616Dual 42V Synchronous Monolithic Step-Down Regulator with 6.5μA Quiescent Current | Voltage Regulators - DC DC Switching Regulators | 3 | Active | The LT8616 is a high efficiency, high speed, dual synchronous monolithic step-down switching regulator that consumes only 6.5μA of quiescent current with both channels enabled. Both channels contain all switches and necessary circuitry to minimize the need for external components. Low ripple Burst Mode operation enables high efficiency down to very low output currents while minimizing output ripple. A SYNC pin allows synchronization to an external clock. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The enable pins have accurate 1V thresholds and can be used to program undervoltage lockout. Capacitors on the TR/SS pins programs the output voltage ramp rate during startup while the PG pins signal when each output is within 10% of the programmed output voltage. The LT8616 is available in a TSSOP package for high reliability.ApplicationsAutomotive and Industrial SuppliesGeneral Purpose Step-Down |

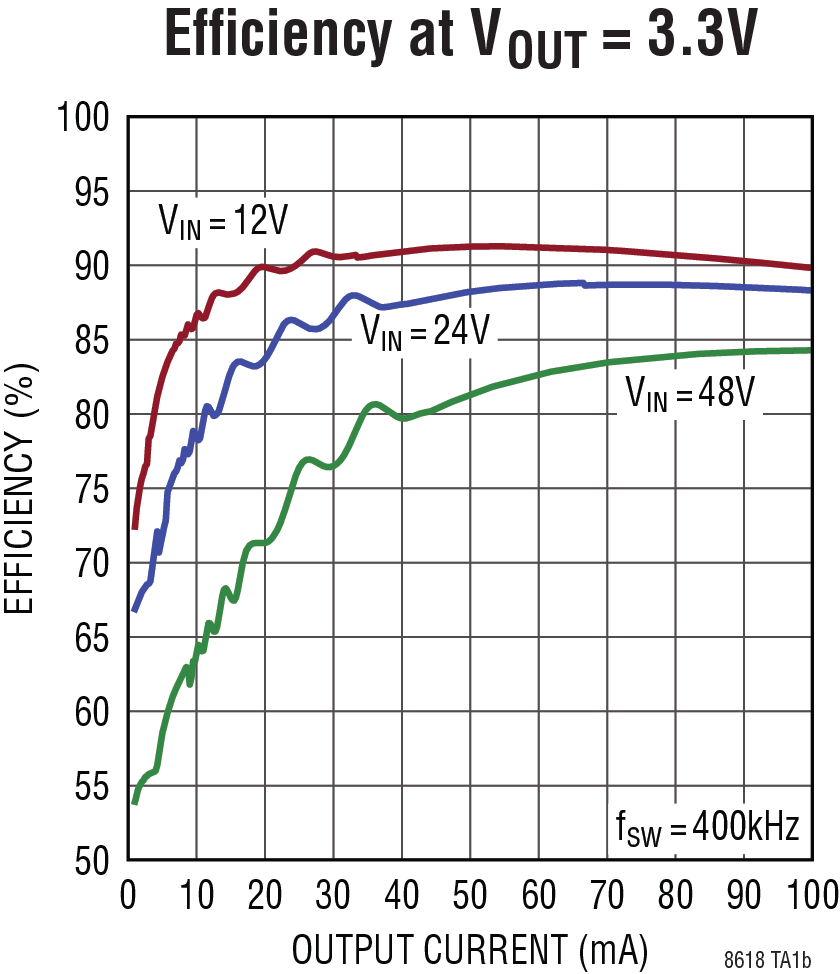

| Integrated Circuits (ICs) | 3 | Active | The LT8618 family are compact, high speed synchronous monolithic step-down switching regulators that deliver up to 100mA to the output with high efficiency at a constant frequency, even up to 2.2MHz. They accept a wide input voltage range up to 65V (transients only, 60V for continuous operation), and consume only 2.5μA of quiescent current when operating in Burst Mode. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components.The LT8618C includes BST and INTVCCceramic capacitors for a more compact solution while having SYNC/MODE and HYST pins. The SYNC/MODE pin selects the regulator’s operation between forced continuous mode, for predictive interference in sampling systems, Burst Mode, for increased efficiency at light loads or spread spectrum for Low EMI. It also allows synchronization to an external clock to further increase signal to noise ratio in high-resolution acquisition systems.A PG flag signals when VOUTis within ±7.5% of the programmed output voltage and when in fault conditions. Thermal shutdown provides additional protection.PACKAGESYNC/HYST150°C GRADEINTERNAL CAPSFB RESISTORSLT8618DFNNoYesNoExternalLT8618-3.3DFNNoYesNoInternalLT8618CLQFNYesNoYesExternalApplicationsIndustrial SensorsIndustrial Internet of Things4mA to 20mA Current LoopsFlow MetersAutomotive Housekeeping Supplies |

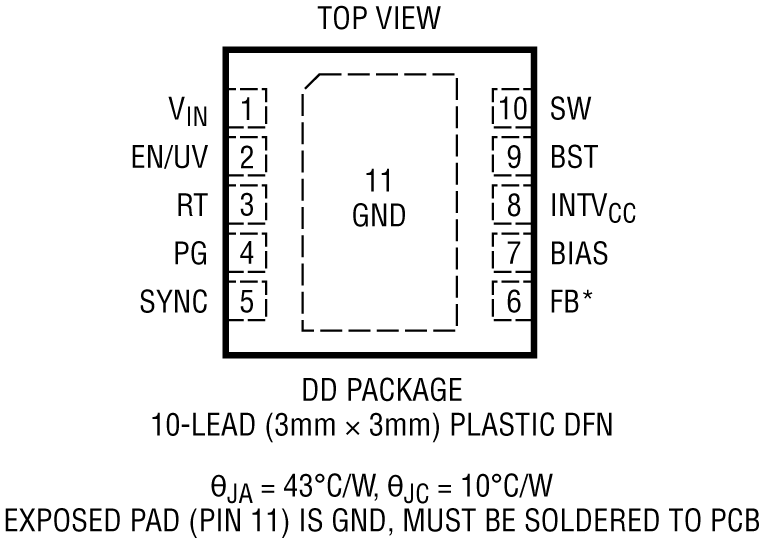

LT8619LT8619-560V, 1.2A Synchronous Monolithic Buck Regulator with 6μA Quiescent Current | PMIC | 4 | Active | The LT8619 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 6μA of quiescent current. The LT8619 can deliver 1.2A of continuous current. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components. Low ripple Burst Mode®operation enables high efficiency down to very low output currents while keeping the output ripple to 10mVP-P. A SYNC pin allows forced continuous mode operation synchronized to an external clock. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VINundervoltage lockout or to shut down the LT8619, reducing the input supply current to below 0.6μA. The PG flag signals when VOUTis within ±7.5% of the programmed output voltage. The LT8619 is available in a small 16-lead MSOP and 10-lead 3mm × 3mm DFN packages with exposed pad for low thermal resistance.APPLICATIONS12V Automotive Systems12V and 24V Commercial Vehicles48V Electric and Hybrid VehiclesIndustrial Supplies |

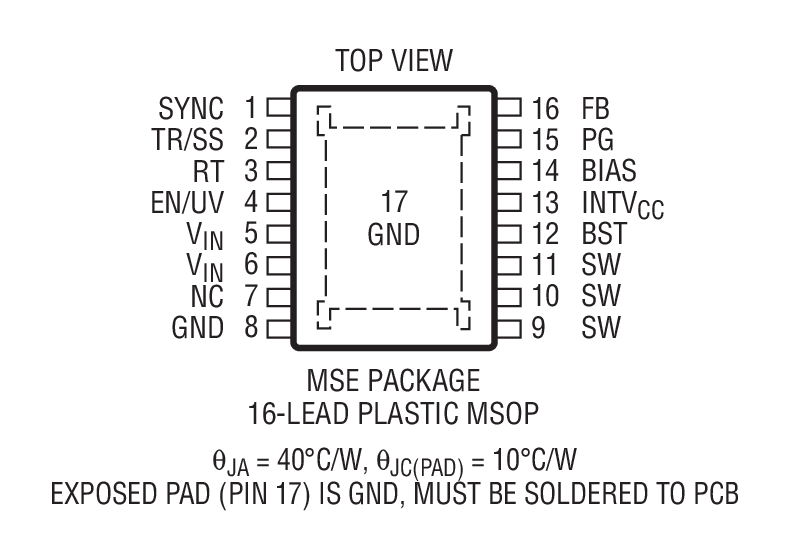

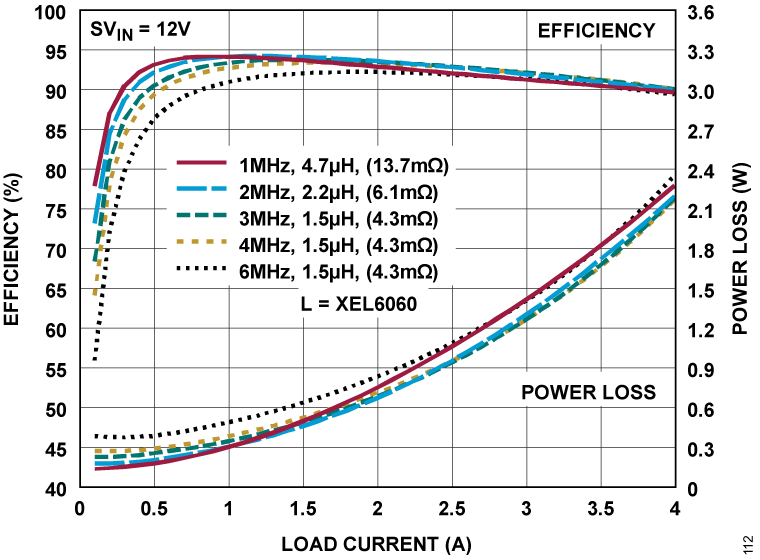

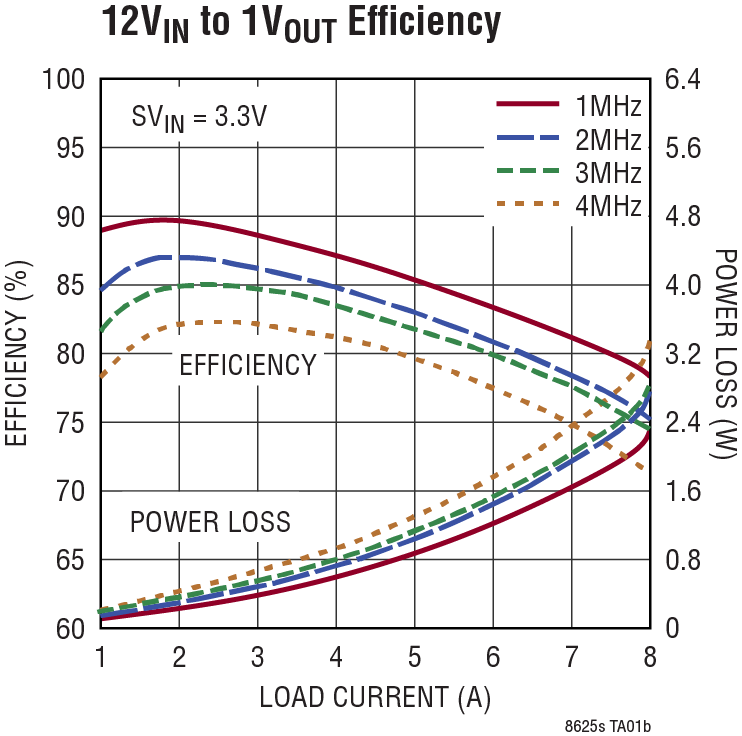

LT862065V, 2A Synchronous Step-Down Regulator with 2.5μA Quiescent Current | PMIC | 5 | Active | The LT8620 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that accepts a wide input voltage range up to 65V, and consumes only 2.5μA of quiescent current. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components. Low ripple Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mVP-P. A SYNC pin allows synchronization to an external clock. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VINundervoltage lockout or to shut down the LT8620 reducing the input supply current to 1μA. A capacitor on the TR/SS pin programs the output voltage ramp rate during start-up. The PG flag signals when VOUTis within ±9% of the programmed output voltage as well as fault conditions. The LT8620 is available in small 16-Lead MSOP and 3mm × 5mm QFN packages with exposed pads for low thermal resistance.ApplicationsAutomotive and Industrial SuppliesGeneral Purpose Step-DownGSM Power Supplies |
LT8622S18V, 2A Step-Down Silent Switcher 3 with Ultralow Noise Reference | Integrated Circuits (ICs) | 2 | Active | The LT®8622S/LT®8624Ssynchronous step-down regulator features third-generation Silent Switcher technology, which is uniquely designed to combine an ultralow noise reference with Silent Switcher architecture in order to achieve both high efficiency and excellent wideband noise performance.The innovative ultralow-noise architecture provides exceptional low-frequency (0.1Hz to 100kHz) output noise performance in a switching regulator. The output voltage can be programmed with a single resistor, resulting in virtually constant output noise independent of output voltage. Silent Switcher architecture minimizes EMI emissions while delivering high efficiency at high switching frequencies.The LT8622S/LT8624S is ideal for high-current, noise- sensitive applications that benefit from the high efficiency of a synchronous switching regulator. |
LT8624S18V, 4A Step-Down Silent Switcher 3 with Ultralow Noise Reference | Voltage Regulators - DC DC Switching Regulators | 1 | Active | TheLT®8622S/LT®8624S synchronous step-down regulator features third-generation Silent Switcher technology, which is uniquely designed to combine an ultralow noise reference with Silent Switcher architecture in order to achieve both high efficiency and excellent wideband noise performance.The innovative ultralow-noise architecture provides exceptional low-frequency (0.1Hz to 100kHz) output noise performance in a switching regulator. The output voltage can be programmed with a single resistor, resulting in virtually constant output noise independent of output voltage. Silent Switcher architecture minimizes EMI emissions while delivering high efficiency at high switching frequencies.The LT8622S/LT8624S is ideal for high-current, noise- sensitive applications that benefit from the high efficiency of a synchronous switching regulator. |
LT8625S18V/8A Step-Down Silent Switcher 3 with Ultralow Noise Reference | Evaluation Boards | 2 | Active | The LT8625S synchronous step-down regulator features third-generation Silent Switcher technology which is uniquely designed to combine an ultralow noise reference with Silent Switcher architecture in order to achieve both high efficiency and excellent wideband noise performance.The innovative ultralow noise architecture provides exceptional low frequency (0.1Hz to 100kHz) output noise performance in a switching regulator. The output voltage can be programmed with a single resistor, resulting in virtually constant output noise independent of output voltage.Silent Switcher architecture minimizes EMI emissions while delivering high efficiency at high switching frequencies.The LT8625S is ideal for high current, noise sensitive applications which benefit from the high efficiency of a synchronous switching regulator.ApplicationsRF Power Suppliers: PLLs, VCOs, Mixers, LNAs, PAsHigh Speed/High Precision ADCs/DACsLow Noise Instrumentation |
