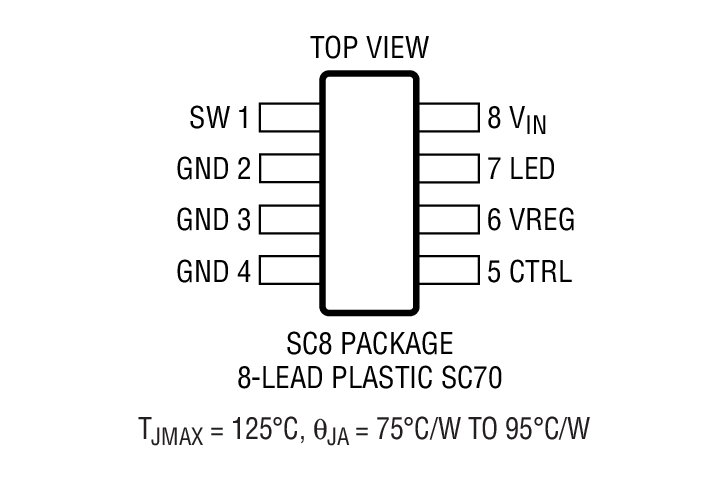

LT359048V Buck Mode LED Driver in SC70 and 2mm × 2mm DFN | Power Management (PMIC) | 3 | Active | The LT3590 is a fixed frequency buck mode converter specifically designed to drive up to 10 LEDs in series from a 48V DC source. Series connection of the LEDs provides identical LED currents of up to 50mA, resulting in uniform brightness and eliminating the need for ballast resistors. A fixed frequency, current mode architecture results in stable operation over a wide range of input voltage and output voltage.The high switching frequency of 850kHz permits the use of tiny, low profile inductors and capacitors. A single pin performs both shutdown and accurate LED dimming control. The power switch, Schottky diode and control circuitry are all contained inside a space saving SC70 package or 2mm × 2mm DFN package to allow a small converter footprint and lower parts cost.ApplicationsLED Fixed SignageTraffic SignsNeon Sign Replacement |

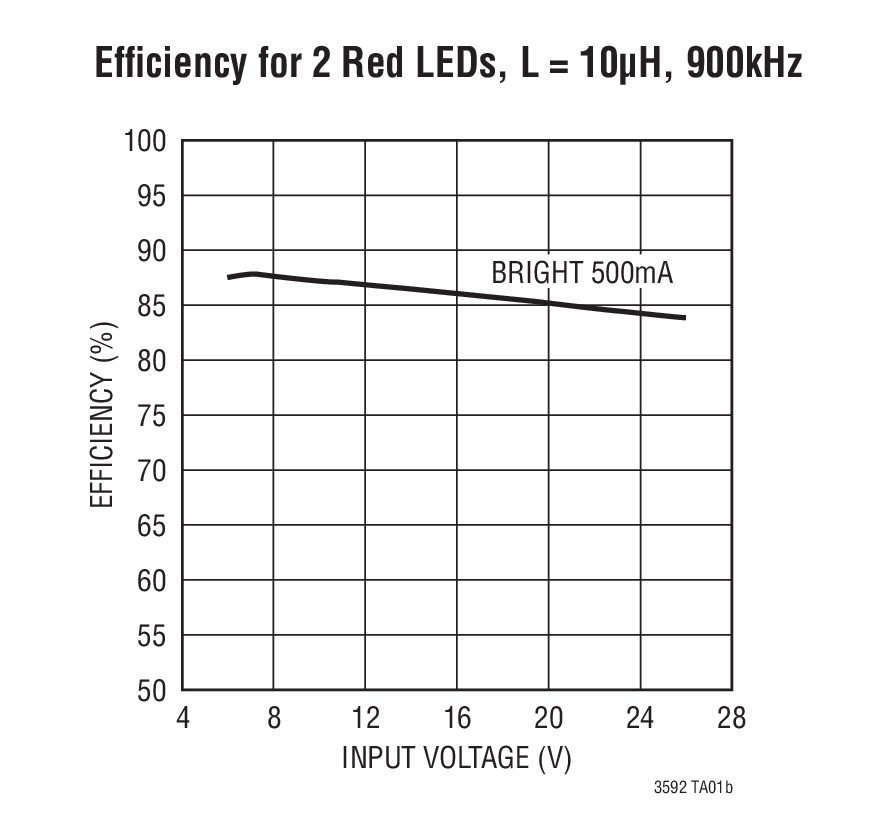

LT3592500mA Wide Input Voltage Range Step-Down LED Driver with 10:1 Dimming | Power Management (PMIC) | 2 | Active | The LT3592 is a fixed frequency step-down DC/DC converter designed to operate as a constant-current source. An external sense resistor monitors the output current allowing accurate current regulation, ideal for driving high current LEDs. The output current can be dimmed by a factor of 10 using an external signal for nighttime brake lights.The high switching frequency offers several advantages by permitting the use of a small inductor and small ceramic capacitors. Small components combined with the LT3592’s 10-pin DFN leadless surface mount package save space and cost versus alternative solutions. The constant switching frequency combined with low-impedance ceramic capacitors result in low, predictable output ripple.A wide input voltage range of 3.6V to 36V makes the LT3592 useful in a variety of applications. Current mode PWM architecture provides fast transient response and cycle-by-cycle current limiting. Thermal shutdown provides additional protection.ApplicationsAutomotive Signal LightingIndustrial LightingConstant-Current, Constant Voltage Supplies |

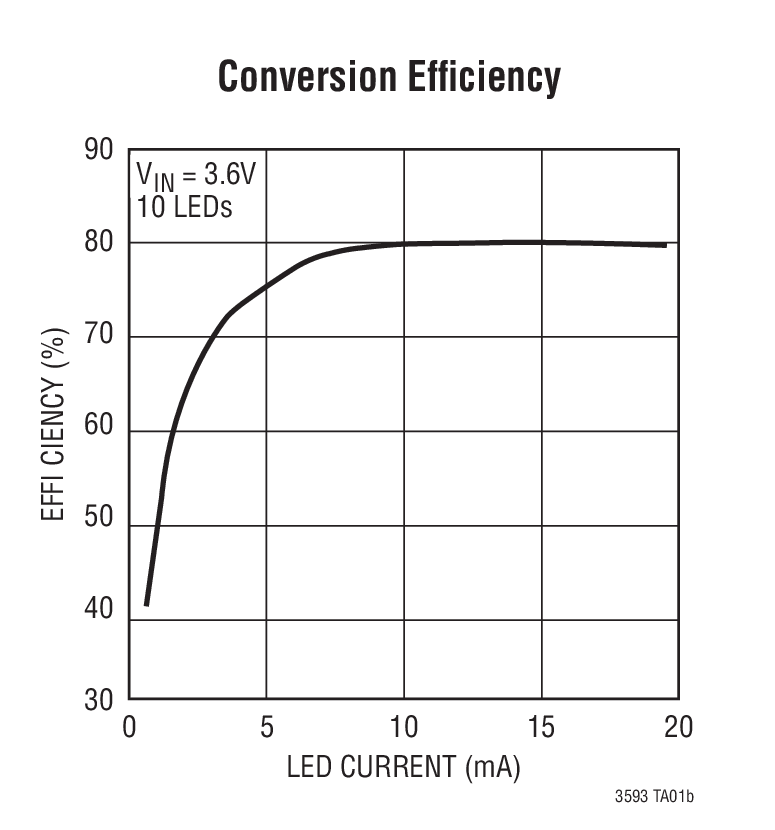

LT35931MHz White LED Driver with Output Disconnect and One Pin Current Programming | LED Drivers | 1 | Active | The LT3593 is a step-up DC/DC converter designed to drive up to ten white LEDs in series from a Li-Ion cell. Series connection of the LEDs provides identical LED currents and eliminates the need for ballast resistors. The device features a unique high side LED current sense that enables the part to function as a "one wire current source" where the low side of the LED string can be returned to ground anywhere.Additional features include output disconnect in shutdown, open LED protection and 1-pin shutdown/LED current control. The CTRL pin is toggled to adjust the LED current via an internal counter and a 5-bit DAC.The LT3593 switches at 1MHz, allowing the use of tiny external components. Constant frequency switching results in low input noise and a small output capacitor. The LT3593 is available in the 6-lead DFN (2mm × 2mm) as well as the 6-lead SOT-23 packages.ApplicationsCell PhonesDigital CamerasPDAs, Handheld ComputersMP3 PlayersGPS Receivers |

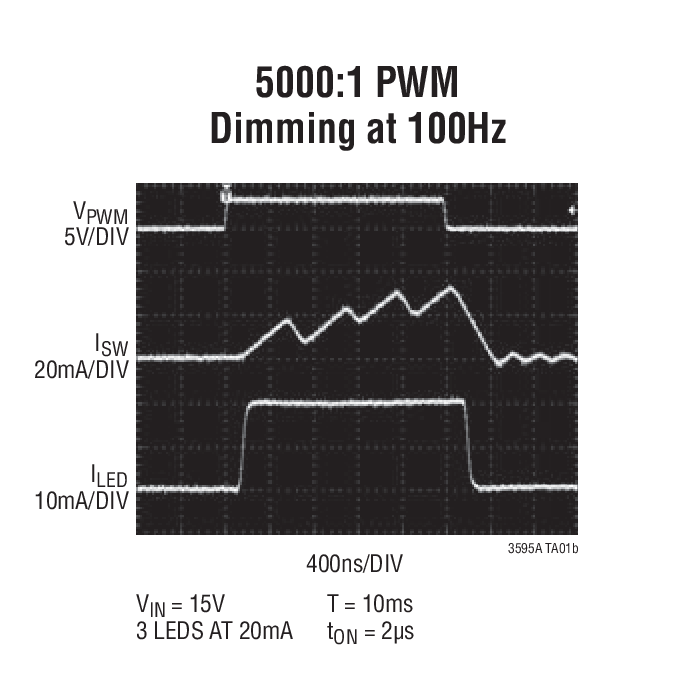

LT3595A16 Channel Buck Mode LED Driver | LED Drivers | 1 | Active | The LT3595A is a high performance LED Driver designed to drive sixteen independent channels of up to 10 LEDs at currents up to 50mA. Series connection of the LEDs provides identical LED currents resulting in uniform brightness. Power switches, Schottky diodes, and compensation components are all internal, providing a small converter footprint and lower component cost. The high 2MHz switching frequency permits the use of tiny, low profile inductors and capacitors. A fixed frequency, current mode architecture results in stable operation over a wide range of supply and output voltage.A single external resistor sets the LED current for all sixteen channels, and dimming is then controlled for each channel by pulse width modulating the individual PWM pins. LED current accuracy is 7%, channel-to-channel current matching is ±4% and the PWM dimming range is 5000:1. The part is available in a 5mm × 9mm × 0.75mm 56-pin QFN package.ApplicationsLED Video BillboardsLCD TelevisionsStadium and Advertising Displays |

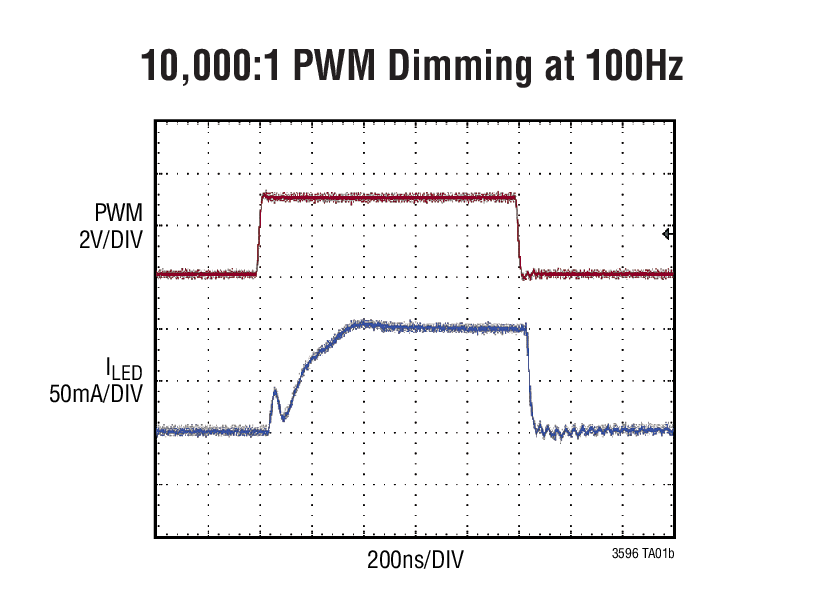

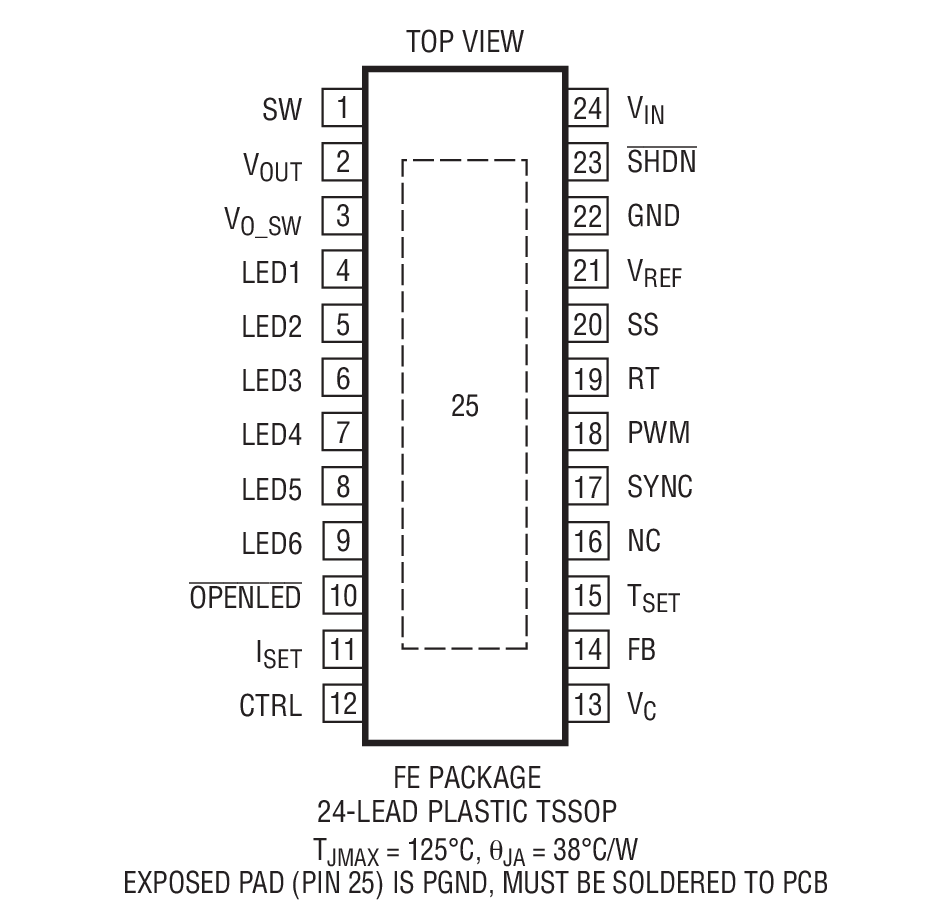

LT359660V Step-Down LED Driver | LED Drivers | 1 | Active | The LT3596 is a 60V step-down LED Driver. It achieves 10,000:1 digital PWM dimming at 100Hz with fast NPN current sources driving up to 10 LEDs in each channel. 100:1 LED dimming can also be done with analog control of the CTRL1-3 pin.The step-down switching frequency is programmable between 200kHz and 1MHz and is synchronizable to an external clock. The LT3596 also provides maximum LED brightness while adhering to manufacturers’ specifications for thermal derating. The derate temperature is programmed by placing a negative temperature coefficient (NTC) resistor on the master control pin.The LT3596 adaptively controls VOUTin order to achieve optimal efficiency. Other features include: 1.5% LED current matching between channels, open LED reporting, shorted LED pin protection and reporting, programmable LED current and programmable temperature protection.ApplicationsLED Billboards and SignboardsMono, Multi, Full Color LED DisplaysLarge Screen Display LED BacklightingAutomotive, Industrial and Medical Displays |
LT359760V Triple Step-Down LED Driver | Power Management (PMIC) | 1 | Active | The LT3597 is a 60V triple step-down LED driver capable of achieving 10,000:1 digital PWM dimming at 100Hz with fast NPN current sources driving up to 10 LEDs in each channel. LED dimming can also be achieved via analog control of the CTRL1-3 pin.The step-down switching frequency is programmed between 200kHz and 1MHz. The frequency is also synchronizable to an external clock. The LT3597 provides maximum LED brightness while adhering to manufacturers’ specifications for thermal derating. The derate temperature is programmed by placing a negative temperature coefficient (NTC) resistor on the master control pin.The LT3597 adaptively controls VOUTin order to achieve optimal efficiency. Other features include: 2% LED current matching between channels, open LED reporting, shorted LED protection, programmable LED current, and programmable temperature protection.ApplicationsLED Billboards and SignboardsMono, Multi, Full-Color LED DisplaysLarge Screen Display LED BacklightingAutomotive, Industrial, and Medical Displays |
LT35986-String 30mA LED Driver with ±1.5% Current Matching | PMIC | 2 | Active | The LT3598 is a fixed frequency step-up DC/DC converter designed to drive up to six strings of LEDs at an output voltage up to 44V. LED dimming can be achieved with analog dimming on the CTRL pin, and with pulse width modulation dimming on the PWM pin. The LT3598 accurately regulates LED current even when the input voltage is higher than the LED output voltage. The switching frequency is programmable from 200kHz to 2.5MHz through an external resistor.Additional features include programmable overvoltage protection, switching frequency synchronization to an external clock, LED current derating based on junction temperature and/or LED temperature, LED string disable control,OPENLEDalert pin and output voltage limiting when all LED strings are disconnected. The LT3598 is available in a thermally enhanced 24-lead (4mm × 4mm) QFN and 24-lead TSSOP packages.ApplicationsNotebook Computer DisplayMedium Size DisplaysAutomotive LCD Display |

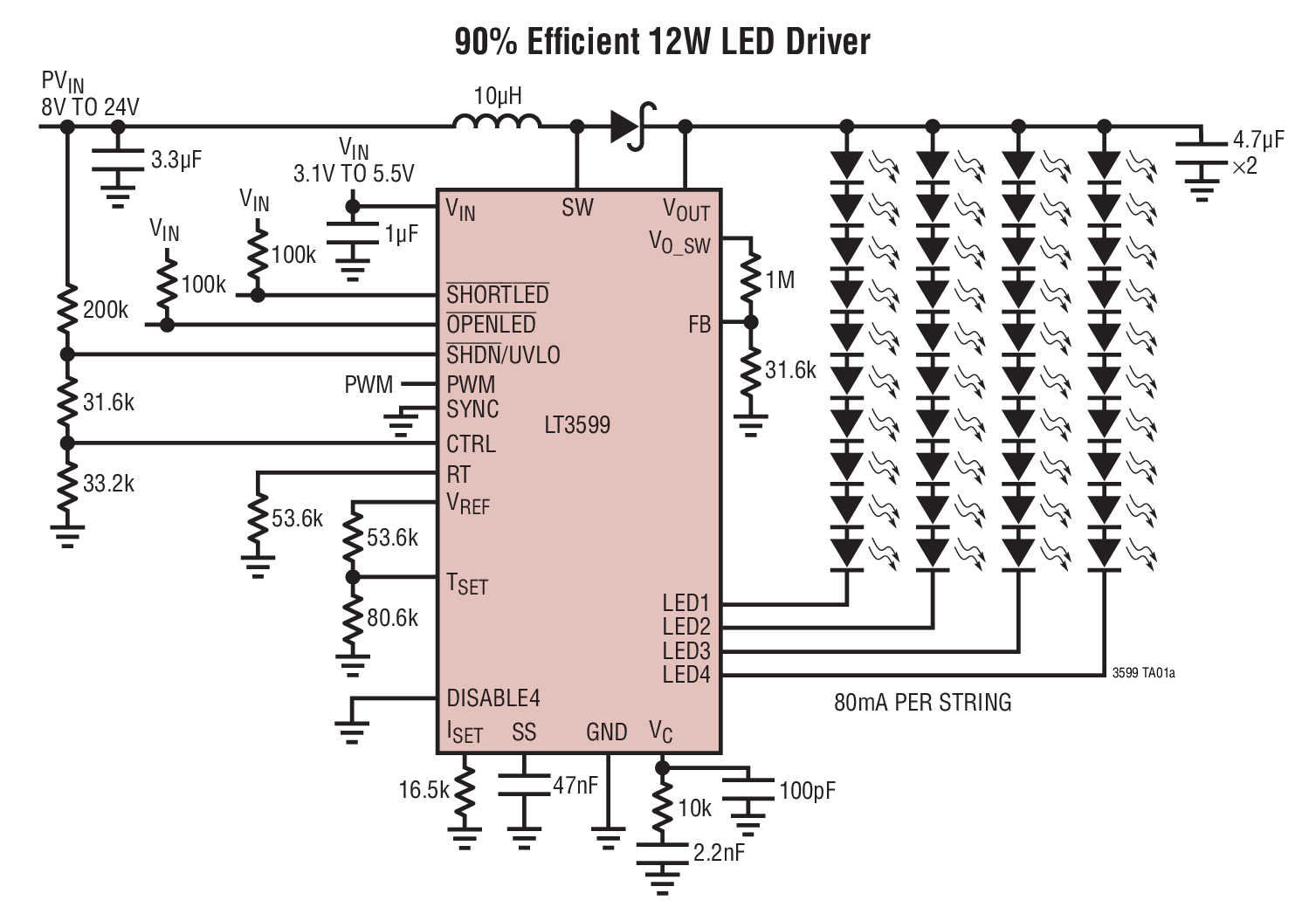

LT35994-String 120mA LED Driver with ±1.5% Current Matching | PMIC | 5 | Active | The LT3599 is a fixed frequency 2A step-up DC/DC converter designed to drive four strings of 120mA LEDs up to a 44V output voltage. The switching frequency is programmable from 200kHz to 2.1MHz through an external resistor.LED dimming can be achieved with analog dimming on the CTRL pin, and with pulse width modulation dimming on the PWM pin. The LT3599 accurately regulates LED current even when the input voltage is higher than the LED output voltage.Additional features include programmable LED current derating, switching frequency synchronization to an external clock, LED string disable control,OPENLEDalert pin,SHORTLEDalert pins and programmable maximum output voltage when all LED strings are disconnected. The LT3599 is available in the thermally enhanced 32-pin (5mm × 5mm) QFN and 28-pin TSSOP packages.ApplicationsAutomotive Navigation TFT LCD DisplaysDesktop and Notebook TFT LCD Displays |

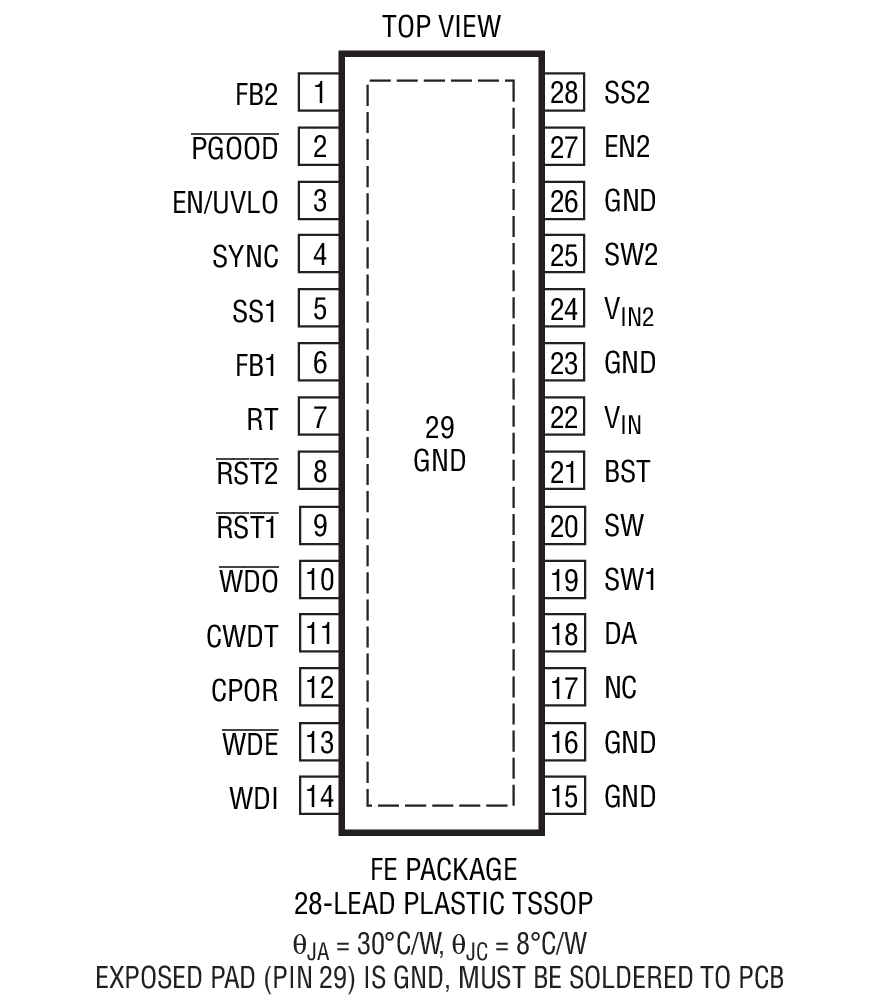

LT3640Dual Monolithic Buck Regulator with Power-On Reset and Watchdog Timer | PMIC | 4 | Active | The LT3640 is a dual channel, current mode monolithic buck switching regulator with a power-on reset and a watchdog timer. Both regulators are synchronized to a single oscillator with an adjustable frequency (350kHz to 2.5MHz). At light loads, both regulators operate in low ripple Burst Mode®to maintain high efficiency and low output ripple.The high voltage channel is a nonsynchronous buck with an internal 2.4A top switch that operates from an input of 4V to 35V; a 36.5V OVLO protects the device to 55V. The low voltage channel operates from an input of 2.5V to 5.5V. Internal synchronous power switches provide high efficiency without the need of external Schottky diode. Both channels have cycle-by-cycle current limit, providing protection against shorted outputs.The power-on reset and watchdog timeout periods are both adjustable using external capacitors. The window mode watchdog timer flags when the μP pulses group too close together or too far apart.The LT3640 is available in a 28-pin 4mm × 5mm QFN package and 28-pin TSSOP package. Both packages have an exposed pad for low thermal resistance.ApplicationsIndustrial Power SuppliesAutomotive Electronic Control Units |

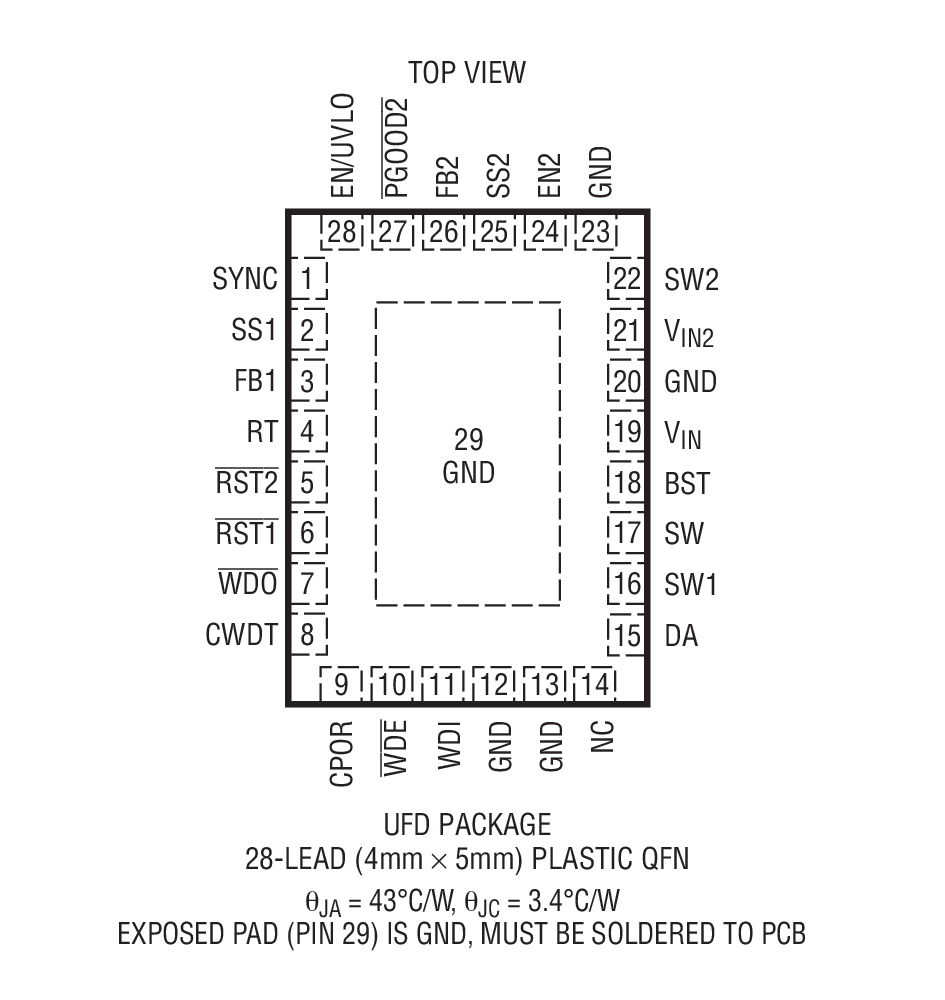

LT3641Dual Monolithic Buck Regulator with Power-On Reset and Watchdog Timer | PMIC | 6 | Active | The LT3641 is a dual channel, current mode monolithic buck switching regulator with a power-on reset and a watchdog timer. Both regulators are synchronized to a single oscillator with an adjustable frequency (350kHz to 2.5MHz). At light loads, both regulators operate in low ripple Burst Mode®to maintain high effi ciency and low output ripple.The high voltage channel is a nonsynchronous buck with an internal 2.4A top switch that operates from an input of 4V to 42V and input transient protection to 55V. The low voltage channel operates from an input of 2.5V to 5.5V. Internal synchronous power switches provide high effi ciency without the need of external Schottky diode. Both channels have cycle-by-cycle current limit, providing protection against shorted outputs.The power-on reset and watchdog timeout periods are both adjustable using external capacitors. The window mode watchdog timer fl ags when the μP pulses group too close together or too far apart.The LT3641 is available in a 28-pin 4mm × 5mm QFN package and 28-pin TSSOP package. Both packages have an exposed pad for low thermal resistance.ApplicationsIndustrial Power SuppliesAutomotive Electronic Control Units |
