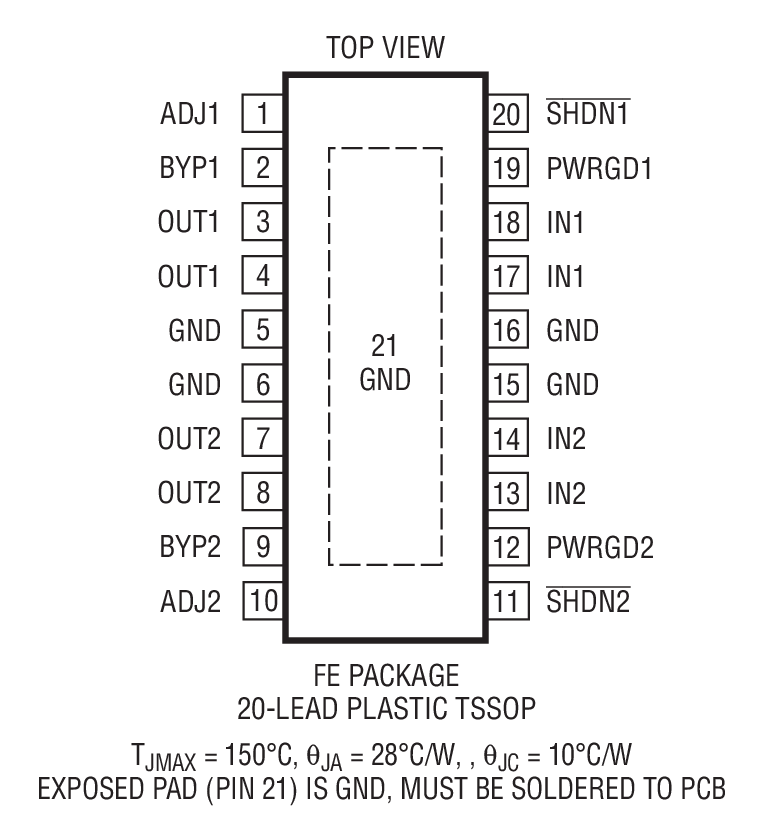

The LT3030 is a dual, micropower, low noise, low dropout linear regulator. The device operates with either common or independent input supplies for each channel, over a 1.7V to 20V input voltage range. Output 1/Output 2 supply 750mA/250mA respectively with a typical dropout voltage of 300mV. With an external 10nF bypass capacitor, output noise is only 20μVRMSover a 10Hz to 100kHz bandwidth. Designed for use in battery-powered systems, the low 120μA/75μA quiescent current makes it an ideal choice. In shutdown, quiescent current drops to less than 1μA. Shutdown control is independent for each channel and its precision logic threshold allows for voltage lockout functionality. The LT3030 includes a PWRGD flag for each channel to indicate output regulation.The LT3030 optimizes stability and transient response with low ESR ceramic output capacitors, requiring a minimum of only 10μF/3.3μF.Internal circuitry provides reverse-battery protection, reverse-current protection, current limiting with foldback and thermal shutdown with hysteresis. The adjustable output voltage device has a 1.220V reference voltage. The LT3030 is offered in the thermally enhanced 20-lead TSSOP and 28-lead, low profile (4mm × 5mm × 0.75mm) QFN packages.ApplicationsGeneral Purpose Linear RegulatorBattery-Powered SystemsMicroprocessor Core/Logic SuppliesPost Regulator for Switching SuppliesTracking/Sequencing Power Supplies

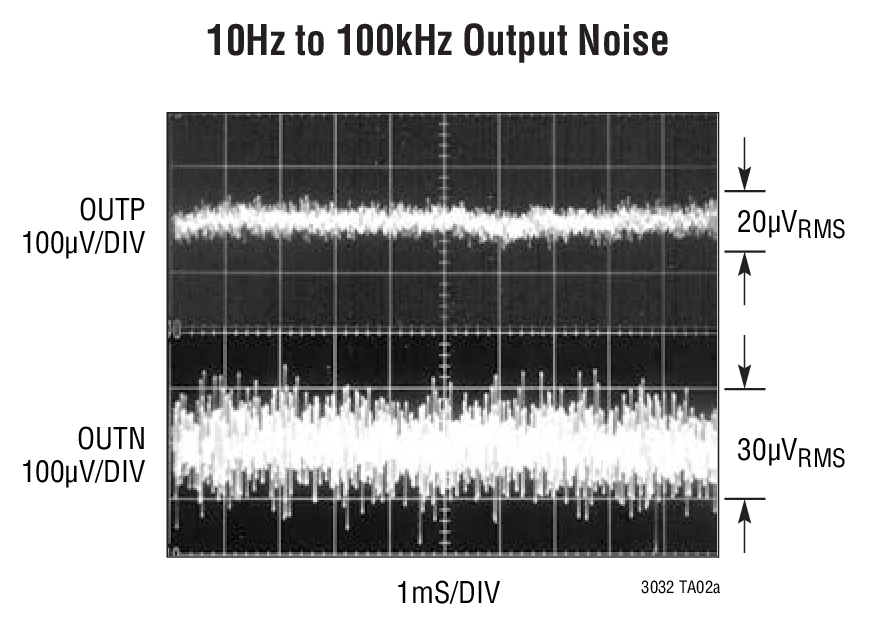

The LT3032 is a dual, low noise, positive and negative low dropout voltage linear regulator. Each regulator delivers up to 150mA with a typical 300mV dropout voltage. Each regulator’s quiescent current is low (30μA operating and <3μA in shutdown) and well-controlled in dropout, making it an excellent choice for battery-powered circuits.Another key feature of the LT3032 is low output noise. Adding an external 10nF bypass capacitor to each regulator reduces output noise to 20μVRMS/30μVRMSover a 10Hz to 100kHz bandwidth. The LT3032 is stable with minimum output capacitors of 2.2μF. The regulators do not require the addition of ESR as is common with other regulators.The regulators are offered as adjustable output devices with an output voltage down to the ±1.22V reference voltage or in fixed voltages of ±3.3V, ±5V, ±12V and ±15V. Internal protection circuitry includes reverse-output protection, current limiting and thermal limiting.The LT3032 is available in a unique low profile 14-lead 4mm × 3mm × 0.75mm DFN package with exposed backside pads for each regulator, allowing optimum thermal performance.ApplicationsBattery-Powered InstrumentsBipolar Power SuppliesLow Noise Power Supplies

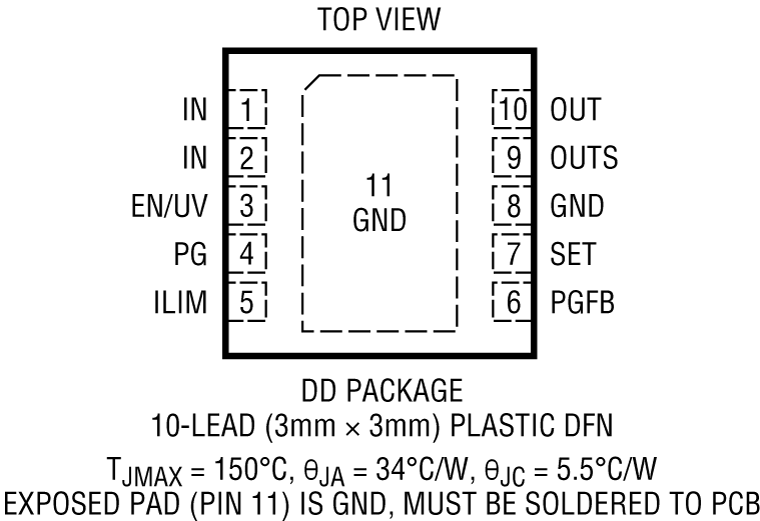

The LT3042 is a high performance low dropout linear regulator featuring LTC’s ultralow noise and ultrahigh PSRR architecture for powering noise sensitive RF applications. Designed as a precision current reference followed by a high performance voltage buffer, the LT3042 can be easily paralleled to further reduce noise, increase output current and spread heat on the PCB.The device supplies 200mA at a typical 350mV dropout voltage. Operating quiescent current is nominally 2mA and drops to <<1μA in shutdown. The LT3042’s wide output voltage range (0V to 15V) while maintaining unity-gain operation provides virtually constant output noise, PSRR, bandwidth and load regulation, independent of the programmed output voltage. Additionally, the regulator features programmable current limit, fast start-up capability and programmable power good to indicate output voltage regulation.The LT3042 is stable with a minimum 4.7μF ceramic output capacitor. Built-in protection includes reverse battery protection, reverse current protection, internal current limit with foldback and thermal limit with hysteresis. The LT3042 is available in thermally enhanced 10-Lead MSOP and 3mm × 3mm DFN packages.ApplicationsRF Power Supplies: PLLs, VCOs, Mixers, LNAsVery Low Noise InstrumentationHigh Speed/High Precision Data ConvertersMedical Applications: Imaging, DiagnosticsPrecision Power SuppliesPost-Regulator for Switching Supplies

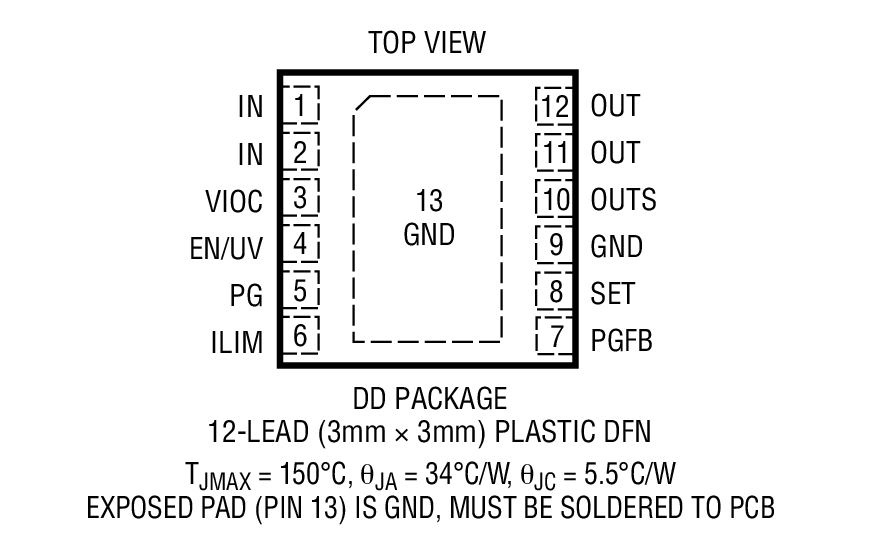

The LT3045-1 is a high performance low dropout linear regulator featuring LTC’s ultralow noise and ultrahigh PSRR architecture for powering noise sensitive applications. Designed as a precision current reference followed by a high performance voltage buffer, the LT3045-1 can be easily paralleled to further reduce noise, increase output current and spread heat on the PCB. In addition to the LT3045 feature set, the LT3045-1 incorporates a VIOC tracking function to control an upstream switching converter to maintain a constant voltage across the LT3045-1 and hence minimize power dissipation.The device supplies 500mA at a typical 260mV dropout voltage. Operating quiescent current is nominally 2.3mA and drops to <<1μA in shutdown. The LT3045-1’s wide output voltage range (0V to 15V) while maintaining unity-gain operation provides virtually constant output noise, PSRR, bandwidth and load regulation, independent of the programmed output voltage. Additionally, the regulator features programmable current limit, fast start-up capability and programmable power good to indicate output voltage regulation.The LT3045-1 is stable with a minimum 10μF ceramic output capacitor. Built-in protection includes reverse battery protection, reverse current protection, internal current limit with foldback and thermal limit with hysteresis. The LT3045-1 is available in thermally enhanced 12-Lead MSOP and 3mm × 3mm DFN packages.VIOC FunctionLT3045-1YesLT3045NoApplicationsRF Power Supplies: PLLs, VCOs, Mixers, LNAs, PAsVery Low Noise InstrumentationHigh Speed/High Precision Data ConvertersMedical Applications: Imaging, DiagnosticsPost-Regulator for Switching Supplies

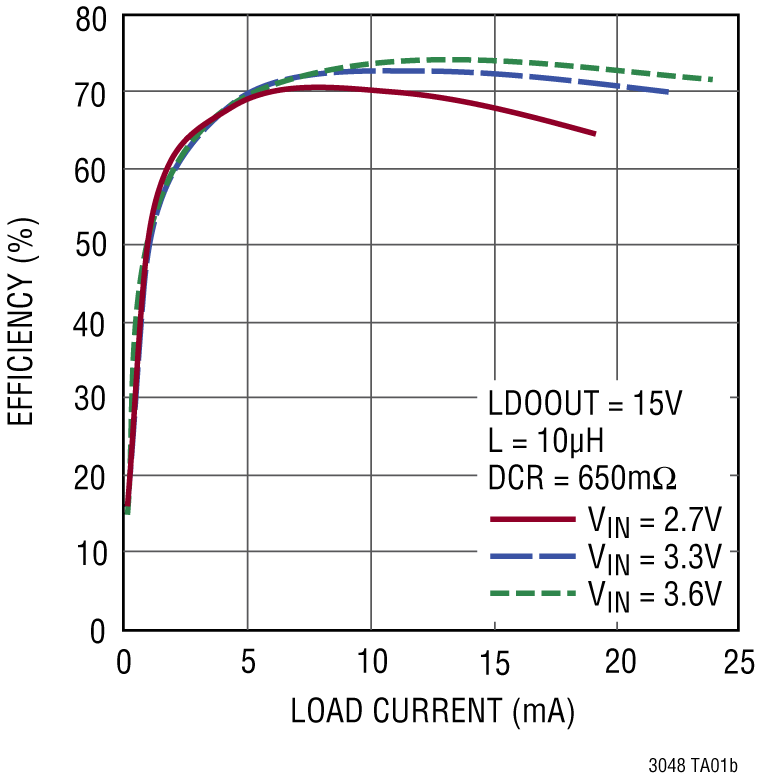

The LT3048 series generate low noise, low ripple bias supplies from input voltages of 2.7V to 4.8V.The LT3048 includes a boost regulator and a LDO linear regulator. The boost regulator provides power to the linear regulator.The boost regulator output voltage is regulated to 1.1V above the LDO output, optimizing LDO ripple rejection and transient response. Fixed frequency operation and current mode control allow the use of very small inductors and results in low, predictable output ripple.The linear regulator in the LT3048 generates a programmable output and the LT3048-XX generate fixed output voltages. High power supply ripple rejection combined with a low noise internal reference results in less than 500μVP-Poutput ripple and noise.The LT3048 is available in a 8-lead 2mm × 2mm DFN package.ApplicationsSensor BiasOp Amp Supply

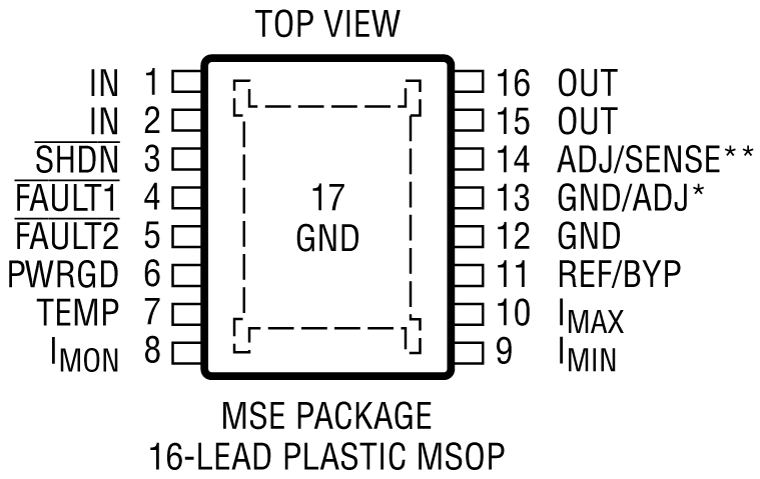

The LT3055 series are micropower, low noise, low dropout voltage (LDO) linear regulators. The devices supply 500mA of output current with a dropout voltage of 350mV. A 10nF bypass capacitor reduces output noise to 25μVRMSin a 10Hz to 100kHz bandwidth and soft starts the reference. The LT3055’s ±45V input voltage rating combined with its precision current limit and diagnostic functions make the IC an ideal choice for robust, high reliability applications.A single resistor programs the LT3055’s current limit, accurate to ±10% over a wide input voltage and temperature range. Another resistor programs the LT3055’s minimum output current monitor, useful for detecting open-circuit conditions. The current monitor function sources a current equal to 1/500th of output current. Logic fault pins assert low if the LT3055 is in current limit (FAULT2), operating below its minimum output current (FAULT1) or is in thermal limit (bothFAULT1andFAULT2). PWRGD indicates output regulation. The TEMP pin indicates average die temperature.The LT3055 optimizes stability and transient response with low ESR ceramic capacitors, requiring a minimum of 3.3μF. Internal protection circuitry includes current limiting, thermal limiting, reverse battery protection, reverse current protection and reverse output protection.The LT3055 is available in fixed output voltages of 3.3V and 5V, and as an adjustable device with an output voltage range from 0.6V to 40V.ApplicationsProtected Antenna SuppliesAutomotive TelematicsIndustrial Applications (Trucks, Forklifts, etc.)High Reliability ApplicationsNoise-Sensitive RF or DSP Supplies

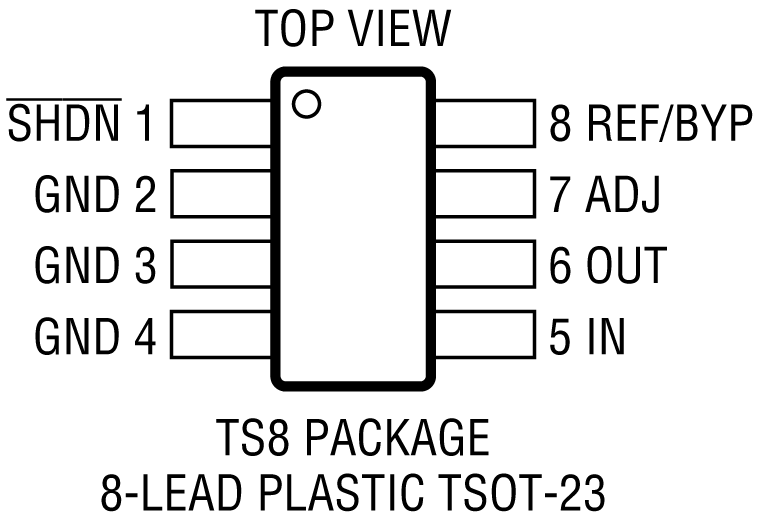

The LT3060 series are micropower, low dropout voltage (LDO) linear regulators that operate over a 1.6V to 45V input supply range. The devices supply 100mA of output current with a typical dropout voltage of 300mV. A single external capacitor provides programmable low noise reference performance and output soft-start functionality. The LT3060’s quiescent current is merely 40μA and provides fast transient response with a minimum 2.2μF output capacitor. In shutdown, quiescent current is less than 1μA and the reference soft-start capacitor is reset.The LT3060 regulators optimize stability and transient response with low ESR, ceramic output capacitors. The regulators do not require the addition of ESR as is common with other regulators.Internal protection circuitry includes reverse-battery protection, reverse-output protection, reverse-current protection, current limit with foldback and thermal shutdown. The LT3060 series are available in fixed output voltages of 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V and 15V, and as an adjustable voltage regulator with an output voltage range from the 600mV reference to 44.5V. The LT3060 regulators are offered in the thermally enhanced 8-lead TSOT-23 and 8-lead (2mm × 2mm × 0.75mm) DFN packages.APPLICATIONSBattery-Powered SystemsAutomotive Power SuppliesIndustrial Power SuppliesAvionic Power SuppliesPortable Instruments

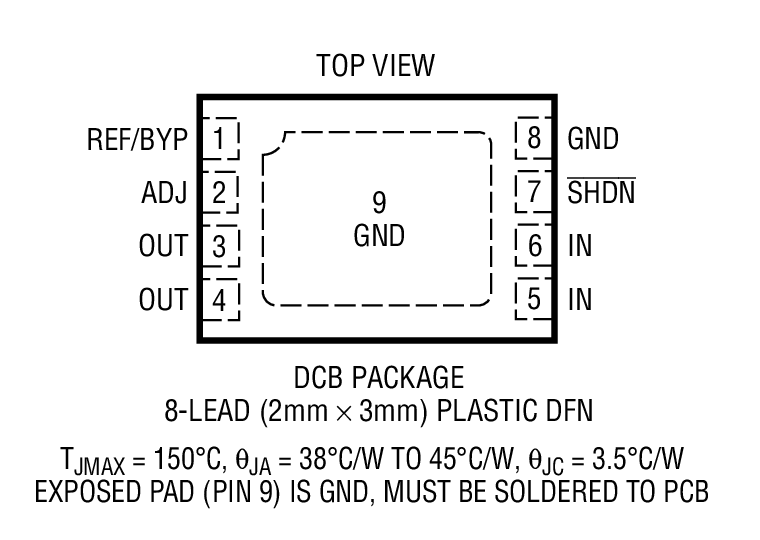

The LT3061 is a micropower, low dropout (LDO) linear regulator that operates over a 1.6V to 45V supply range and is available in a series of fixed output and adjustable versions. The device supplies 100mA of output current with a typical dropout voltage of 250mV. A single external capacitor provides programmable low noise reference performance and output soft-start functionality. The LT3061’s quiescent current is merely 45μA and provides fast transient response with a minimum 3.3μF output capacitor. In shutdown, quiescent current is less than 3μA and the reference soft start capacitor is reset.The LT3061 features an NMOS pull-down that discharges the output whenSHDNor IN is driven low.Internal protection circuitry includes reverse-battery protection, reverse-current protection, current limit with foldback and thermal shutdown.The LT3061 is available in fixed output voltages of 3.3V and 5V, and as an adjustable device with an output voltage range from the 600mV reference up to 19V. The LT3061 is offered in the thermally enhanced 8-lead 2mm × 3mm DFN and MSOP packages.ApplicationsBattery Powered SystemsAutomotive Power SuppliesIndustrial Power SuppliesAvionic Power SuppliesPortable Instruments

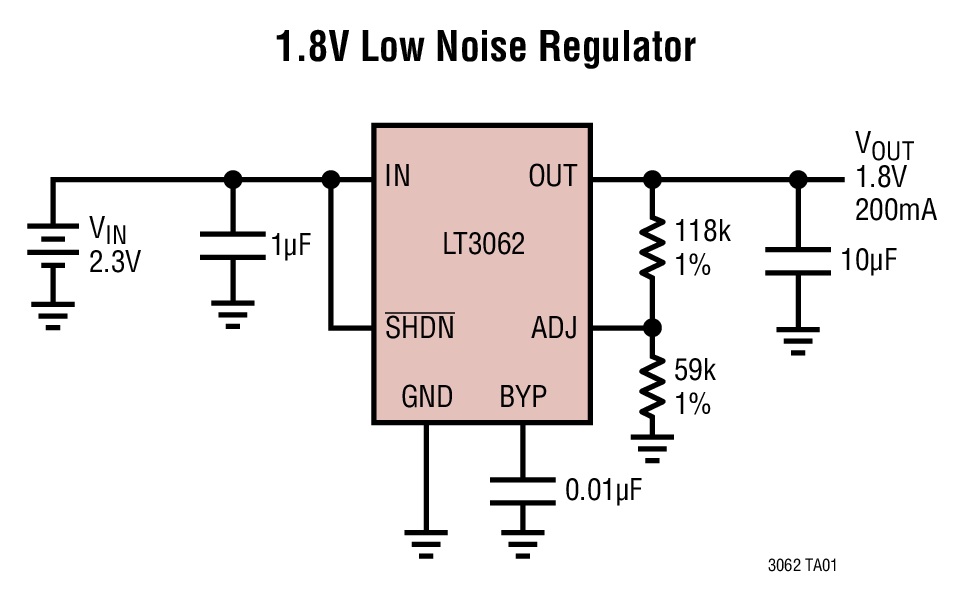

The LT3062 is a micropower, low dropout (LDO) linear regulator that operates over a 1.6V to 45V supply range and is available in a series of fixed output and adjustable versions. The device supplies 200mA of output current with a typical dropout voltage of 300mV. A single external capacitor provides programmable low noise reference performance and output soft-start functionality. The LT3062’s quiescent current is merely 45μA and provides fast transient response with a minimum 3.3μF output capacitor. In shutdown, quiescent current is less than 1μA and the reference soft start capacitor is reset.The LT3062 optimizes stability and transient response with low ESR, ceramic output capacitors. The LT3062 does not require the addition of ESR as is common with other regulators.Internal protection circuitry includes reverse-battery protection, reverse-output protection, reverse-current protection, current limit with foldback and thermal shutdown.The LT3062 is available in fixed output voltages of 3.3V and 5V, and as an adjustable device with an output voltage range from the 600mV reference up to 40V. The LT3062 is offered in the thermally enhanced 8-lead 2mm × 3mm DFN and MSOP packages.ApplicationsBattery Powered SystemsAutomotive Power SuppliesIndustrial Power SuppliesAvionic Power SuppliesPortable Instruments
