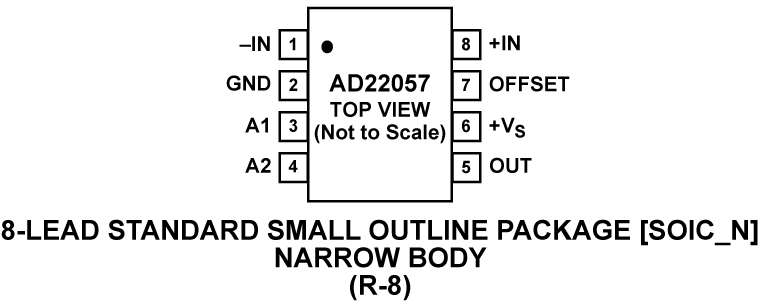

The AD22057 is a single-supply difference amplifier for the amplification and low-pass filtering of small differential voltages from sources having a large common-mode voltage.Supply voltages from +3 V to +36 V can be used. The input common-mode range extends from below ground to 24 V using a +5 V supply with excellent rejection of this common-mode voltage.This range is achieved by the use of a special resitive attenuator at the input, laser trimmed to a very high differential balance. Low initial offset voltage and offset voltage drift are specified, and long-term stability of gain and offset voltage is also provided.Provisions are included for optional low-pass filtering and gain adjustment. An accurate midscale offset feature allows bipolar signals to be amplified.

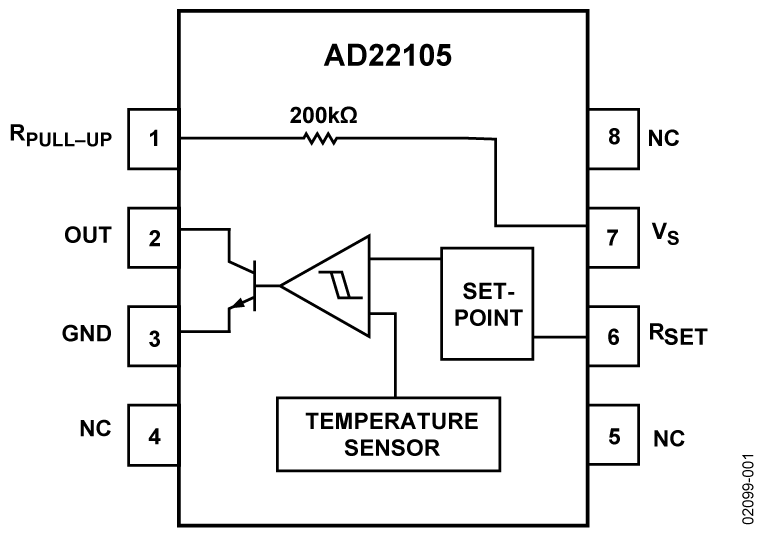

The AD22105 is a solid state thermostatic switch. Requiring only one external programming resistor, the AD22105 can be set to switch accurately at any temperature in the wide operating range of -40°C to +150°C. Using a novel circuit architecture, the AD22105 asserts an open collector output when the ambient temperature exceeds the user-programmed setpoint temperature. The AD22105 has approximately 4°C of hysteresis which prevents rapid thermal on/off cycling.The AD22105 is designed to operate on a single power supply voltage from +2.7 V to +7.0 V facilitating operation in battery powered applications as well as in industrial control systems. Because of low power dissipation (230 µW @ 3.3 V), self-heating errors are minimized and battery life is maximized.An optional internal 200 k(ohm) pull-up resistor is included to facilitate driving light loads such as CMOS inputs.Alternatively, a low power LED indicator may be driven directly.APPLICATIONSIndustrial process controlThermal control systemsCPU monitoringComputer thermal management circuitsFan controlHandheld/portable electronic equipment
