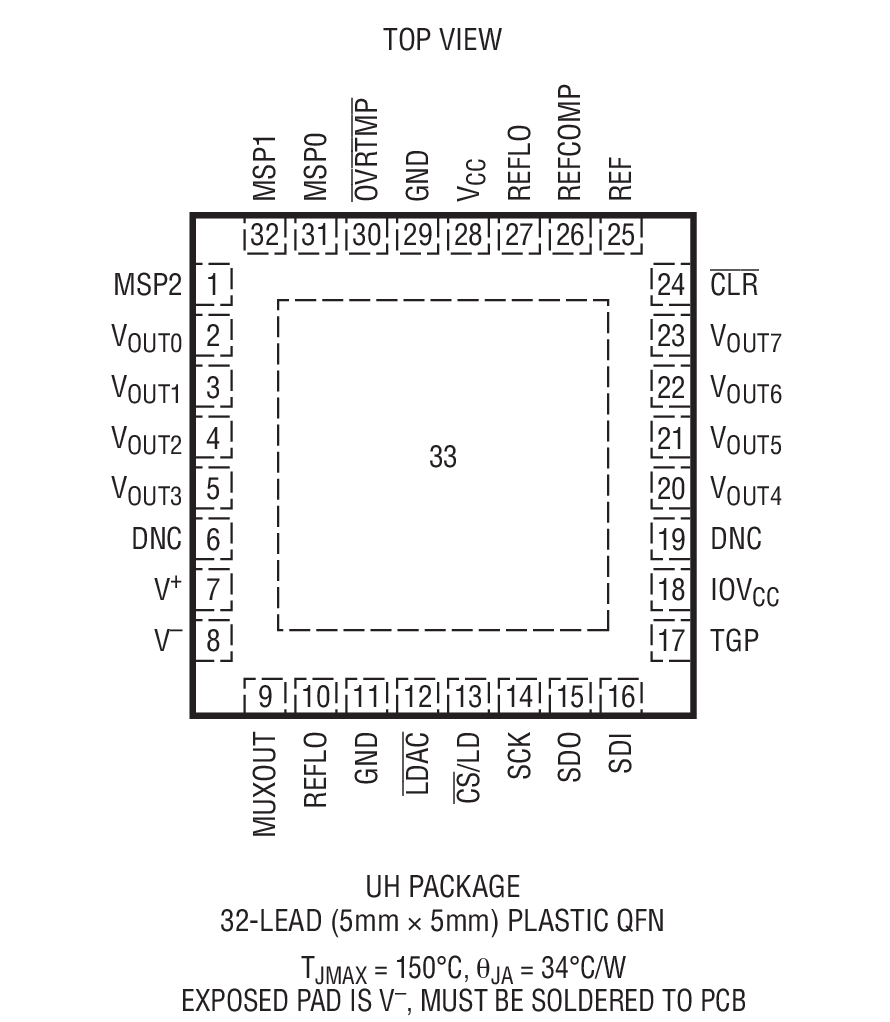

The LTC2666 is a family of 8-channel, 16-/12-bit ±10V digital-to-analog converters with integrated precision references. They are guaranteed monotonic and have built-in rail-to-rail output buffers. These SoftSpan™DACs offer five output ranges up to ±10V. The range of each channel is independently programmable, or the part can be hardware-configured for operation in a fixed range.The integrated 2.5V reference is buffered separately to each channel; an external reference can be used for additional range options. The LTC2666 also includes A/B toggle capability via a dedicated pin or software toggle command.The SPI/Microwire-compatible 3-wire serial interface operates on logic levels as low as 1.71V at clock rates up to 50MHz.ApplicationsOptical NetworkingInstrumentationData AcquisitionAutomatic Test EquipmentProcess Control and Industrial Automation

The LTC2668 is a family of 16-channel, 16-/12-bit ±10V digital-to-analog converters with integrated precision references. They are guaranteed monotonic and have built-in rail-to-rail output buffers. These SoftSpan™DACs offer five output ranges up to ±10V. The range of each channel is independently programmable, or the part can be hardware-configured for operation in a fixed range.The integrated 2.5V reference is buffered separately to each channel; an external reference can be used for additional range options. The LTC2668 also includes A/B toggle capability via a dedicated pin or software toggle command.The SPI/Microwire-compatible 3-wire serial interface operates on logic levels as low as 1.71V at clock rates up to 50MHz.ApplicationsOptical NetworkingInstrumentationData AcquisitionAutomatic Test EquipmentProcess Control and Industrial Automation

The LTC2686 is an 8-channel, 12-/16-bit, ±15 V digital-to-analog converter (DAC) with an integrated precision reference. The LTC2686 is guaranteed monotonic and has built in rail-to-rail output buffers that can source or sink up to 55 mA. This SoftSpan™DAC offers five output ranges up to ±15 V. The range of each channel is independently programmable.The internal 4.096 V precision reference sets the accuracy of the output voltage. An external reference can be used for additional range options. Three toggle pins support Input Register A and Input Register B toggle or sinusoidal dither at multiple frequencies. An analog multiplexer simplifies measurement of pin voltages, load currents, and junction temperature.Programmable offset and gain registers improve the accuracy of the DAC outputs.The serial peripheral interface (SPI) and MICROWIRE™-compatible, 3-wire serial interface operates on logic levels as low as 1.71 V and clock rates up to 50 MHz.APPLICATIONSOptical networkingInstrumentationData acquisitionAutomatic test equipmentProcess control and industrial automation

The LTC2688 is a 16-channel,12-/16-bit, ±15 V digital-to-analog converter (DAC) with an integrated precision reference. The LTC2688 is guaranteed monotonic and has built in rail-to-rail output buffers that can source or sink up to 20 mA. This SoftSpan™DAC offers five output ranges up to ±15 V. The range of each channel is independently programmable.The internal 4.096 V precision reference sets the accuracy of the output voltage. An external reference can be used for additional range options. Three toggle pins support Input Register A and Input Register B toggle or sinusoidal dither at multiple frequencies. An analog multiplexer simplifies measurement of pin voltages, load currents, and junction temperature.Programmable offset and gain registers improve the accuracy of the DAC outputs.The serial peripheral interface (SPI) and MICROWIRE™-compatible, 3-wire serial interface operates on logic levels as low as 1.71 V and clock rates up to 50 MHz.APPLICATIONSOptical networkingInstrumentationData acquisitionAutomatic test equipmentProcess control and industrial automation

The LTC2751 is a family of 12-, 14-, and 16-bit multiplying parallel-input, current-output DACs. They operate from a single 2.7V to 5.5V supply. All parts are guaranteed monotonic over temperature. The LTC2751A-16 provides 16-bit performance (±1LSB INL and DNL) overtemperature without any adjustments. These SoftSpan™DACs offer six output ranges — two unipolar and four bipolar — that can be programmed through the parallel interface, or pin strapped for operation in a single range.These parts use a bidirectional input/output parallel interface that allows read back of any on-chip register. A power-on circuit resets the DAC output to 0V when power is initially applied. A logic low on theCLRpin asynchronously clears the DAC to 0V in any output range.The parts are specified over commercial and industrial temperature ranges.ApplicationsHigh Resolution Offset and Gain AdjustmentProcess Control and Industrial AutomationAutomatic Test EquipmentData Acquisition Systems

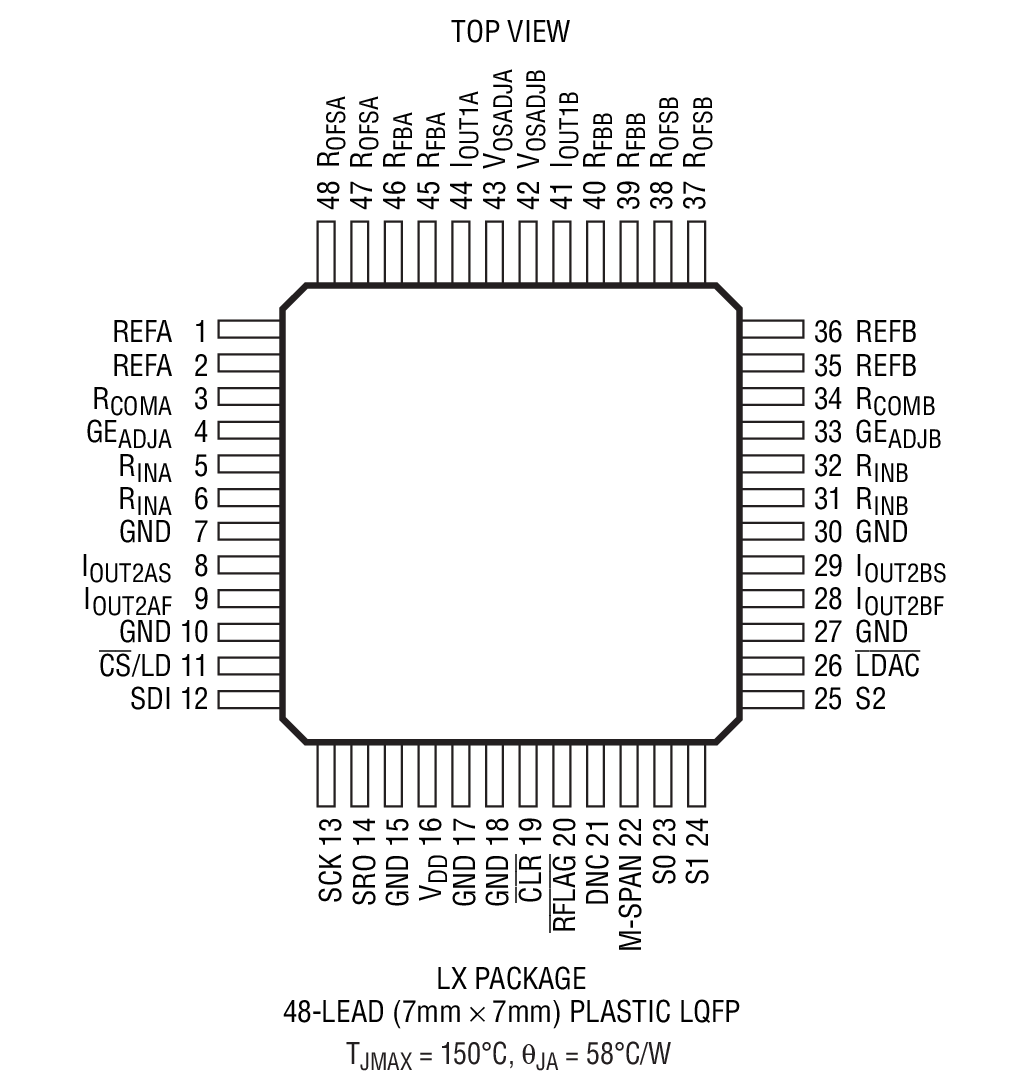

The LTC2752 is a dual 16-bit multiplying serial-input, current-output digital-to-analog converter. It operates from a single 3V to 5V supply and is guaranteed monotonic over temperature. The LTC2752A provides full 16-bit performance (±1LSB INL and DNL, max) over temperature without any adjustments. This SoftSpan™DAC offers six output ranges (up to ±10V) that can be programmed through the 3-wire SPI serial interface, or pinstrapped for operation in a single range.Any on-chip register (including DAC output-range settings) can be read for verification in just one instruction cycle; and if you change register content, the altered register will be automatically read back during the next instruction cycle.Voltage-controlled offset and gain adjustments are also provided; and the power-on reset circuit andCLRpin both reset the DAC outputs to 0V regardless of output range.ApplicationsHigh Resolution Offset and Gain AdjustmentProcess Control and Industrial AutomationAutomatic Test EquipmentData Acquisition Systems

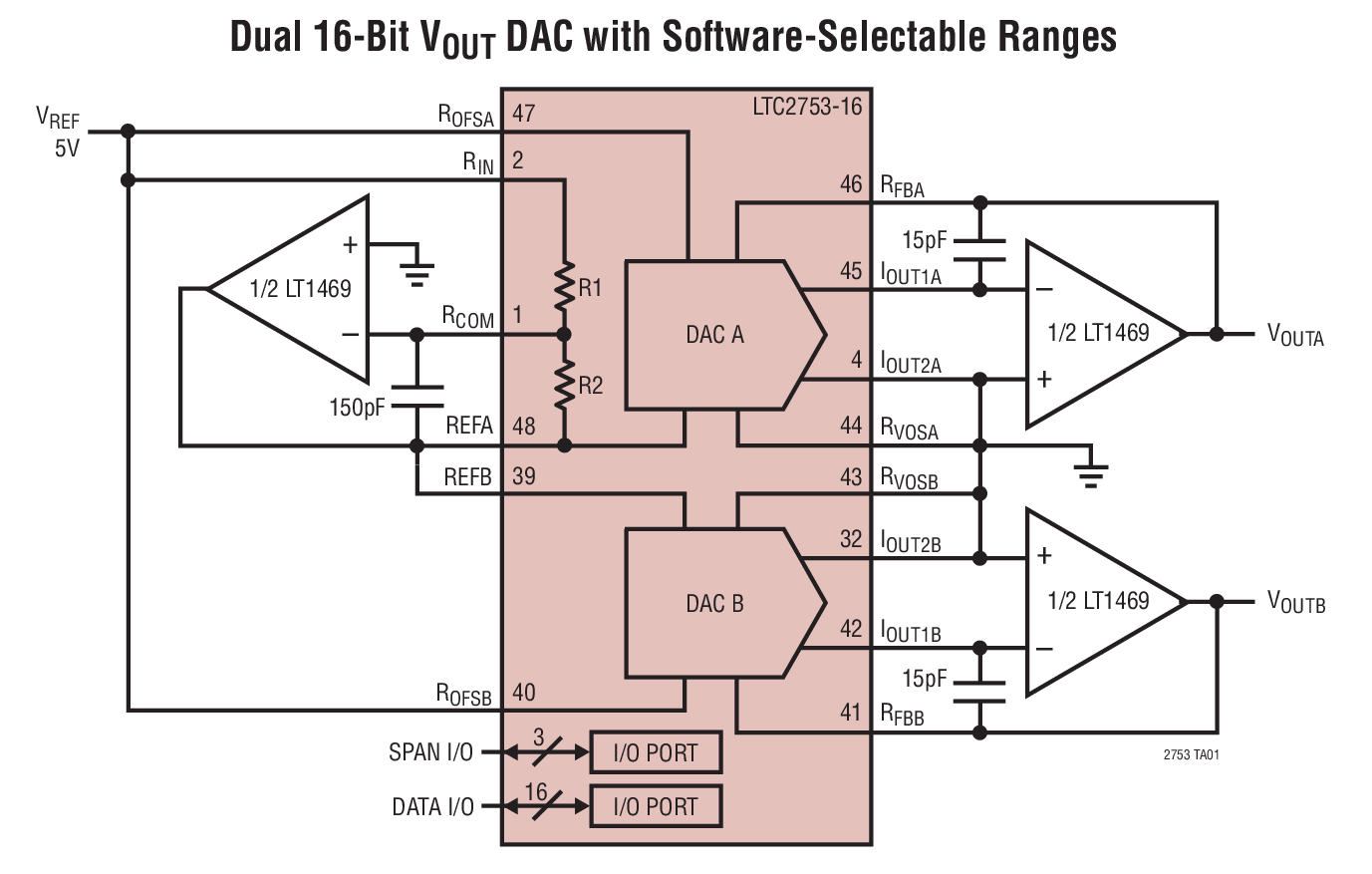

The LTC2753 is a family of dual 12-, 14-, and 16-bit multiplying parallel-input, current-output DACs. These DACs operate from a single 2.7V to 5.5V supply and are all guaranteed monotonic over temperature. The LTC2753A-16 provides 16-bit performance (±1LSB INL and DNL) over temperature without any adjustments. These SoftSpan™DACs offer six output ranges—two unipolar and four bipolar—that can be programmed through the parallel interface, or pinstrapped for operation in a single range.The LTC2753 DACs use a bidirectional input/output parallel interface that allows readback of any on-chip register. A power-on reset circuit resets the DAC outputs to 0V when power is initially applied. A logic low on theCLRpin asynchronously clears the DACs to 0V in any output range.The parts are specified over commercial and industrial temperature ranges.ApplicationsHigh Resolution Offset and Gain AdjustmentProcess Control and Industrial AutomationAutomatic Test EquipmentData Acquisition Systems
