Analog Devices Inc./Maxim Integrated

Series	Category	# Parts	Status	Description

Part	Spec A	Spec B	Spec C	Spec D	Description

Standalone parts(23843)

...

Part	Category	Description
Analog Devices Inc./Maxim Integrated LTC1879EGN#TRUnknown	Integrated Circuits (ICs)	IC REG BUCK ADJ 1.2A 16SSOP
Analog Devices Inc./Maxim Integrated LTC2208CUP#TRUnknown	Integrated Circuits (ICs)	IC ADC 16BIT 130MSPS 64-QFN
Analog Devices Inc./Maxim Integrated ADP2108ACBZ-1.1-R7Obsolete	Integrated Circuits (ICs)	IC REG BUCK 1.1V 600MA 5WLCSP
Analog Devices Inc./Maxim Integrated EV1HMC832ALP6GObsolete	Development Boards Kits Programmers	EVAL BOARD FOR HMC832ALP6GE
Analog Devices Inc./Maxim Integrated LTC488ISWUnknown	Integrated Circuits (ICs)	IC LINE RCVR RS485 QUAD 16-SOIC
Analog Devices Inc./Maxim Integrated LTC6946IUFD-2Obsolete	Integrated Circuits (ICs)	IC CLK/FREQ SYNTH 28QFN
Analog Devices Inc./Maxim Integrated MAX5556ESA+TObsolete	Integrated Circuits (ICs)	IC DAC/AUDIO 16BIT 50K 8SOIC
Analog Devices Inc./Maxim Integrated EVAL-FLTR-LD-1RZUnknown	Unclassified	EVAL BRD FOR AD800 SERIES
Analog Devices Inc./Maxim Integrated AD9963-EBZ	Development Boards Kits Programmers	BOARD EVAL FOR AD9963
Analog Devices Inc./Maxim Integrated LTC1296CCSW#TRUnknown	Integrated Circuits (ICs)	IC DATA ACQ SYS 12BIT 5V 20SOIC

Series	Category	# Parts	Status	Description

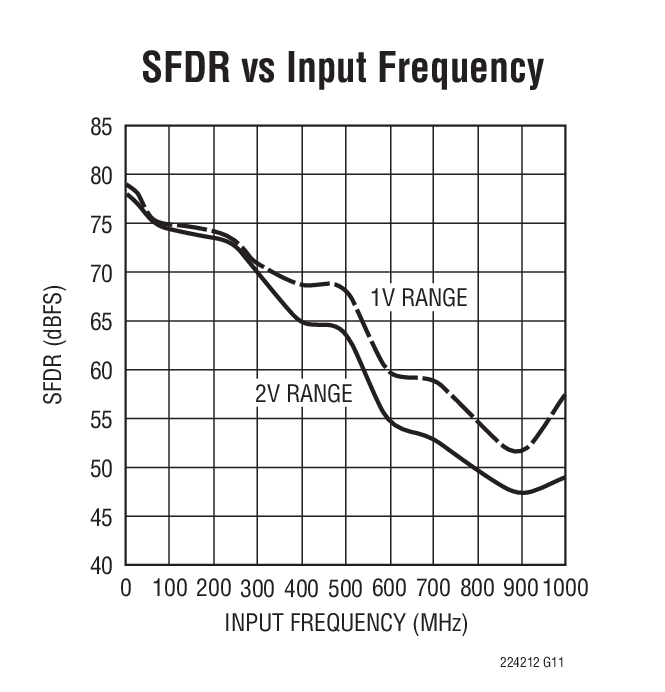

LTC2242-12	Integrated Circuits (ICs)	4	Active

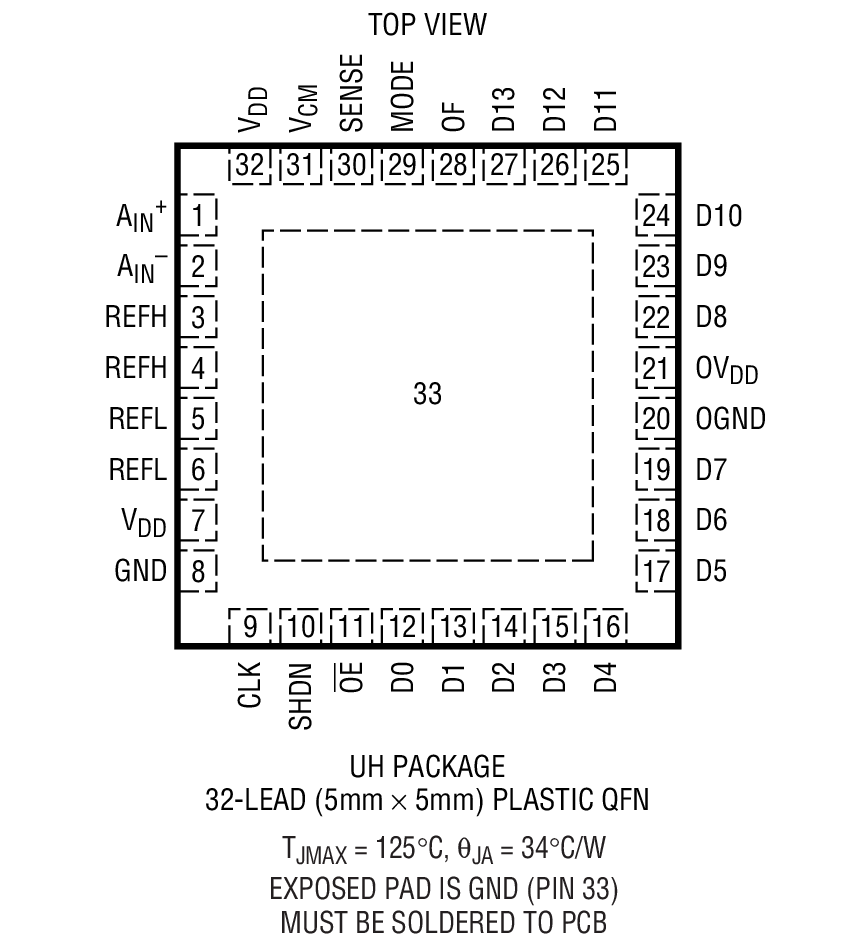

LTC2245	Data Acquisition	4	Active
LTC224614-Bit, 25Msps Low Power 3V ADCs	Data Acquisition	5	Active	The LTC2248/LTC2247/LTC2246 are 14-bit 65Msps/40Msps/25Msps, low power 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2248/LTC2247/LTC2246 are perfect for demanding imaging and communications applications with AC performance that includes 74.3dB SNR and 90dB SFDR for signals at the Nyquist frequency.DC specs include ±1LSB INL (typ), ±0.5LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1LSBRMS.A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic.A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.ApplicationsWireless and Wired Broadband CommunicationImaging SystemsUltrasoundSpectral AnalysisPortable Instrumentation

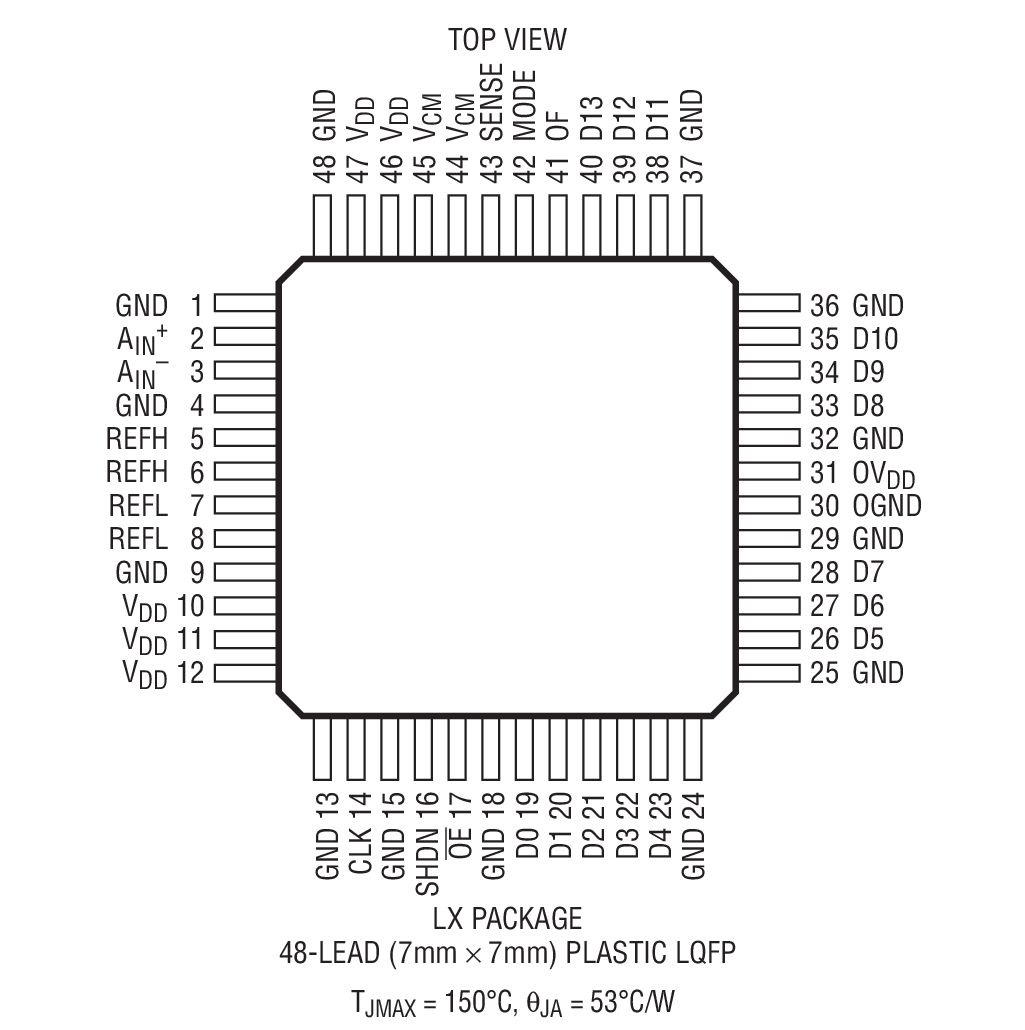

LTC2246H14-Bit, 25Msps 125°C ADC In LQFP	Data Acquisition	1	Active	The LTC2246H is a 14-bit 25Msps, low power 3V A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2246H is perfect for demanding imaging and communications applications with AC performance that includes 74.5dB SNR and 90dB SFDR.DC specs include ±1LSB INL (typ), ±0.5LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1LSBRMS.A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic.A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.ApplicationsAutomotiveIndustrialWireless and Wired Broadband Communication
LTC2247	Analog to Digital Converters (ADC)	4	Active

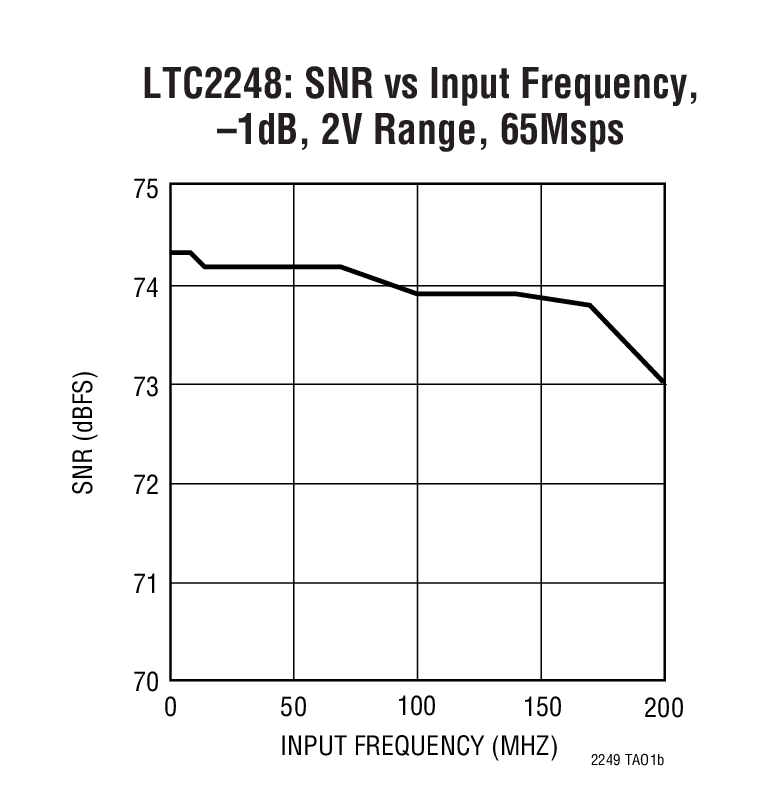

LTC224814-Bit, 65Msps Low Power 3V ADCs	Integrated Circuits (ICs)	4	Active	The LTC2248/LTC2247/LTC2246 are 14-bit 65Msps/40Msps/25Msps, low power 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2248/LTC2247/LTC2246 are perfect for demanding imaging and communications applications with AC performance that includes 74.3dB SNR and 90dB SFDR for signals at the Nyquist frequency.DC specs include ±1LSB INL (typ), ±0.5LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1LSBRMS.A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic.A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.ApplicationsWireless and Wired Broadband CommunicationImaging SystemsUltrasoundSpectral AnalysisPortable Instrumentation

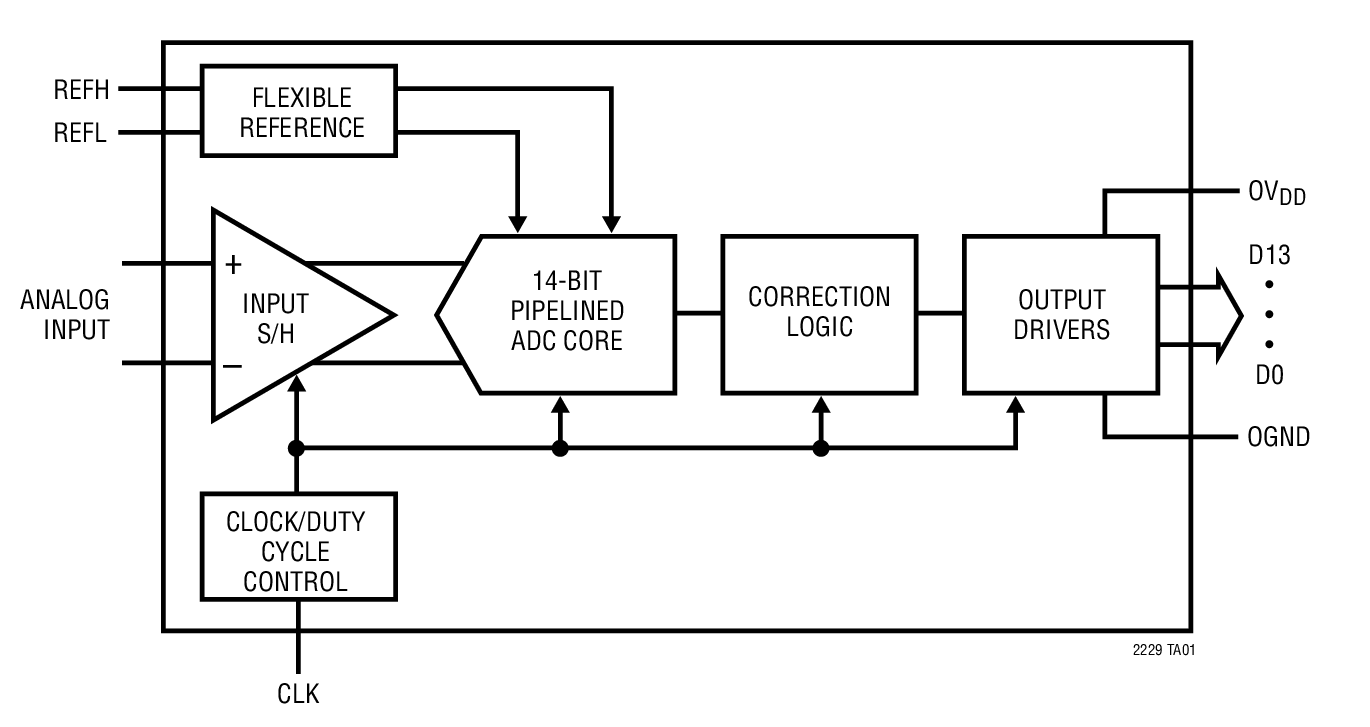

LTC224914-Bit, 80Msps Low Power 3V ADC	Analog to Digital Converters (ADC)	4	Active	The LTC2249 is a 14-bit 80Msps, low power 3V A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2249 is perfect for demanding imaging and communications applications with AC performance that includes 73dB SNR and 90dB SFDR for signals well beyond the Nyquist frequency.DC specs include ±1LSB INL (typ), ±0.5LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1.2LSBRMS.A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic.A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.ApplicationsWireless and Wired Broadband CommunicationImaging SystemsUltrasoundSpectral AnalysisPortable Instrumentation

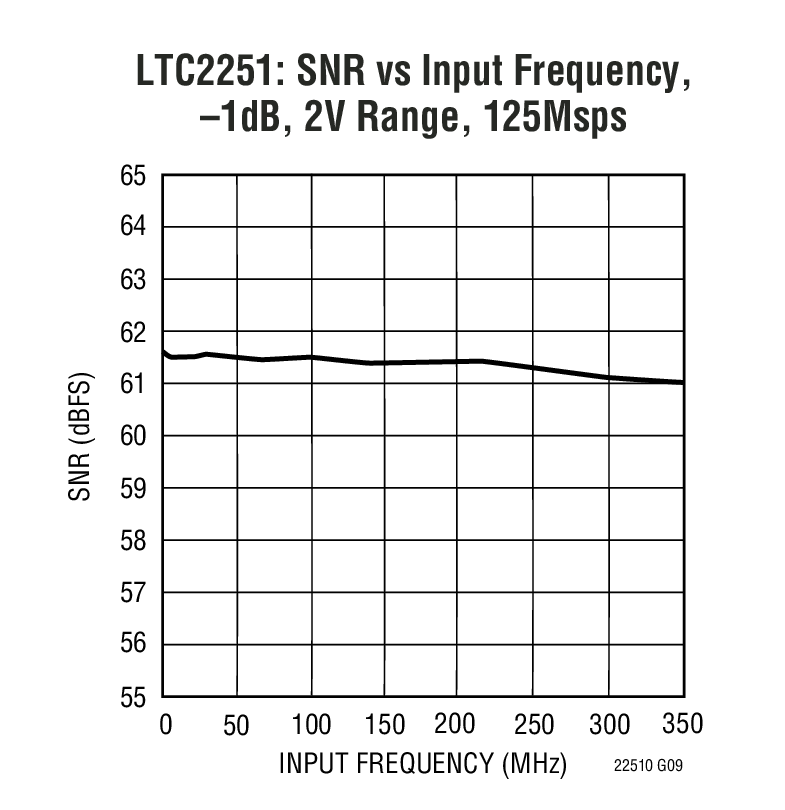

LTC225010-Bit, 105Msps Low Noise 3V ADCs	Analog to Digital Converters (ADC)	3	Active	The LTC2251/LTC2250 are 10-bit 125Msps/105Msps, low noise 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2251/LTC2250 are perfect for demanding imaging and communications applications with AC performance that includes 61.6dB SNR and 85dB SFDR for signals at the Nyquist frequency.DC specs include ±0.1LSB INL (typ), ±0.05LSB DNL (typ) and ±0.6LSB INL, ±0.6LSB DNL over temperature. The transition noise is a low 0.08LSBRMS.A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.3V logic.A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.ApplicationsWireless and Wired Broadband CommunicationImaging SystemsUltrasoundSpectral AnalysisPortable Instrumentation

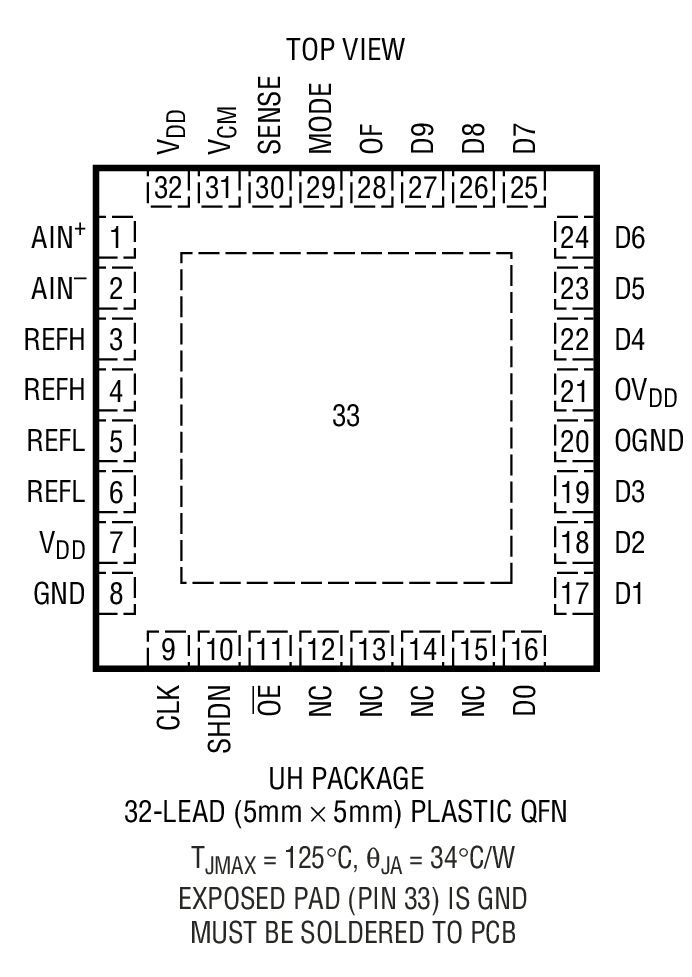

LTC225110-Bit, 125Msps Low Noise 3V ADCs	Data Acquisition	4	Active	The LTC2251/LTC2250 are 10-bit 125Msps/105Msps, low noise 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2251/LTC2250 are perfect for demanding imaging and communications applications with AC performance that includes 61.6dB SNR and 85dB SFDR for signals at the Nyquist frequency.DC specs include ±0.1LSB INL (typ), ±0.05LSB DNL (typ) and ±0.6LSB INL, ±0.6LSB DNL over temperature. The transition noise is a low 0.08LSBRMS.A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.3V logic.A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.ApplicationsWireless and Wired Broadband CommunicationImaging SystemsUltrasoundSpectral AnalysisPortable Instrumentation
LTC225212-Bit, 105Msps Low Power 3V ADCs	Data Acquisition	4	Active	The LTC2253/LTC2252 are 12-bit 125Msps/105Msps, low power 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2253/LTC2252 are perfect for demanding imaging and communications applications with AC performance that includes 70.1dB SNR and 85dB SFDR for signals at the Nyquist frequency.DC specs include ±0.3LSB INL (typ), ±0.15LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.32LSBRMS.A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.3V logic.A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.ApplicationsWireless and Wired Broadband CommunicationImaging SystemsUltrasoundSpectral AnalysisPortable Instrumentation
