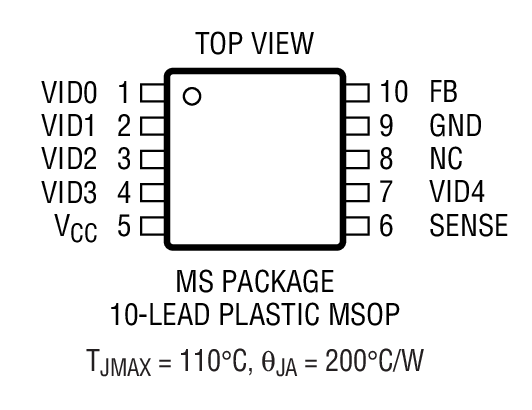

The LTC1706-82 is a precision, digitally programmed, resistive ladder which adjusts the output of any 0.8V referenced regulator. Depending on the state of the five VID inputs, an output voltage between 1.10V and 1.85V is programmed in 25mV increments.The LTC1706-82 is designed specifically to program ADI's entire family of DC/DC converters in full compliance with the Intel VRM9.0/9.1 specifications.The LTC1706-82 programs the following ADI's DC/DC converters: LTC1628, LTC1629, LTC1702, LTC1735, LTC1735-1, LTC1929 and LTC3729.For a compact VRM9.0/9.1 solution with up to 60A capability, see the LTC3732, a 3-phase synchronous controller with integrated 5-bit VID and MOSFET drivers.ApplicationsIntel Pentium®III Processor Power SupplyMultiprocessor Workstations and ServersMultiphase Processor Power SupplyAMD Athlon™Processor Power Supply

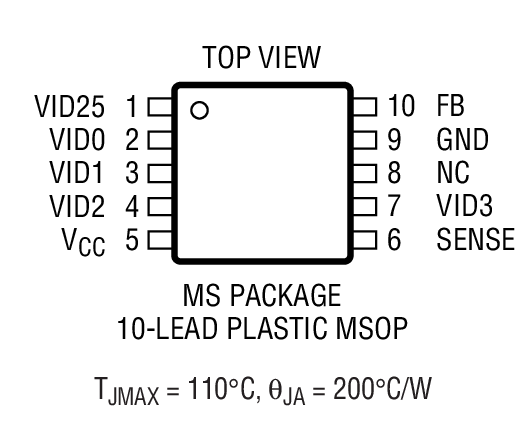

The LTC1706-85 is a precision, digitally programmed resistive ladder which adjusts the output of any 0.8V-referenced regulator. Depending on the state of the five VID inputs, an output voltage between 1.05V and 1.825V is programmed in 25mV increments.The LTC1706-85 is designed specifically to program ADI's entire family of DC/DC converters in full compliance with the Intel Voltage Regulator Module (VRM) 8.5 specification.The LTC1706-85 programs the following ADI DC/DC converter products: LTC1622, LTC1628, LTC1629, LTC1702, LTC1735, LTC1735-1, LTC1772, LTC1773, LTC1778, LTC1929, LTC3728 and LTC3729.Consult factory for additional DC/DC converter products compatible with the LTC1706-85.ApplicationsServer/Desktop ComputersMultiprocessor Workstations and ServersMultiphase Processor Power Supply

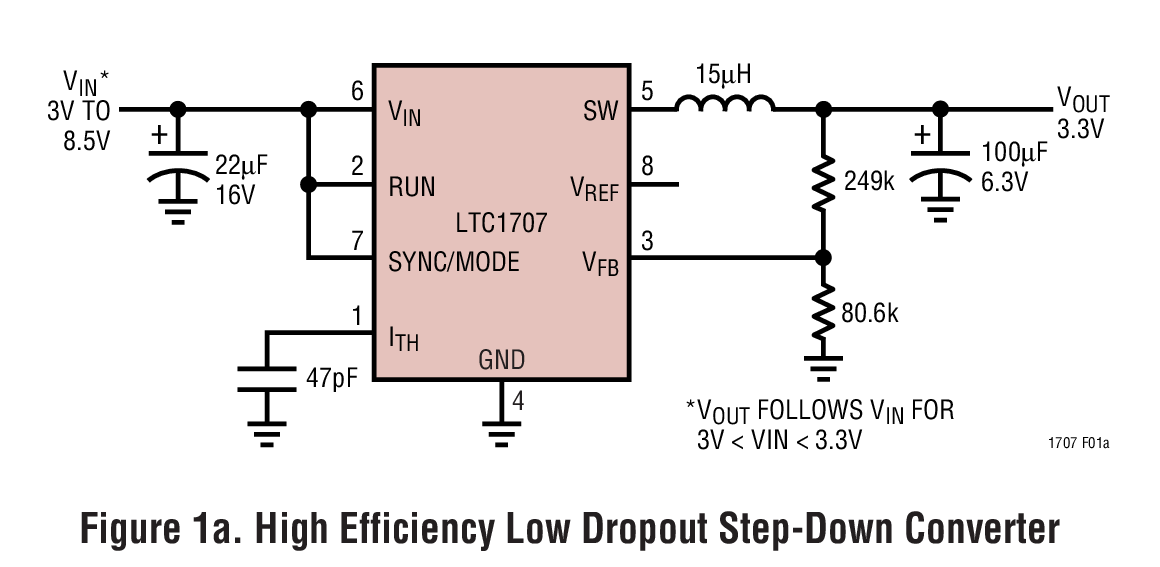

The LTC1707 is a high efficiency monolithic current mode synchronous buck regulator using a fixed frequency architecture. The operating supply range is from 8.5V down to 2.85V, making it suitable for both single and dual lithium-ion battery-powered applications. Burst Mode operation provides high efficiency at low load currents. 100% duty cycle provides low dropout operation, extending operating time in battery-powered systems.The switching frequency is internally set at 350kHz, allowing the use of small surface mount inductors. For noise sensitive applications it can be externally synchronized up to 550kHz. Burst Mode operation is inhibited during synchronization or when the SYNC/MODE pin is pulled low preventing low frequency ripple from interfering with audio circuitry. Soft-start is provided by an external capacitor.The internal synchronous MOSFET switch increases efficiency and eliminates the need for an external Schottky diode, saving components and board space. Low output voltages down to 0.8V are easily achieved due to the 0.8V internal reference. The LTC1707 comes in an 8-lead SO package.ApplicationsCellular TelephonesPortable InstrumentsWireless ModemsRF CommunicationsDistributed Power SystemsSingle and Dual Cell Lithium

The LTC1708 is a dual adjustable 5-bit VID programmable step-down switching regulator controller that drives all N-Channel power MOSFET stages. A constant frequency current mode architecture allows adjustment of the frequency up to 300kHz. Power loss and noise due to the ESR of the input capacitance are minimized by operating the two main controller output stages out of phase.OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The precision 0.8V reference is compatible with future microprocessor generations, and a wide 3.5V to 30V (36V maximum) input supply range that encompasses all battery chemistries. A power good output indicates when the output voltages are within 7.5% of their programmed value.A RUN/SS pin for each controller provides both soft-start and an optional timed, short-circuit shutdown. Other protection features include: internal foldback current limiting and an output overvoltage crowbar. The forced continuous control pin (FCB) can be used to inhibit BurstMode operation or to regulate a third, flyback output.ApplicationsNotebook and Palmtop Computers, PDAsPortable Instruments

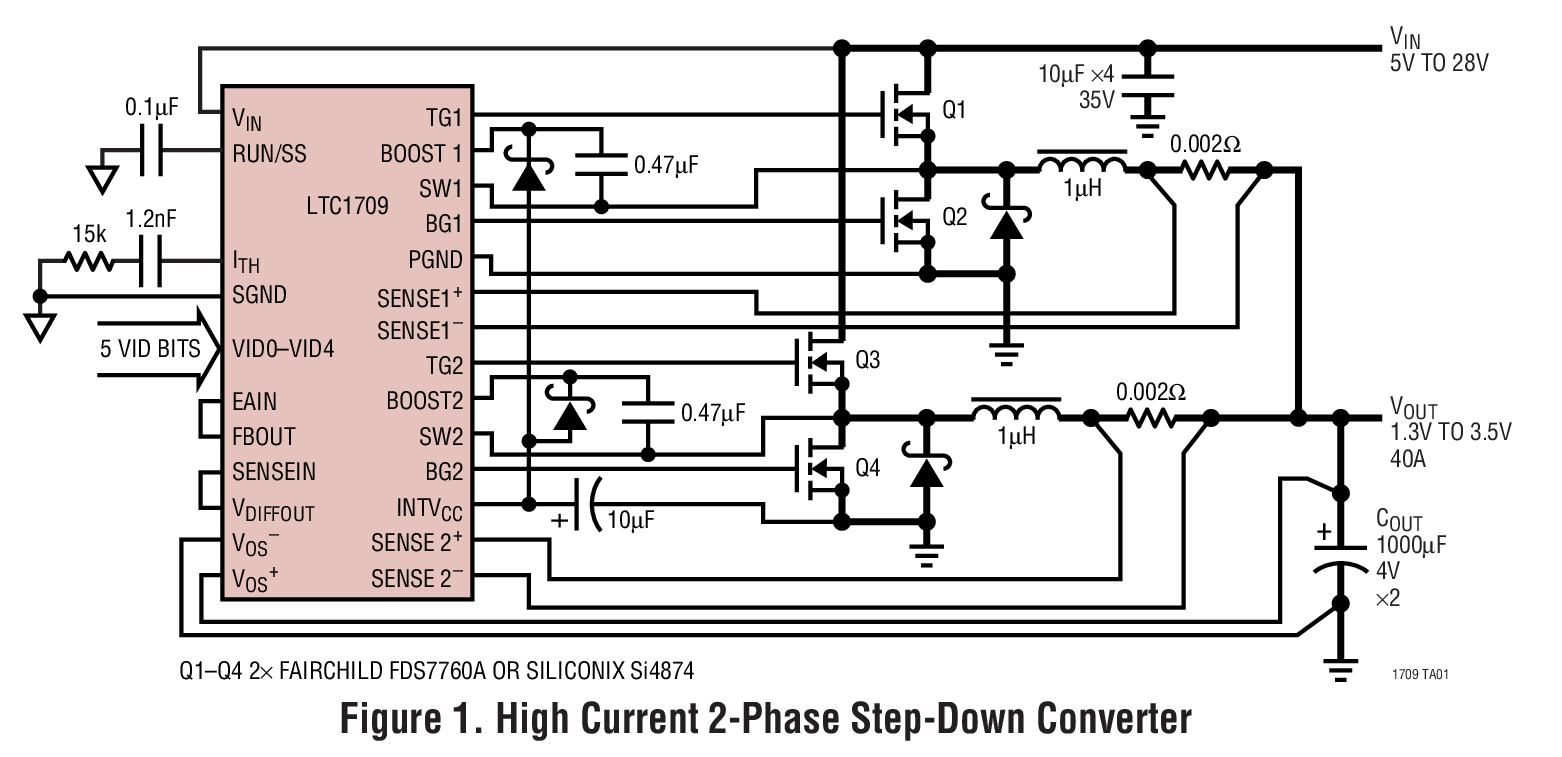

The LTC1709-8/LTC1709-9 are 2-phase, VID programmable, synchronous step-down switching regulator controllers that drive two all N-channel external power MOSFET stages in a fixed frequency architecture. The 2-phase controller drives its two output stages out of phase at frequencies from 150kHz to 300kHz to minimize the RMS ripple currents in both input and output capacitors. The 2-phase technique effectively multiplies the fundamental frequency by two, improving transient response while operating each channel at an optimum frequency for efficiency. Thermal design is also simplified.An internal differential amplifier provides true remote sensing of the regulated supply’s positive and negative output terminals as required for high current applications.The RUN/SS pin provides soft-start and optional timed, short-circuit shutdown. Current foldback limits MOSFET dissipation during short-circuit conditions when the overcurrent latchoff is disabled. OPTI-LOOP compensation allows the transient response to be optimized for a wide range of output capacitors and ESR values. The LTC1709-8/LTC1709-9 implement two different VID tables compliant with VRM8.4 and VRM9.0 respectively.Vout RangeVRMLTC17091.3V to 3.5VVRM8.4LTC1709-70.925V to 2VMobileLTC1709-81.3V to 3.5VVRM8.4LTC1709-851.05V to 1.825VVRM8.5LTC1709-91.1V to 1.85VVRM9.0ApplicationsWorkstationsInternet ServersLarge Memory ArraysDC Power Distribution Systems

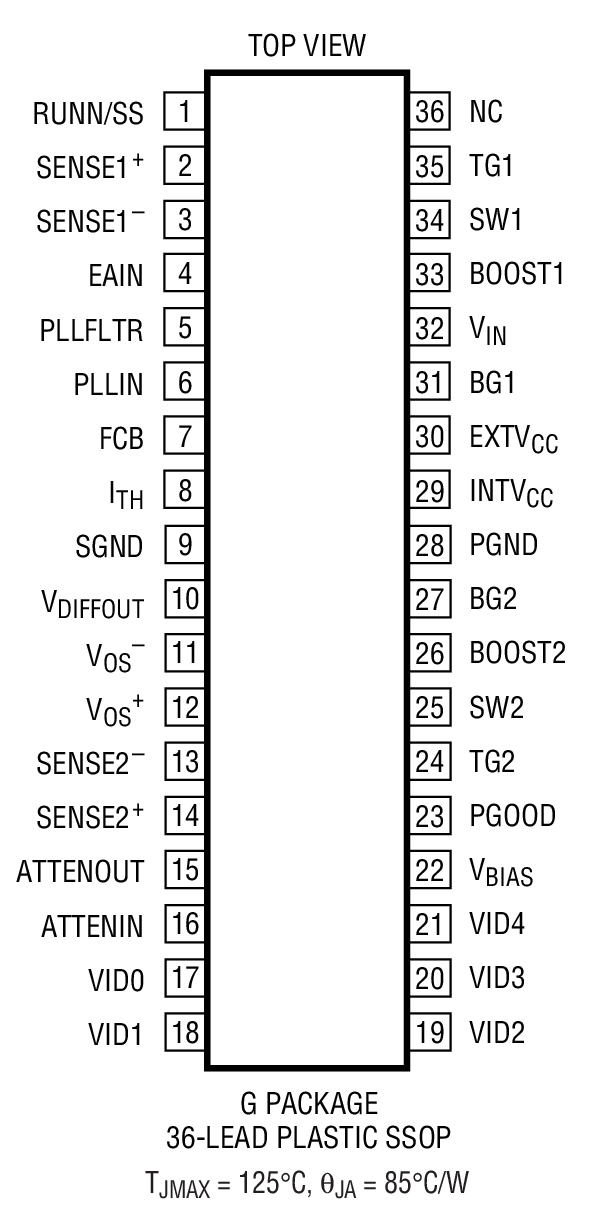

The LTC1709-7 is a 2-phase, VID programmable, synchronous step-down switching regulator controller that drives two all N-channel external power MOSFET stages in a fixed frequency architecture. The 2-phase controller drives its two output stages out of phase at frequencies up to 300kHz to minimize the RMS ripple currents in both input and output capacitors. The 2-phase technique effectively multiplies the fundamental frequency by two, improving transient response while operating each channel at an optimum frequency for efficiency. Thermal design is also simplified.An operating mode select pin (FCB) can be used to regulate a secondary winding or select among three modes including Burst Mode™operation for highest efficiency. An internal differential amplifier provides true remote sensing of the regulated supply’s positive and negative output terminals as required in high current applications.The RUN/SS pin provides soft-start and optional timed, short-circuit shutdown. Current foldback limits MOSFET dissipation during short-circuit conditions when the overcurrent latchoff is disabled. OPTI-LOOP compensation allows the transient response to be optimized for a wide range of output capacitors and ESR values.Vout RangeVRMLTC17091.3V to 3.5VVRM8.4LTC1709-70.925V to 2VMobileLTC1709-81.3V to 3.5VVRM8.4LTC1709-851.05V to 1.825VVRM8.5LTC1709-91.1V to 1.85VVRM9.0ApplicationsMobile/Desktop ComputersInternet ServersLarge Memory ArraysDC Power Distribution Systems

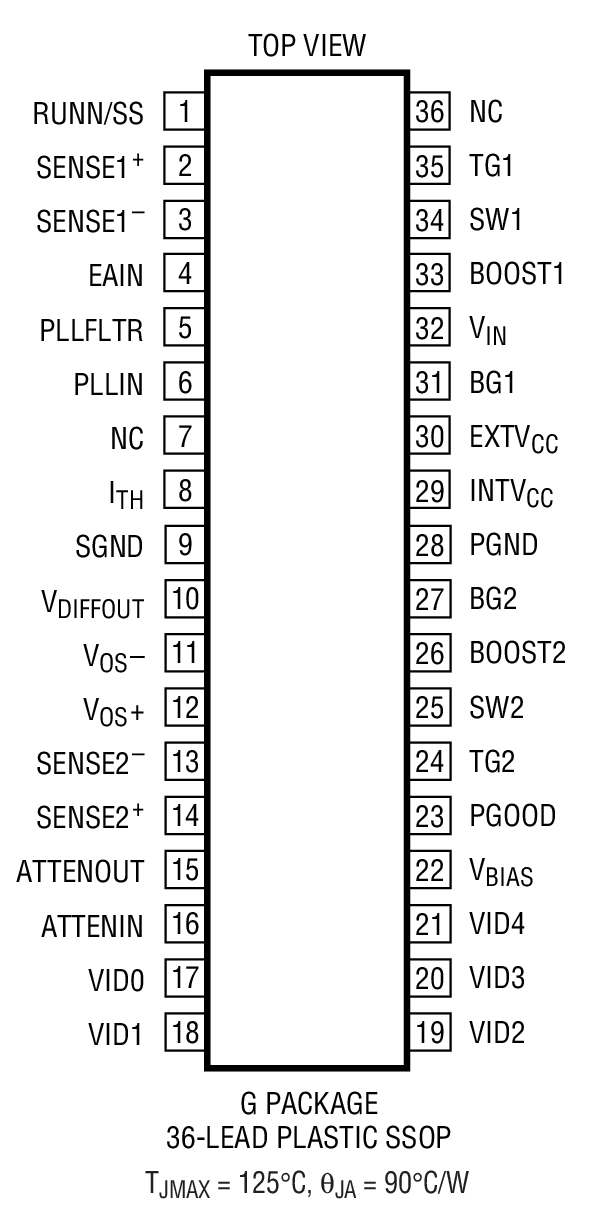

The LTC1709-8/LTC1709-9 are 2-phase, VID programmable, synchronous step-down switching regulator controllers that drive two all N-channel external power MOSFET stages in a fixed frequency architecture. The 2-phase controller drives its two output stages out of phase at frequencies from 150kHz to 300kHz to minimize the RMS ripple currents in both input and output capacitors. The 2-phase technique effectively multiplies the fundamental frequency by two, improving transient response while operating each channel at an optimum frequency for efficiency. Thermal design is also simplified.An internal differential amplifier provides true remote sensing of the regulated supply’s positive and negative output terminals as required for high current applications.The RUN/SS pin provides soft-start and optional timed, short-circuit shutdown. Current foldback limits MOSFET dissipation during short-circuit conditions when the overcurrent latchoff is disabled. OPTI-LOOP compensation allows the transient response to be optimized for a wide range of output capacitors and ESR values. The LTC1709-8/LTC1709-9 implement two different VID tables compliant with VRM8.4 and VRM9.0 respectively.Vout RangeVRMLTC17091.3V to 3.5VVRM8.4LTC1709-70.925V to 2VMobileLTC1709-81.3V to 3.5VVRM8.4LTC1709-851.05V to 1.825VVRM8.5LTC1709-91.1V to 1.85VVRM9.0ApplicationsWorkstationsInternet ServersLarge Memory ArraysDC Power Distribution Systems

The LTC1709-85 is a 2-phase, VID programmable, synchronous step-down switching regulator controller that drives two all N-channel external power MOSFET stages in a fixed frequency architecture. The 2-phase controller drives its two output stages out of phase at frequencies up to 300kHz to minimize the RMS ripple currents in both input and output capacitors. The 2-phase technique effectively multiplies the fundamental frequency by two, improving transient response while operating each channel at an optimum frequency for efficiency. Thermal design is also simplified.An operating mode select pin (FCB) can be used to select among three modes including Burst Mode®operation for highest efficiency. An internal differential amplifier provides true remote sensing of the regulated supply’s positive and negative output terminals as required in high current applications.The RUN/SS pin provides soft-start and optional timed, short-circuit shutdown. Current foldback limits MOSFET dissipation during short-circuit conditions when the overcurrent latchoff is disabled. OPTI-LOOP compensation allows the transient response to be optimized for a wide range of output capacitors and ESR values.Vout RangeVRMLTC17091.3V to 3.5VVRM8.4LTC1709-70.925V to 2VMobileLTC1709-81.3V to 3.5VVRM8.4LTC1709-8.51.05V to 1.825VVRM8.5LTC1709-91.1V to 1.85VVRM9.0ApplicationsServer/Desktop ComputersInternet ServersLarge Memory ArraysDC Power Distribution Systems

The LTC1709-8/LTC1709-9 are 2-phase, VID programmable, synchronous step-down switching regulator controllers that drive two all N-channel external power MOSFET stages in a fixed frequency architecture. The 2-phase controller drives its two output stages out of phase at frequencies from 150kHz to 300kHz to minimize the RMS ripple currents in both input and output capacitors. The 2-phase technique effectively multiplies the fundamental frequency by two, improving transient response while operating each channel at an optimum frequency for efficiency. Thermal design is also simplified.An internal differential amplifier provides true remote sensing of the regulated supply’s positive and negative output terminals as required for high current applications.The RUN/SS pin provides soft-start and optional timed, short-circuit shutdown. Current foldback limits MOSFET dissipation during short-circuit conditions when the overcurrent latchoff is disabled. OPTI-LOOP compensation allows the transient response to be optimized for a wide range of output capacitors and ESR values. The LTC1709-8/LTC1709-9 implement two different VID tables compliant with VRM8.4 and VRM9.0 respectively.Vout RangeVRMLTC17091.3V to 3.5VVRM8.4LTC1709-70.925V to 2VMobileLTC1709-81.3V to 3.5VVRM8.4LTC1709-851.05V to 1.825VVRM8.5LTC1709-91.1V to 1.85VVRM9.0ApplicationsWorkstationsInternet ServersLarge Memory ArraysDC Power Distribution Systems
