The LTC1454/LTC1454L are complete single supply, dual rail-to-rail voltage output, 12-bit digital-to-analog converters (DACs) in a 16-lead SO package. They include an output buffer amplifier with variable gain (×1 or ×2) and an easy-to-use 3-wire cascadable serial interface.The LTC1454 has an on board reference of 2.048V and a full-scale output of 4.095V in a ×2 gain configuration. It operates from a single 4.5V to 5.5V supply.The LTC1454L has an on board 1.22V reference and a full-scale output of 2.5V in a ×2 gain configuration. It operates from a single 2.7V to 5.5V supply.Low power supply current, excellent DNL and small size allow these parts to be used in a host of applications where size, DNL and single supply operation are important.ApplicationsDigital CalibrationIndustrial Process ControlAutomatic Test EquipmentCellular Telephones

The LTC1458/LTC1458L are complete single supply, quad rail-to-rail voltage output, 12-bit digital-to-analog converters (DACs) in SO-28 and SSOP-28 packages.They include an output buffer amplifier with variable gain (×1 or ×2) and an easy-to-use 3-wire cascadable serial interface.The LTC1458 has an on-board reference of 2.048V and a full-scale output of 4.095V in a ×2 gain configuration. It operates from a single 4.5V to 5.5V supply dissipating only 5.5mW (ICC= 1.1mA typ).The LTC1458L has an onboard 1.22V reference and a full-scale output of 2.5V in a ×2 gain configuration. It operates from a single supply of 2.7V to 5.5V dissipating 2.4mW.Excellent DNL, low supply current and a wide range of built-in functions allow these parts to be used in a host of applications when flexibility, power and single supply operation are important.ApplicationsDigital CalibrationIndustrial Process ControlAutomatic Test EquipmentLow Power Systems

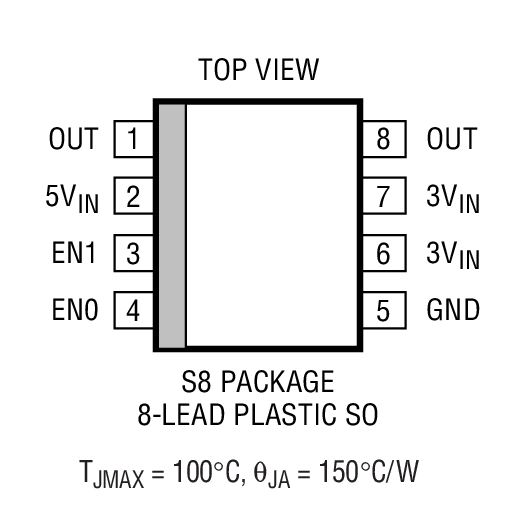

The LTC1470 switches the VCCpins of a Personal Computer Memory Card International Association (PCMCIA) card slot between three operating states: OFF, 3.3V and 5V. Two low RDS(ON)N-channel power MOSFETs are driven by a built-in charge pump which generates a voltage higher than the supply voltage to fully enhance each switch when selected by the input control logic.The LTC1470 inputs are compatible with industry standard PCMCIA controllers. A built-in XOR ensures that both switches are never on at the same time. This function also makes the LTC1470 compatible with both active-low and active-high controllers (see Applications Information section). The switch rise times are controlled to eliminate power supply glitching.The LTC1470 features built-in SafeSlot™current limit and thermal shutdown. The output is limited to 1A during short circuit to ground but 2A of peak operating current is allowed.The LTC1471 is a dual version of the LTC1470 and is available in a 16-pin SO package.ApplicationsNotebook ComputersPalmtop ComputersPen-Based ComputersHandi-TerminalsPC Card Reader/Writers3.3V/5V Power Supply Switch

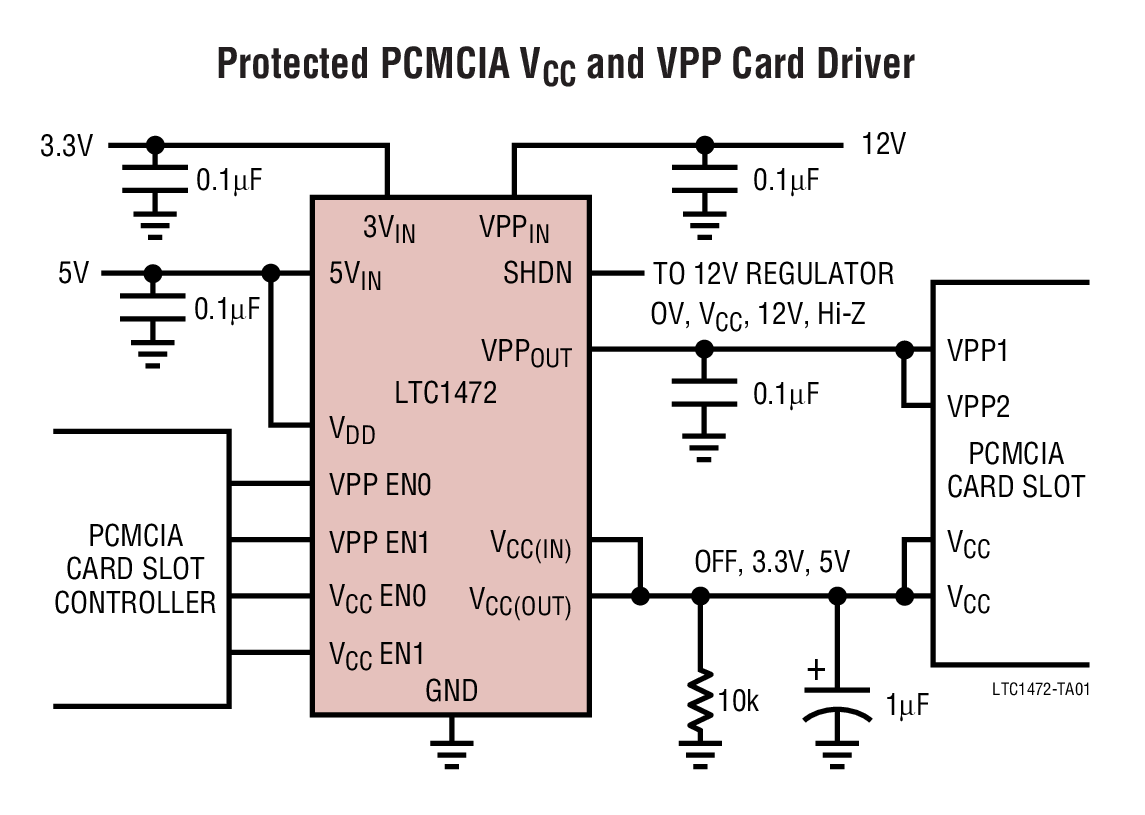

The LTC1472 switching matrix routes power to both the VCCand VPP power supply pins of the PCMCIA compatible card socket. The VCCoutput of the LTC1472 is switched between three operating states: OFF, 3.3V, and 5V. The VPP output is switched between four operating states: 0V, VCC, 12V, and Hi-Z. The output voltages are selected by two sets of digital inputs which are compatible with industry standard PC Card controllers (see Truth Tables).The Vcc output of the LTC1472 can supply up to 1A of current and the VPP output up to 120mA. Both switches have built-in SafeSlot™current limiting and thermal shutdown to protect the card, socket and power supply against accidental short-circuit conditions.The LTC1472 is designed to conserve power by automatically dropping to 1µA standby current when the two outputs are switched OFF. A shutdown pin is provided which holds the external 12V regulator in standby mode except when required for VPP power.The LTC1472 is available in 16-pin SO.ApplicationsNotebook ComputersPalmtop ComputersPen-Based ComputersHandi-TerminalsBar-Code Readers

The LTC1473L provides reliable and efficient switching between two DC power sources. This device drives two external sets of back-to-back N-channel MOSFET switches to route power to the input of a low voltage system. An internal boost regulator provides the voltage to fully enhance the logic-level N-channel MOSFET switches while an internal undervoltage lock-out circuit keeps the system alive down to 2.8V.The LTC1473L senses current to limit inrush between the batteries and the system supply capacitor during switch-over transitions or during fault conditions. A user-programmable timer monitors the time the MOSFET switches are in current limit and latches them off when the programmed time is exceeded.A unique "2-diode" logic mode ensures system start-up regardless of which input receives power first.ApplicationsPortable ComputersPortable InstrumentsFault Tolerant ComputersBattery-Backup Systems3.3V/5V Power Management
