| Digital to Analog Converters (DAC) | 9 | Active | |
AD7542Precision 12-Bit CMOS Multiplying IOUTDAC, 4-Bit Bus | Digital to Analog Converters (DAC) | 16 | Active | The AD7542 is a precision 12-bit CMOS multiplying DAC designed for direct interface to 4- or 8-bit microprocessors.The functional diagram shows the AD7542 to consist of three 4-bit data registers, a 12-bit DAC register, address decoding logic and a 12-bit CMOS multiplying DAC. Data is loaded into the data registers in three 4-bit bytes, and subsequently transferred to the 12-bit DAC register. All data loading or data transfer operations are identical to the WRITE cycle of a static RAM. A clear input allows the DAC register to be easily reset to all zeros when powering up the device. |
| Integrated Circuits (ICs) | 21 | Active | |

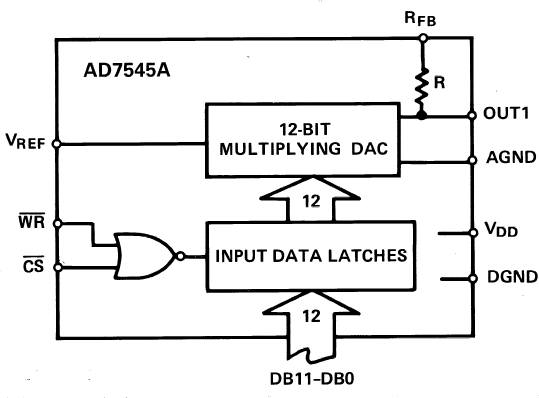

AD7545CMOS 12-Bit Buffered Multiplying DAC With Onboard Data Latches | Integrated Circuits (ICs) | 25 | Active | The AD7545A, a 12-bit CMOS multiplying DAC with internal data latches, is an improved version of the industry standard AD7545. This new design features a WR pulse width of 100 ns which allows interfacing to a much wider range of fast 8-bit and 16-bit microprocessors. It is loaded by a single 12-bit-wide word under the control of the CS and WR inputs; tying these control inputs low makes the input latches transparent allowing unbuffered operation of the DAC. |
AD7545ACMOS 12-Bit Buffered Multiplying DAC With Internal Data Latches | Integrated Circuits (ICs) | 7 | Active | The AD7545A, a 12-bit CMOS multiplying DAC with internal data latches, is an improved version of the industry standard AD7545. This new design features a WR pulse width of 100 ns which allows interfacing to a much wider range of fast 8-bit and 16-bit microprocessors. It is loaded by a single 12-bit-wide word under the control of the CS and WR inputs; tying these control inputs low makes the input latches transparent allowing unbuffered operation of the DAC. |
AD7547Dual 12-Bit CMOS DAC with Parallel Load Input Structure | Data Acquisition | 19 | Active | The AD7547 contains two 12-bit current output DACs on one monolithic chip. Also on-chip are the level shifters, data registers and control logic for easy microprocessor interfacing. There are 12 data inputs.CSA,CSB,WRcontrol DAC selection and loading. Data is latched into the DAC registers on the rising edge of WR. The device is speed compatible with most microprocessors and accepts TTL, 74HC and 5V CMOS logic level inputs.The D/A converters provide 4-quadrant multiplication capabilities with separate reference inputs and feedback resistors. Monolithic construction ensures that thermal and gain error tracking is excellent. 12-bit monotonicity is guaranteed for both DACs over the full temperature range.The AD7547 is manufactured using the Linear Compatible CMOS (LC2MOS) process. This allows fast digital logic and precision linear circuitry to be fabricated on the same die.APPLICATIONSAutomatic Test EquipmentProgrammable FiltersAudio ApplicationsSynchro ApplicationsProcess Control |
| Digital to Analog Converters (DAC) | 17 | Active | |
| Digital to Analog Converters (DAC) | 10 | Active | |
| Digital to Analog Converters (DAC) | 13 | Active | |
| Digital to Analog Converters (DAC) | 5 | Active | |
