The LT3745-1 integrates a 16-channel LED driver with a 55V buck controller. The LED driver lights up to 75mA/36V of LEDs in series per channel, and the buck controller generates an adaptive bus voltage supplying the parallel LED strings. Each channel has individual 6-bit dot correction current adjustment and 12-bit grayscale PWM dimming. Both dot correction and grayscale are accessible via a serial data interface in LVDS logic. A ±4% LED current matching and a 0.5μs minimum LED on-time can be achieved at 50mA per channel.The LT3745-1 performs full diagnostic and protection against open/short LED and overtemperature fault. The fault status is sent back through the serial data interface. The 30MHz fully buffered, cascadable LVDS serial data interface makes the chip extremely suitable for large screen LCD dynamic backlighting and mono-, multi-, full-color LED displays. The LT3745 uses a TTL/CMOS serial data interface instead of LVDS.ApplicationsLarge Screen Display LED BacklightingMono-, Multi-, Full-Color LED DisplaysLED Billboards and Signboards

The LT3748 is a switching regulator controller specifically designed for the isolated flyback topology and capable of high power. It drives a low side external N-channel power MOSFET from an internally regulated 7V supply. No third winding or opto-isolator is required for regulation as the part senses the isolated output voltage directly from the primary-side flyback waveform.The LT3748 utilizes boundary mode to provide a small magnetic solution without compromising load regulation. Operating frequency is set by load current and transformer magnetizing inductance. The gate drive of the LT3748 combined with a suitable external MOSFET allow it to deliver load power up to several tens of watts from input voltages as high as 100V.The LT3748 is available in a high voltage 16-lead MSOP package with four leads removed.ApplicationsIsolated Telecom ConvertersHigh Power Automotive SuppliesIsolated Industrial Power SuppliesMilitary and High Temperature Applications

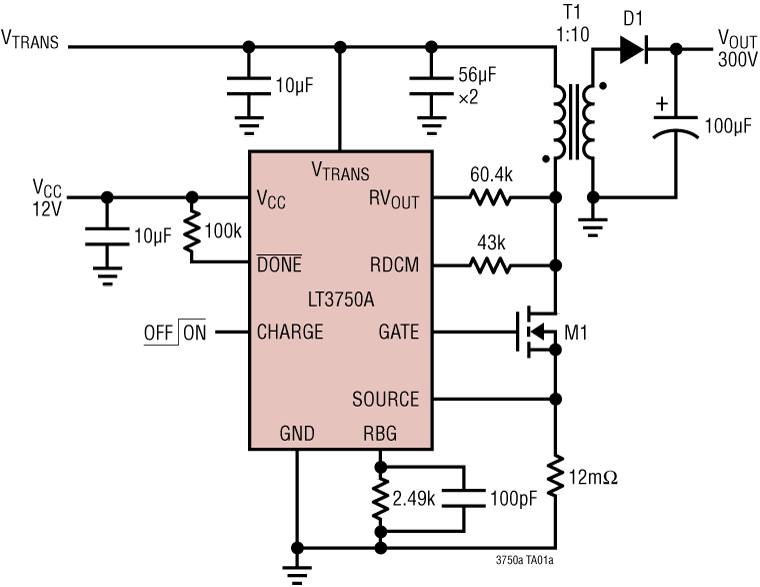

The LT3750A is a flyback converter designed to rapidly charge large capacitors to a user-adjustable target volt-age. A patented boundary mode control scheme* minimizes transition losses and reduces transformer size. The transformer turns ratio and two external resistors easily adjust the output voltage.* A low 78mV current sense accurately limits peak switch current and also helps to maximize efficiency. With a wide input voltage range, the LT3750A can operate from a variety of power sources. A typical application can charge a 100μF capacitor to 300V in less than 300ms.The CHARGE pin gives full control of the LT3750A to the user. TheDONEpin indicates when the capacitor has reached its programmed value and the part has stopped charging.APPLICATIONSEmergency Warning BeaconsProfessional Photoflash SystemsSecurity/Inventory Control SystemsHigh Voltage Power SupplyElectric FencesDetonatorsAll registered trademarks and trademarks are the property of their respective owners.*Protected by U.S. patents, including 6518733, 6636021.
