The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Analog Devices Are Now ObsoleteThe LT117A Series are 3-terminal positive adjustable voltage regulators which offer improved performance over earlier devices. A major feature of the LT117A is the output voltage tolerance is guaranteed at a maximum of ±1%, allowing an overall power supply tolerance to be better than 3% using inexpensive 1% resistors. Line and load regulation performance has been improved as well. Additionally, the LT117A reference voltage is guaranteed not to exceed 2% when operating over the full load, line and power dissipation conditions. The LT117A adjustable regulators offer an improved solution for all positive voltage regulator requirements with load currents up to 1.5 amps. For performance curves and applications circuits see the LT117A series data sheet.ApplicationsWide Range Power SuppliesConstant Current SuppliesVoltage Programmable Supplies

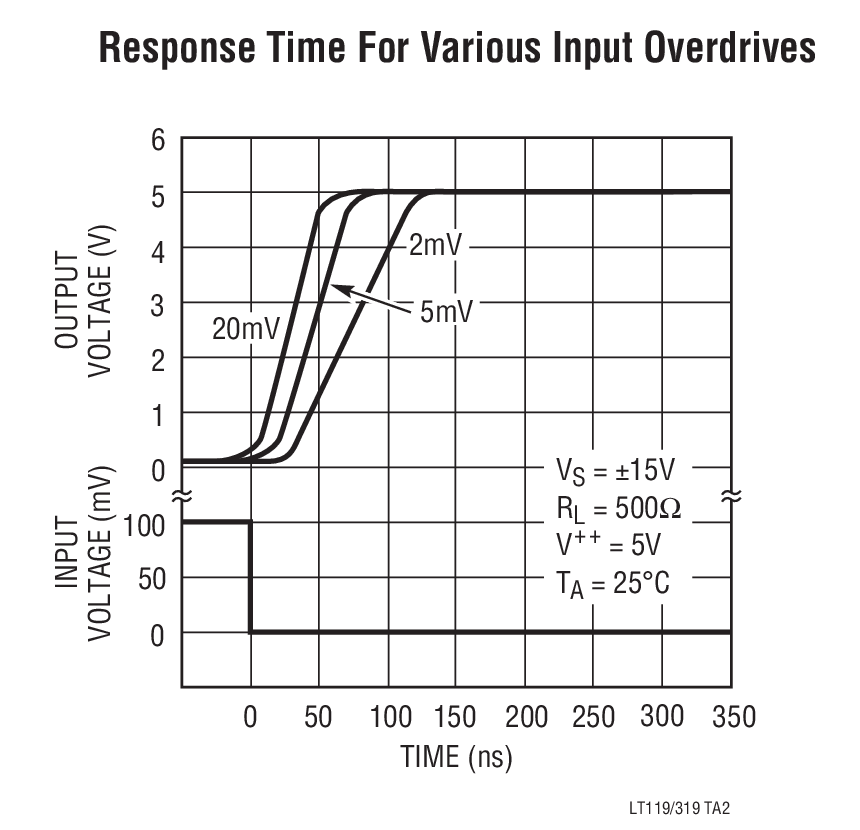

The LT119A is an improved version of the LM119 dual comparator. It features lower input offset voltage and offset current, higher voltage gain, guaranteed common mode rejection and input protection diodes.The LT119A is capable of operation over a supply range from 5V to ± 15V and can drive 25mA loads from each open collector output. A separate ground pin allows the LT119A to isolate system grounds.Advanced processing, design techniques and reliability make the LT119A/LT319A an ideal choice over previous devices in most comparator applications.ApplicationsWindow DetectorsHigh Speed One ShotRelay/Lamp DriversVoltage Controlled Oscillators

The "K" Package has been ObsoletedThe LT123A/LT323A is an improved version of the popular LM123/LM323 5 Volt, 3 Amp Regulator. These new devices offer maximum initial output voltage tolerance of 1% and maintain a maximum tolerance of 3% over worst case operating conditions. Line and load regulation are also improved by a factor of 2. These tightened specifications ease design and application problems since safety margins are improved. Also, error budgets in other parts of the system can be expanded, and output voltages at the end of long supply runs can be more accurately maintained.The LT123A/LT323A incorporates ADI's advanced design, process and test techniques for improved quality and reliability over similar device types. Specifically, all devices are burned in by shorting the output, thereby forcing the regulator into its current limit and eventually, thermal limit. This ensures that all device protection features are functional. A graph of the worst case output voltage, taking into account temperature, load and line variations, and power dissipation is shown below. For higher output current requirements, see the LT1003, 5V, 5A regulator data sheet.ApplicationsLocal 5V RegulatorsOn Card RegulationLab SuppliesInstrumentation Supplies

The LT3380 is a complete power management solution for advanced portable application processor-based systems. The device contains four synchronous step-down DC/DC converters for core, memory, I/O, and system onchip (SoC) rails and three 300mA LDO regulators for low noise analog supplies. An I2C serial port may be used to control regulator enables, power-down sequencing, output voltage levels, dynamic voltage scaling, operating modes, and status reporting.Regulator start-up is sequenced by connecting outputs to enable pins in the desired order or via the I2C port. The LT3380 outputs may be sequenced off in one of four time slots selected using I2C command registers.The device is available in a 40-lead 6mm × 6mm QFN with wettable flanks for optical inspection.APPLICATIONSAutomotiveIndustrialCommunicationsGeneral Purpose Multichannel Power Supplies

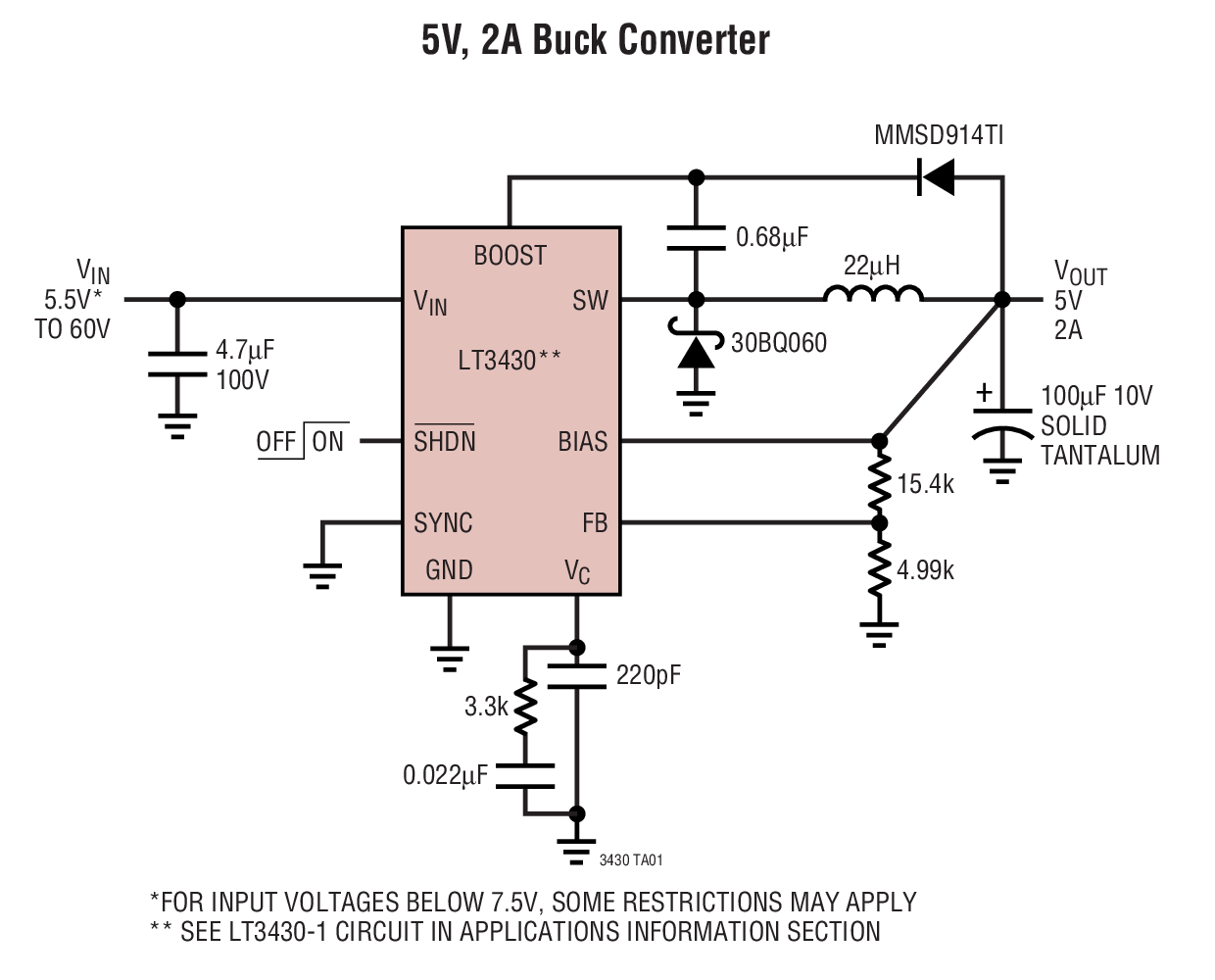

The LT3430/LT3430-1 are monolithic buck switching regulators that accept input voltages up to 60V. A high efficiency 3A, 0.1Ω switch is included on the die along with all the necessary oscillator, control and logic circuitry. A current mode architecture provides fast transient response and excellent loop stability.Special design techniques and a new high voltage process achieve high efficiency over a wide input range. Efficiency is maintained over a wide output current range by using the output to bias the circuitry and by utilizing a supply boost capacitor to saturate the power switch. Patented circuitry* maintains peak switch current over the full duty cycle range. A shutdown pin reduces supply current to 30µA and a SYNC pin can be externally synchronized with a logic level input from 228kHz to 700kHz for the LT3430 or from 125kHz to 250kHz for the LT3430-1.The LT3430/LT3430-1 are available in a thermally enhanced 16-pin TSSOP package.ApplicationsIndustrial and Automotive Power SuppliesPortable ComputersBattery ChargersDistributed Power Systems
