| Amplifiers | 14 | Active | |
LT1993800MHz Low Distortion, Low Noise Differential Amplifier ADC Driver (Av = 2V/V) | Special Purpose Amplifiers | 9 | Active | The LT1993-10 is a low distortion, low noise Differential Amplifier/ADC driver for use in applications from DC to 700MHz. The LT1993-10 has been designed for ease of use, with minimal support circuitry required. Exceptionally low input-referred noise and low distortion products (with either single-ended or differential inputs) make the LT1993-10 an excellent solution for driving high speed 12-bit and 14-bit ADCs. In addition to the normal unfiltered outputs (+OUT and -OUT), the LT1993-10 has a built-in 175MHz differential lowpass filter and an additional pair of filtered outputs (+OUTFILTERED, -OUTFILTERED) to reduce external filtering components when driving high speed ADCs. The output common mode voltage is easily set via the VOCMpin, eliminating either an output transformer or AC-coupling capacitors in many applications.The LT1993-10 is designed to meet the demanding requirements of communications transceiver applications. It can be used as a differential ADC driver, a general-purpose differential gain block, or in any other application requiring differential drive. The LT1993-10 can be used in data acquisition systems required to function at frequencies down to DC.The LT1993-10 operates on a 5V supply and consumes 100mA. It comes in a compact 16-lead 3 × 3 QFN package and operates over a -40°C to 85°C temperature range.ApplicationsDifferential ADC Driver for:ImagingCommunicationsDifferential Driver/ReceiverSingle Ended to Differential ConversionDifferential to Single Ended ConversionLevel ShiftingIF Sampling ReceiversSAW Filter Interfacing/Buffering |
| Linear | 7 | Active | |

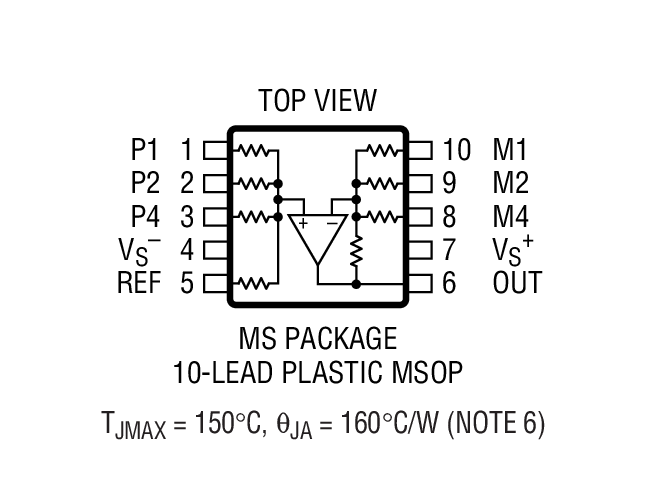

LT199532MHz, 1000V/µs Gain Selectable Amplifier | Instrumentation, Op Amps, Buffer Amps | 4 | Active | The LT1995 is a high speed, high slew rate, gain selectable amplifier with excellent DC performance. Gains from -7 to 8 with a gain accuracy of 0.2% can be achieved using no external components. The device is particularly well suited for use as a difference amplifier, where the excellent resistor matching results in a typical common mode rejection ratio of 79dB or more.The amplifier is a single gain stage design similar to the LT1363 and features superb slewing and settling characteristics. Input offset of the internal operational amplifier is less than 2.5mV and the slew rate is 1000V/µs. The output can drive a 150Ω load to ±2.5V on ±5V supplies, making it useful in cable driver applications.The resistors have excellent matching, 0.2% maximum at room temperature and 0.3% from -40°C to 85°C. The temperature coefficient of the resistors is typically -30ppm/°C. The resistors are extremely linear with voltage, resulting in a gain nonlinearity of 10ppm.The LT1995 is fully specified at ±2.5V, ±5V and ±15V supplies and from -40°C to 85°C. The device is available in space saving 10-lead MSOP and 10-Lead (3mm × 3mm) DFN packages. For a micropower precision amplifier with precision resistors, see the LT1991 and LT1996.ApplicationsInstrumentation AmplifierCurrent Sense AmplifierVideo Difference AmplifierAutomatic Test Equipment |
| Linear | 9 | Active | |

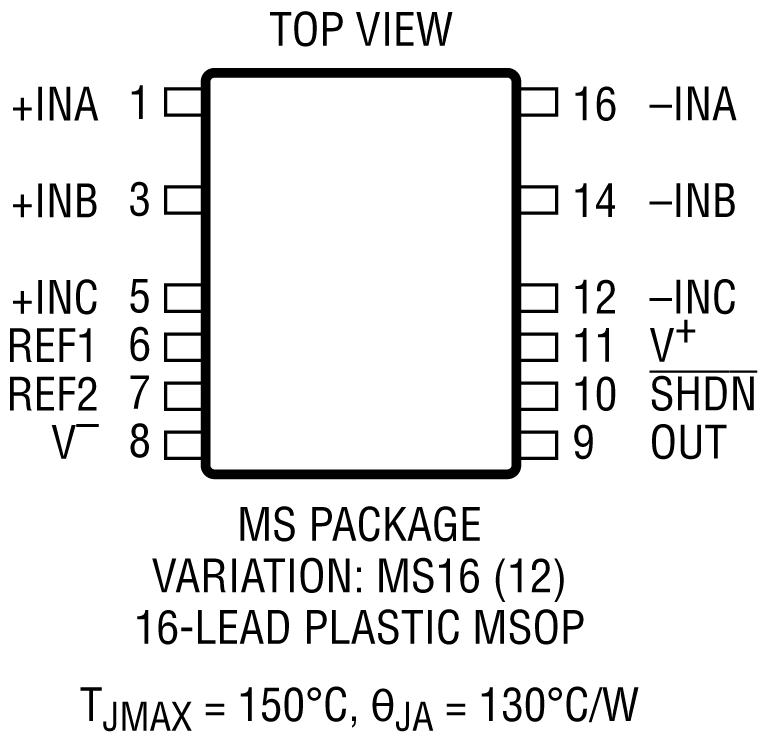

LT1997Precision, High Voltage, Gain Selectable Difference/Current Sense Amplifier | Amplifiers | 12 | Active | The LT1997-1 is a difference amplifier that can be used to amplify small differential signals while rejecting large common mode signals making it an ideal choice for current sense applications. It combines a precision operational amplifier with highly-matched resistors to form a one-chip solution to amplify and level shift voltages accurately using no external components. It comes with three standard pin-selectable gain options (10, 20 and 50), which can be further combined to form gains from 0.141 to 80 with accuracy of 0.012% (120ppm). The LT1997-1 also operates with input voltages between V–and V–+ 76V (independent of V+), enabling robust operation in demanding industrial environments. Its excellent resistor matching results in a common mode rejection ratio of greater than 109dB (Gain = 10).The resistors maintain their excellent matching over temperature; the matching temperature coefficient is guaranteed less than 1ppm/°C. The resistors are extremely linear with voltage, resulting in a gain nonlinearity of less than 2ppm.The LT1997-1 is fully specified at 5V and ±15V supplies and from –40°C to 125°C. The device is available in space saving 16-lead MSOP and 4mm × 4mm DFN14 packages.ApplicationsHigh Side or Low Side Current SensingBidirectional Wide Common Mode Range Current SensingHigh Voltage to Low Voltage Level TranslationIndustrial Data-Acquisition Front-EndsReplacement for Isolation CircuitsDifferential to Single-Ended Conversion |
| Linear | 36 | Active | |

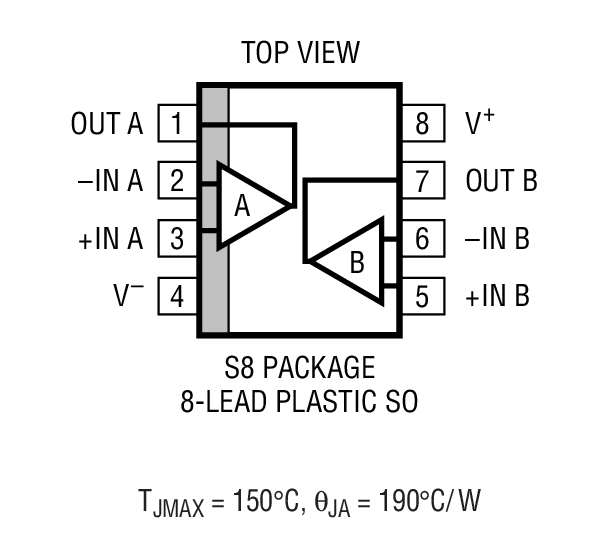

LT2078Micropower, Dual and Quad, Single Supply, Precision Op Amps | Amplifiers | 5 | Active | The LT2078 is a micropower dual op amp in 8-pin small outline, standard surface mount package, and LT2079 is a micropower quad op amp offered in the standard 14-pin surface mount package. Both devices are optimized for single supply operation at 5V. ±15V specifications are also provided.Micropower performance of competing devices is achieved at the expense of seriously degrading precision, noise, speed and output drive specifications. The design effort of the LT2078/LT2079 was concentrated on reducing supply current without sacrificing other parameters. The offset voltage achieved is the lowest on any dual or quad nonchopper stabilized op amp––micropower or otherwise. Offset current, voltage and current noise, slew rate and gain bandwidth product are all two to ten times better than on previous micropower op amps.Both the LT2078/LT2079 can be operated from a single supply (as low as one lithium cell or two NiCd batteries). The input range goes below ground. The all NPN output stage swings to within a few millivolts of ground while sinking current––no power consuming pull-down resistors are needed. For applications requiring DIP packages refer to the LT1078/LT1079.ApplicationsBattery or Solar-Powered SystemsPortable InstrumentationRemote Sensor AmplifierSatellite CircuitryMicropower Sample-and-HoldThermocouple AmplifierMicropower Filters |
LT2079Micropower, Dual and Quad, Single Supply, Precision Op Amps | Instrumentation, Op Amps, Buffer Amps | 4 | Active | The LT2078 is a micropower dual op amp in 8-pin small outline, standard surface mount package, and LT2079 is a micropower quad op amp offered in the standard 14-pin surface mount package. Both devices are optimized for single supply operation at 5V. ±15V specifications are also provided.Micropower performance of competing devices is achieved at the expense of seriously degrading precision, noise, speed and output drive specifications. The design effort of the LT2078/LT2079 was concentrated on reducing supply current without sacrificing other parameters. The offset voltage achieved is the lowest on any dual or quad nonchopper stabilized op amp––micropower or otherwise. Offset current, voltage and current noise, slew rate and gain bandwidth product are all two to ten times better than on previous micropower op amps.Both the LT2078/LT2079 can be operated from a single supply (as low as one lithium cell or two NiCd batteries). The input range goes below ground. The all NPN output stage swings to within a few millivolts of ground while sinking current––no power consuming pull-down resistors are needed. For applications requiring DIP packages refer to the LT1078/LT1079.ApplicationsBattery or Solar-Powered SystemsPortable InstrumentationRemote Sensor AmplifierSatellite CircuitryMicropower Sample-and-HoldThermocouple AmplifierMicropower Filters |
| Instrumentation, Op Amps, Buffer Amps | 4 | Active | |
