| Integrated Circuits (ICs) | 4 | Active | |
| Analog to Digital Converters (ADC) | 3 | Active | |
| Evaluation and Demonstration Boards and Kits | 4 | Active | |
| Evaluation and Demonstration Boards and Kits | 3 | Active | |
AD745Ultralow Noise, High Speed, BiFET Op Amp | Instrumentation, Op Amps, Buffer Amps | 7 | Active | The AD745 is an ultralow noise, high speed, FET input operational amplifier. It offers both the ultralow voltage noise and high speed generally associated with bipolar input op amps and the very low input currents of FET input devices. Its 20 MHz bandwidth and 12.5 V/µs slew rate makes the AD745 an ideal amplifier for high speed applications demanding low noise and high dc precision. Furthermore, the AD745 does not exhibit an output phase reversal. The AD745's guaranteed, tested maximum input voltage noise of 4 nV/(root)Hz at 10 kHz is unsurpassed for a FET-input monolithic op amp, as is its maximum 1.0 µV p-p noise in a 0.1 Hz to 10 Hz bandwidth. The AD745 also has excellent dc performance with 250 pA maximum input bias current and 0.5 mV maximum offset voltage.The internal compensation of the AD745 is optimized for higher gains, providing a much higher bandwidth and a faster slew rate. This makes the AD745 especially useful as a preamplifier where low level signals require an amplifier that provides both high amplification and wide bandwidth at these higher gains. The AD745 is available in five performance grades. The AD745J and AD745K are rated over the commercial temperature range of 0°C to +70°C. The AD745A and AD745B are rated over the industrial temperature range of -40°C to +85°C. The AD745S is rated over the military temperature range of -55°C to +125°C and is available processed to MIL-STD-883B, Rev. C.The AD745 is available in 8-pin plastic mini-DIP, 8-pin cerdip, 16-pin SOIC, or in chip form. |

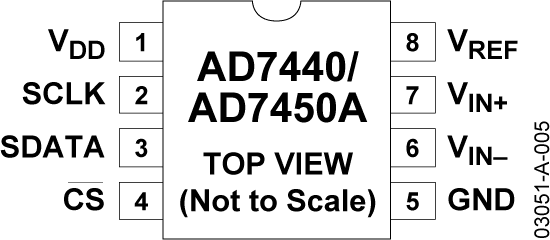

AD7450Differential Input, 1 MSPS, 12- (AD7450A) & 10-Bit (AD7440) ADCs | Development Boards, Kits, Programmers | 16 | Active | TheAD7440/ AD7450A are 10-bit and 12-bit high speed, low power, successive approximation (SAR) analog-to-digital converters with a fully differential analog input. These parts operate from a single 3 V or 5 V power supply and use advanced design techniques to achieve very low power dissipation at throughput rates up to 1 MSPS. The SAR architecture of these parts ensures that there are no pipeline delays.The parts contain a low noise, wide bandwidth, differential track-and-hold amplifier (T/H) that can handle input frequencies up to 3.5 MHz. The reference voltage is applied externally to the VREF pin and can be varied from 100 mV to 3.5 V depending on the power supply and what suits the application. The value of the reference voltage determines the common-mode voltage range of the part. With this truly differential input structure and variable reference input, the user can select a variety of input ranges and bias points.The conversion process and data acquisition are controlled usingCSand the serial clock, allowing the device to interface with microprocessors or DSPs. The input signals are sampled on the falling edge ofCS; the conversion is also initiated at this point. The SAR architecture of these parts ensures that there are no pipeline delays. The AD7440 and the AD7450A use advanced design techniques to achieve very low power dissipation at high throughput rates.PRODUCT HIGHLIGHTSOperation with either 3 V or 5 V power supplies.High throughput with low power consumption.With a 3 V supply, the AD7440 / AD7450A offer 4 mW max power consumption for 1 MSPS throughput.Fully differential analog input.Flexible power/serial clock speed management.The conversion rate is determined by the serial clock, allowing the power to be reduced as the conversion time is reduced through the serial clock speed increase. These parts also feature a shutdown mode to maximize power efficiency at lower throughput rates.Variable voltage reference input.No pipeline delay.Accurate control of the sampling instant via aCSinput and once-off conversion control.ENOB > eight bits typically with 100 mV reference.APPLICATIONSTransducer interfaceBattery-powered systemsData acquisition systemsPortable instrumentationMotor controlMICROWIRE is a trademark of National Semiconductor Corporation. SPI and QSPI are trademarks of Motorola, Inc. |
AD7450ADifferential Input, 1 MSPS, 12- (AD7450A) & 10-Bit (AD7440) ADCs | Analog to Digital Converters (ADC) | 1 | Active | TheAD7440/ AD7450A are 10-bit and 12-bit high speed, low power, successive approximation (SAR) analog-to-digital converters with a fully differential analog input. These parts operate from a single 3 V or 5 V power supply and use advanced design techniques to achieve very low power dissipation at throughput rates up to 1 MSPS. The SAR architecture of these parts ensures that there are no pipeline delays.The parts contain a low noise, wide bandwidth, differential track-and-hold amplifier (T/H) that can handle input frequencies up to 3.5 MHz. The reference voltage is applied externally to the VREF pin and can be varied from 100 mV to 3.5 V depending on the power supply and what suits the application. The value of the reference voltage determines the common-mode voltage range of the part. With this truly differential input structure and variable reference input, the user can select a variety of input ranges and bias points.The conversion process and data acquisition are controlled usingCSand the serial clock, allowing the device to interface with microprocessors or DSPs. The input signals are sampled on the falling edge ofCS; the conversion is also initiated at this point. The SAR architecture of these parts ensures that there are no pipeline delays. The AD7440 and the AD7450A use advanced design techniques to achieve very low power dissipation at high throughput rates.PRODUCT HIGHLIGHTSOperation with either 3 V or 5 V power supplies.High throughput with low power consumption.With a 3 V supply, the AD7440 / AD7450A offer 4 mW max power consumption for 1 MSPS throughput.Fully differential analog input.Flexible power/serial clock speed management.The conversion rate is determined by the serial clock, allowing the power to be reduced as the conversion time is reduced through the serial clock speed increase. These parts also feature a shutdown mode to maximize power efficiency at lower throughput rates.Variable voltage reference input.No pipeline delay.Accurate control of the sampling instant via aCSinput and once-off conversion control.ENOB > eight bits typically with 100 mV reference.APPLICATIONSTransducer interfaceBattery-powered systemsData acquisition systemsPortable instrumentationMotor controlMICROWIRE is a trademark of National Semiconductor Corporation. SPI and QSPI are trademarks of Motorola, Inc. |
| Data Acquisition | 4 | Active | |
| Data Acquisition | 3 | Active | |
AD7453Pseudo Differential, 555 kSPS, 12-Bit A/D Converter in 8-Lead SOT-23 | Data Acquisition | 1 | Active | The AD7453 is a 12-bit, low-power, successive-approximation (SAR) analog-to-digital converters that features a pseudo differential analog input. This part operates from a single 2.7 V to 5.25 V power supply and features throughput rates up to 555 kSPS.The part contains a low-noise, wide bandwidth, differential track and hold amplifier (T/H) which can handle input frequencies in excess of 1 MHz with the -3 dB point being 20 MHz typically. The reference voltage is applied externally to the VREFpin and can be varied from 100 mV to 3.5 V depending on the power supply and what suits the application.The conversion process and data acquisition are controlled usingCSand the serial clock allowing the device to interface with Microprocessors or DSPs. The input signals are sampled on the falling edge ofCSand the conversion is also initiated at this point.The SAR architecture of this part ensures that there are no pipeline delays.The AD7453 uses advanced design techniques to achieve very low power dissipation at high throughput rates. |
