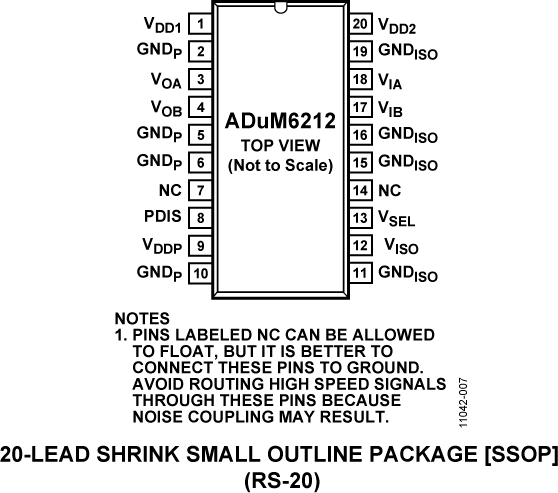

ADUM6212Dual-Channel Isolators with Integrated DC-to-DC Converter (0/2 Channel Directionality) | Digital Isolators | 6 | Active | TheADuM6210/ADuM6211/ ADuM6212 are dual-channel digital isolators withisoPower®, an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc.,iCoupler®technology, the dc-to-dc converter provides regulated, isolated power that is adjustable between 3.135 V and 5.25 V. Input supply voltages can range from slightly below the required output to significantly higher. Popular voltage combinations and their associated power levels are shown in Table 2.The ADuM6210 / ADuM6211 / ADuM6212 eliminate the need for a separate, isolated dc-to-dc converter in low power, isolated designs. TheiCoupler chip-scale transformer technology is used for isolated logic signals and for the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.isoPower uses high frequency switching elements to transfer power through its transformer. Take special care during printed circuit board (PCB) layout to meet emissions standards. See theAN-0971 Application Notefor board layout recommendations.APPLICATIONSRS-232 transceiversPower supply start-up bias and gate drivesIsolated sensor interfacesIndustrial PLCs |
| Digital Isolators | 7 | Active | |
| Isolators | 8 | Active | |
ADUM6402Quad-Channel Isolators with Integrated DC/DC Converter (2/2 channel directionality) | Digital Isolators | 8 | Active | The ADuM640x devices are quad-channel digital isolators withisoPower®, an integrated, isolated DC/DC converter. Based on the Analog Devices, Inc.,iCoupler®technology, the DC/DC converter provides up to 500 mW of regulated, isolated power at either 5.0 V or 3.3 V from a 5.0 V input supply, or 3.3 V from a 3.3 V supply at the power levels shown in Table 1. This eliminates the need for a separate, isolated DC/DC converter in low power, isolated designs. TheiCoupler chip scale transformer technology is used to isolate the logic signals and for the magnetic components of the DC/DC converter. The result is a small form factor, total isolation solution.The ADuM640x isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide for more information).isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to the AN-0971 application note for board layout recommendations. |
ADUM6403Quad-Channel Isolators with Integrated DC/DC Converter (1/3 channel directionality) | Isolators | 7 | Active | The ADuM640x devices are quad-channel digital isolators withisoPower®, an integrated, isolated DC/DC converter. Based on the Analog Devices, Inc.,iCoupler®technology, the DC/DC converter provides up to 500 mW of regulated, isolated power at either 5.0 V or 3.3 V from a 5.0 V input supply, or 3.3 V from a 3.3 V supply at the power levels shown in Table 1. This eliminates the need for a separate, isolated DC/DC converter in low power, isolated designs. TheiCoupler chip scale transformer technology is used to isolate the logic signals and for the magnetic components of the DC/DC converter. The result is a small form factor, total isolation solution.The ADuM640x isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide for more information).isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to the AN-0971 application note for board layout recommendations at www.analog.com. |
| Isolators | 2 | Active | |
| Isolators | 6 | Active | |

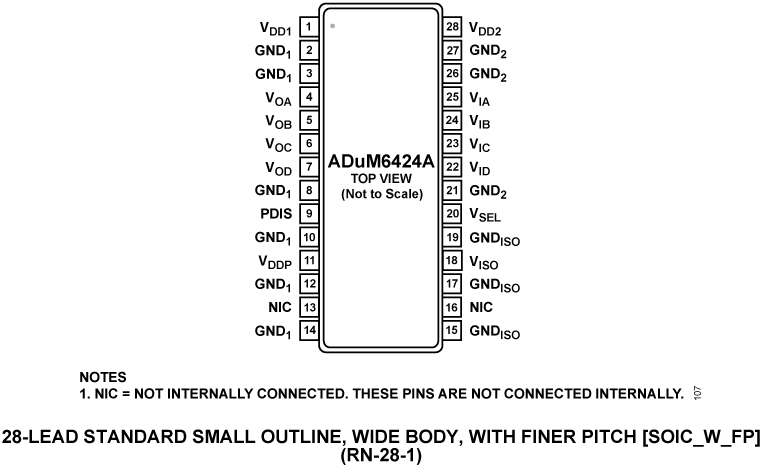

ADUM6424AQuad-Channel Isolators with Integrated DC-to-DC Converter (0:4 directionality) | Isolators | 4 | Active | TheADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A1are quad-channel digital isolators with anisoPower®, integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc.,iCoupler®technology, the dc-to-dc converter provides regulated, isolated power that meets CISPR 32/EN 55032 Class B limits at a full load on a 2-layer printed circuit board (PCB) with ferrites. Popular voltage combinations and the associated output current levels are listed in Table 1 in the data sheet.The ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A eliminate the need for a separate, isolated dc-to-dc converter in 500 mW, isolated designs. TheiCoupler chip scale transformer technology is used for isolated logic signals and for the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.The ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A isolators provide four independent isolation channels. See the Pin Configurations and Function Descriptions in the data sheet for additional information.APPLICATIONSRS-232 transceiversPower supply start-up bias and gate drivesIsolated sensor interfacesAutomotive on-board charger (OBC) and dc to dcIndustrial programmable logic controllers (PLCs)1Protected by U.S. Patents 5,952,849; 6,873,065; 6,903,578; and 7,075,329. Other patents are pending. |
| Isolators | 6 | Active | |
ADUM7234Isolated Precision Half-Bridge Driver, 4 A Output | Isolators - Gate Drivers | 2 | Active | The ADuM7234 is an isolated, half-bridge gate driver that employs the Analog Devices, Inc.,iCoupler®technology to provide independent and isolated high-side and low-side outputs. Combining high speed CMOS and monolithic transformer technology, this isolation component provides outstanding performance characteristics superior to optocoupler-based solutions. By avoiding the use of LEDs and photodiodes, thisiCoupler gate drive device is able to provide precision timing characteristics not possible with optocouplers. Furthermore, the reliability and performance stability problems associated with optocoupler LEDs are avoided.In comparison to gate drivers employing high voltage level translation methodologies, the ADuM7234 offers the benefit of true, galvanic isolation between the input and each output. Each output may be operated up to ±350 V peak relative to the input, thereby supporting low-side switching to negative voltages. The differential voltage between the high side and low side may be as high as 350 V peak.As a result, the ADuM7234 provides reliable control over the switching characteristics of IGBT/MOSFET configurations over a wide range of positive or negative switching voltages.ApplicationsIsolated IGBT/MOSFET gate drivesPlasma displaysIndustrial invertersSwitching power supplies |
