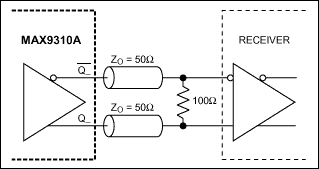

The MAX9310A is a fast, low-skew 1:5 differential driver with selectable LVPECL inputs and LVDS outputs, designed for clock distribution applications. This device features an ultra-low propagation delay of 340ps with 48mA of supply current.The MAX9310A operates from a 3V to 3.6V power supply for use in 3.3V systems. A 2:1 input multiplexer is used to select one of two differential inputs. The input selection is controlled through the CLKSEL pin.This device features a synchronous enable function. The MAX9310A LVPECL inputs can be driven by either a differential or single-ended signal. A VBBreference voltage output is provided for use with single-ended inputs. The device can also accept differential HSTL signals.The MAX9310A is offered in a space-saving 20-pin TSSOP package and operates over the extended temperature range from -40°C to +85°C.ApplicationsAutomated Test Equipment (ATE)Central Office Backplane Clock DistributionData and Clock Driver and BufferDSLAMWireless Base Stations

The MAX9310A is a fast, low-skew 1:5 differential driver with selectable LVPECL inputs and LVDS outputs, designed for clock distribution applications. This device features an ultra-low propagation delay of 340ps with 48mA of supply current.The MAX9310A operates from a 3V to 3.6V power supply for use in 3.3V systems. A 2:1 input multiplexer is used to select one of two differential inputs. The input selection is controlled through the CLKSEL pin.This device features a synchronous enable function. The MAX9310A LVPECL inputs can be driven by either a differential or single-ended signal. A VBBreference voltage output is provided for use with single-ended inputs. The device can also accept differential HSTL signals.The MAX9310A is offered in a space-saving 20-pin TSSOP package and operates over the extended temperature range from -40°C to +85°C.ApplicationsAutomated Test Equipment (ATE)Central Office Backplane Clock DistributionData and Clock Driver and BufferDSLAMWireless Base Stations

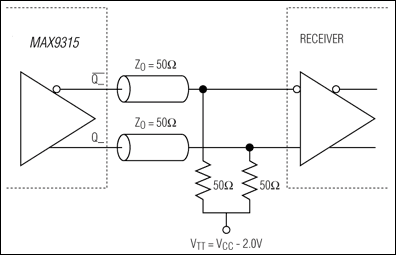

The MAX9315 low-skew, 1-to-5 differential driver is designed for clock and data distribution. This device allows selection between two inputs. The selected input is reproduced at five differential outputs. The differential inputs can be adapted to accept a single-ended input by connecting the on-chip VBBsupply to one input as a reference voltage.The MAX9315 features low output-to-output skew (20ps), making it ideal for clock and data distribution across a backplane or a board. For interfacing to differential HSTL and LVPECL signals, this device operates over a +2.375V to +3.8V supply range, allowing high-performance clock or data distribution in systems with a nominal +2.5V or +3.3V supply. For differential LVECL operation, this device operates with a -2.375V to -3.8V supply.The MAX9315 is offered in a space-saving 20-pin TSSOP package.ApplicationsAutomated Test Equipment (ATE)Central Office Backplane Clock DistributionData and Clock Driver and BufferDSLAM BackplaneLow-Jitter Data RepeaterPrecision Clock DistributionWireless Base Stations

The MAX931–MAX934 single, dual, and quad micropower, low-voltage comparators plus an on-board 2% accurate reference feature the lowest power consumption available. These comparators draw less than 4µA supply current over temperature (MAX931), and include an internal 1.182V ±2% voltage reference, programmable hysteresis, and TTL/CMOS outputs that sink and source current.Ideal for 3V or 5V single-supply applications, the MAX931–MAX934 operate from a single +2.5V to +11V supply (or a ±1.25V to ±5V dual supply), and each comparator's input voltage range extends from the negative supply rail to within 1.3V of the positive supply.The MAX931–MAX934's unique output stage continuously sources as much as 40mA. And by eliminating power-supply glitches that commonly occur when comparators change logic states, the MAX931–MAX934 minimize parasitic feedback, making them easier to use.The single MAX931 and dual MAX932/MAX933 provide a unique and simple method for adding hysteresis without feedback and complicated equations, using the HYST pin and two resistors.For applications that require increased precision with similar power requirements, see the MAX921–MAX924 data sheet. These devices include a 1% precision reference.ApplicationsAlarm CircuitsBattery-Powered ApplicationsOscillator CircuitsThreshold DetectorsWindow Comparators
