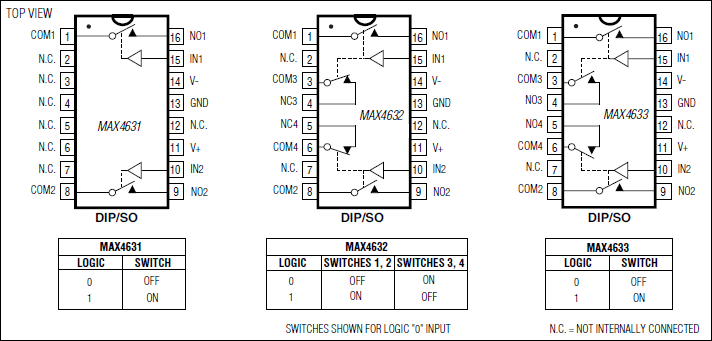

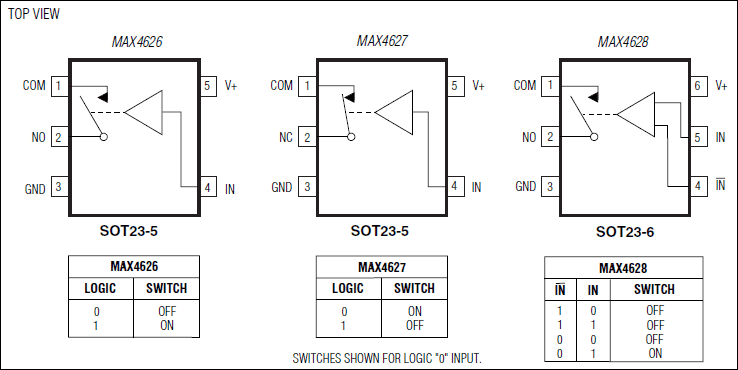

MAX46260.5Ω, Low-Voltage, Single-Supply SPST Analog Switches | Interface | 2 | Active | The MAX4626/MAX4627/MAX4628 are low-on-resistance, low-voltage, single-pole/single-throw (SPST) analog switches that operate from a +1.8V to +5.5V single supply. The MAX4626 is normally open (NO), and the MAX4627 is normally closed (NC). The MAX4628 is normally open (NO) and has two control inputs. These devices also have fast switching speeds (tON= 50ns max, tOFF= 30ns max).When powered from a +5V supply, the MAX4626/ MAX4627/MAX4628 offer 0.5Ω max on-resistance (RON) with 0.1Ω max RONflatness, and their digital logic inputs are TTL compatible. These switches also feature overcurrent protection to prevent device damage from short circuits and excessive loads.The MAX4626 is pin compatible with the MAX4514, and the MAX4627 is pin compatible with the MAX4515. The MAX4626/MAX4627 are available in SOT23-5 packages; the MAX4628 is available in a SOT23-6 package.ApplicationsAudio/Video Signal RoutingBattery-Powered ApplicationsCell PhonesCommunication SystemsHard DrivesLow-Voltage Data AcquisitionModemsPCMCIA CardsPower Routing |
| Integrated Circuits (ICs) | 2 | Active | |
MAX46280.5Ω, Low-Voltage, Single-Supply SPST Analog Switches | Interface | 1 | Obsolete | The MAX4626/MAX4627/MAX4628 are low-on-resistance, low-voltage, single-pole/single-throw (SPST) analog switches that operate from a +1.8V to +5.5V single supply. The MAX4626 is normally open (NO), and the MAX4627 is normally closed (NC). The MAX4628 is normally open (NO) and has two control inputs. These devices also have fast switching speeds (tON= 50ns max, tOFF= 30ns max).When powered from a +5V supply, the MAX4626/ MAX4627/MAX4628 offer 0.5Ω max on-resistance (RON) with 0.1Ω max RONflatness, and their digital logic inputs are TTL compatible. These switches also feature overcurrent protection to prevent device damage from short circuits and excessive loads.The MAX4626 is pin compatible with the MAX4514, and the MAX4627 is pin compatible with the MAX4515. The MAX4626/MAX4627 are available in SOT23-5 packages; the MAX4628 is available in a SOT23-6 package.ApplicationsAudio/Video Signal RoutingBattery-Powered ApplicationsCell PhonesCommunication SystemsHard DrivesLow-Voltage Data AcquisitionModemsPCMCIA CardsPower Routing |
| Amplifiers | 5 | Obsolete | |
MAX4630±15kV ESD-Protected, Low-Voltage, Quad, SPST, CMOS Analog Switches | Integrated Circuits (ICs) | 4 | Active | The MAX4620/MAX4630/MAX4640 low-voltage, high-ESD-protected, quad, single-pole/single-throw (SPST) analog switches are pin-compatible replacements for the industry-standard 74HC4066 analog switch. The normally open (NO) and normally closed (NC) pins are protected against ±15kV electrostatic discharge (ESD) without latchup or damage. Each switch can handle Rail-to-Rail analog signals. The off-leakage current is 0.5nA at +25°C. These analog switches are suitable for low-distortion audio applications and are the preferred solution over mechanical relays in automated test equipment or applications where current switching is required. They have low power requirements (0.5µW), require less board space, and are more reliable than mechanical relays. Each device is controlled by TTL/CMOS input voltage levels and is bilateral.These switches feature guaranteed operation from a +2V to +12V single supply, making them ideal for use in battery-powered applications. The on-resistance is 70Ω max, matched between switches to 0.5Ω (typ), and flat (2Ω typ) over the specified signal range.The MAX4620 has four NO switches, the MAX4630 has four NC switches, and the MAX4640 has two NO and two NC switches. These devices are available in 14-pin TSSOP, SO, and DIP packages.ApplicationsAudio/Video Signal RoutingBattery-Powered ApplicationsCommunication SystemsLow-Voltage Data AcquisitionRelay ReplacementSample-and-Hold Circuits |
| Interface | 3 | Obsolete | |
| Analog Switches, Multiplexers, Demultiplexers | 8 | Active | |
| Integrated Circuits (ICs) | 4 | Obsolete | |
| Logic | 5 | Active | |
MAX4635Fast, Low-Voltage, Dual 4Ω SPDT CMOS Analog Switches | Integrated Circuits (ICs) | 5 | Active | The MAX4635/MAX4636 are fast, dual 4Ω single-pole/double-throw (SPDT) analog switches that operate with supply voltages from +1.8V to +5.5V. High switching speeds, 1Ω on-resistance flatness, and low power consumption make these devices ideal for audio/video, communications, and battery-operated devices. Containing two independently controllable SPDT switches in 10-pin µMAX® and 10-pin 3mm x 3mm thin QFN packages, the MAX4635/MAX4636 use little board space, and have low power consumption ensuring minimal impact on your power budget. The analog signal range extends to the supply rails. The MAX4635 has inverted logic compared to the MAX4636.ApplicationsAudio/Video Signal RoutingBattery-Powered EquipmentCommunications CircuitsLow-Voltage Data-Acquisition SystemsRelay ReplacementSample-and-Hold Circuits |
