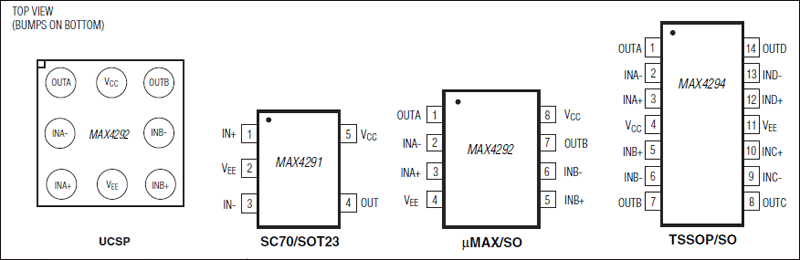

The MAX4291/MAX4292/MAX4294 family of micropower operational amplifiers operates from a 1.8V to 5.5V single supply or ±0.9V to ±2.75V dual supplies and has Rail-to-Rail input/output capabilities. These amplifiers provide a 500kHz gain-bandwidth product and 120dB open-loop voltage gain while using only 100µA of supply current per amplifier. The combination of low input offset voltage (±200µV) and high open-loop gain makes them ideal for low-power/low-voltage, high-precision portable applications.The MAX4291/MAX4292/MAX4294 have an input common-mode range that extends to each supply rail, and their outputs swing to within 46mV of the rails with a 2kΩ load. Although the minimum operating voltage is specified at 1.8V, these devices typically operate down to 1.5V. The combination of ultra-low-voltage operation, rail-to-rail inputs/output, and low-power consumption makes these devices ideal for any portable/two-cell battery-powered system.The single MAX4291 is offered in an ultra-small 5-pin SC70 package. The dual MAX4292 is offered in a space-saving 8-bump, 1.5mm x 1.5mm footprint, ultra chip-scale package (UCSP™).Applications2-Cell Battery-Operated SystemsAutomotive SensorsBase Station/Wireless InfrastructureBattery-Powered ApplicationsCell PhonesComputers: Desktops, Workstations, and ServersComputers: MotherboardsComputers: NotebookDigital Scales/Strain GaugesGPS SolutionsMP3 Docking Stations: Mid LevelPortable Electronic EquipmentProgrammable Logic Controllers (PLCs)Sensor AmplifiersSet-Top BoxesStrain Gauges

The MAX4291/MAX4292/MAX4294 family of micropower operational amplifiers operates from a 1.8V to 5.5V single supply or ±0.9V to ±2.75V dual supplies and has Rail-to-Rail input/output capabilities. These amplifiers provide a 500kHz gain-bandwidth product and 120dB open-loop voltage gain while using only 100µA of supply current per amplifier. The combination of low input offset voltage (±200µV) and high open-loop gain makes them ideal for low-power/low-voltage, high-precision portable applications.The MAX4291/MAX4292/MAX4294 have an input common-mode range that extends to each supply rail, and their outputs swing to within 46mV of the rails with a 2kΩ load. Although the minimum operating voltage is specified at 1.8V, these devices typically operate down to 1.5V. The combination of ultra-low-voltage operation, rail-to-rail inputs/output, and low-power consumption makes these devices ideal for any portable/two-cell battery-powered system.The single MAX4291 is offered in an ultra-small 5-pin SC70 package. The dual MAX4292 is offered in a space-saving 8-bump, 1.5mm x 1.5mm footprint, ultra chip-scale package (UCSP™).Applications2-Cell Battery-Operated SystemsAutomotive SensorsBase Station/Wireless InfrastructureBattery-Powered ApplicationsCell PhonesComputers: Desktops, Workstations, and ServersComputers: MotherboardsComputers: NotebookDigital Scales/Strain GaugesGPS SolutionsMP3 Docking Stations: Mid LevelPortable Electronic EquipmentProgrammable Logic Controllers (PLCs)Sensor AmplifiersSet-Top BoxesStrain Gauges

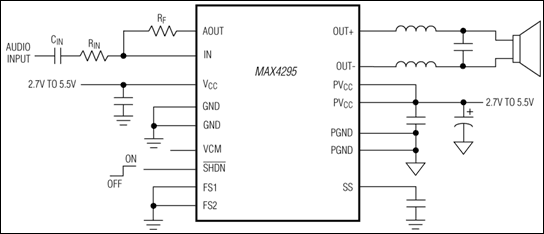

The MAX4295 mono, switch-mode (Class D) audio power amplifier operates from a single +2.7V to +5.5V supply. The MAX4295 has > 85% efficiency and is capable of delivering 2W continuous power to a 4Ω load, making it ideal for portable multimedia and general-purpose high-power audio applications.The MAX4295 features a total harmonic distortion plus noise (THD+N) of 0.4% (fOSC= 125kHz), low quiescent current of 2.8mA, high efficiency, and clickless power-up and shutdown. The active-low SHDN input disables the device and limits supply current to< 1.5µA.Other features include a 1A current limit, thermal protection, and undervoltage lockout.The MAX4295 reduces the number of required external components. Internal high-speed power-MOS transistors allow operation as a bridge-tied load (BTL) amplifier. The BTL configuration eliminates the need for isolation capacitors on the output. The frequency-selectable pulse-width modulator (PWM) allows the user to optimize the size and cost of the output filter.The MAX4295 is offered in a space-saving 16-pin QSOP or narrow SO package.ApplicationsAC AmplifiersBattery-Powered SpeakersBoom BoxesCordless PhonesGame CardsPalmtop/Notebook ComputersPDA AudioPortable EquipmentSound Cards

The MAX4104/MAX4105/MAX4304/MAX4305 op amps feature ultra-high speed, low noise, and low distortion in a SOT23 package. The unity-gain-stable MAX4104 requires only 20mA of supply current while delivering 625MHz bandwidth and 400V/µs slew rate. The MAX4304, compensated for gains of +2V/V or greater, delivers a 730MHz bandwidth and a 1000V/µs slew rate. The MAX4105 is compensated for a minimum gain of +5V/V and delivers a 410MHz bandwidth and a 1400V/µs slew rate. The MAX4305 has +10V/V minimum gain compensation and delivers a 340MHz bandwidth and a 1400V/µs slew rate.Low voltage noise density of 2.1nV/√Hz and -88dBc spurious-free dynamic range make these devices ideal for low-noise/low-distortion video and telecommunications applications. These op amps also feature a wide output voltage swing of ±3.7V and ±70mA output current- drive capability. For space-critical applications, they are available in a miniature 5-pin SOT23 package.ApplicationsActive FiltersADC Input BuffersPulse/RF Telecom ApplicationsUltrasoundVideo ADC PreampVideo Buffers and Cable Drivers
