The MAX4104/MAX4105/MAX4304/MAX4305 op amps feature ultra-high speed, low noise, and low distortion in a SOT23 package. The unity-gain-stable MAX4104 requires only 20mA of supply current while delivering 625MHz bandwidth and 400V/µs slew rate. The MAX4304, compensated for gains of +2V/V or greater, delivers a 730MHz bandwidth and a 1000V/µs slew rate. The MAX4105 is compensated for a minimum gain of +5V/V and delivers a 410MHz bandwidth and a 1400V/µs slew rate. The MAX4305 has +10V/V minimum gain compensation and delivers a 340MHz bandwidth and a 1400V/µs slew rate.Low voltage noise density of 2.1nV/√Hz and -88dBc spurious-free dynamic range make these devices ideal for low-noise/low-distortion video and telecommunications applications. These op amps also feature a wide output voltage swing of ±3.7V and ±70mA output current- drive capability. For space-critical applications, they are available in a miniature 5-pin SOT23 package.ApplicationsActive FiltersADC Input BuffersPulse/RF Telecom ApplicationsUltrasoundVideo ADC PreampVideo Buffers and Cable Drivers

The MAX410/MAX412/MAX414 single/dual/quad op amps set a new standard for noise performance in high-speed, low-voltage systems. Input voltage-noise density is guaranteed to be less than 2.4nV per root-Hz at 1kHz. A unique design not only combines low noise with ±5V operation, but also consumes 2.5mA supply current per amplifier. Low-voltage operation is guaranteed with an output voltage swing of 7.3VP-Pinto 2kΩ from ±5V supplies. The MAX410/MAX412/MAX414 also operate from supply voltages between ±2.4V and ±5V for greater supply flexibility.Unity-gain stability, 28MHz bandwidth, and 4.5V/µs slew rate ensure low-noise performance in a wide variety of wideband and measurement applications. The MAX410/MAX412/MAX414 are available in DIP and SO packages in the industry-standard single/dual/quad op amp pin configurations. The single comes in an ultra-small TDFN package (3mm x 3mm).ApplicationsAutomatic Test Equipment (ATE)Bridge Signal ConditioningDisplays: Industrial, Front Panel, and InstrumentationHigh-Quality Audio AmplifiersIndustrial: Process Measurement and ControlInfrared DetectorsLow-Noise Frequency SynthesizersPanel MetersPower MetersProgrammable Logic Controllers (PLCs)Ultra Low-Noise Instrumentation Amplifiers

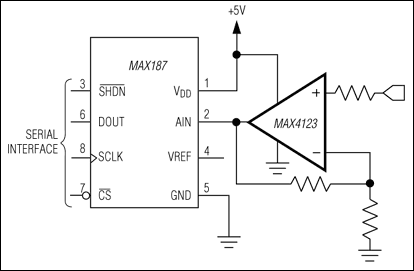

The MAX4122–MAX4129 family of operational amplifiers combines wide bandwidth and excellent DC accuracy with rail-to-rail operation at the inputs and outputs. These devices require only 650µA per amplifier, and operate from either a single supply (+2.7V to +6.5V) or dual supplies (±1.35V to ±3.25V) with a common-mode voltage range that extends 250mV beyond VEEand VCC. They are capable of driving 250Ω loads. The MAX4122/MAX4123/MAX4126/MAX4127/MAX4129 have a 5MHz gain bandwidth product, while the decompensated MAX4124/MAX4125/MAX4128 (stable at closed-looped gains of 10 or greater) have a 25MHz gain bandwidth product. In addition, the MAX4123/MAX4125/MAX4127 feature a shutdown mode in which the outputs are placed in a high-impedance state and the supply current is reduced to only 25µA per amplifier.With their rail-to-rail input common-mode range and output swing, these amplifiers are ideal for low-voltage single-supply operation. Although the minimum operating voltage is specified at 2.7V, the devices typically operate down to 1.8V. In addition, low offset voltage and high speed make them the ideal signal-conditioning stages for precision, low-voltage, data-acquisition systems.The MAX4122 and MAX4124 come in the space-saving 5-pin SOT23-5 package.ApplicationsAutomotive SensorsBase Station/Wireless InfrastructureBattery-Powered ApplicationsComputers: Desktops, Workstations, and ServersComputers: MotherboardsComputers: NotebookData AcquisitionIndustrial: Process Measurement and ControlLow-Power, Low-Voltage ApplicationsPanel MetersPortable EquipmentProgrammable Logic Controllers (PLCs)Signal Conditioning

The MAX4122–MAX4129 family of operational amplifiers combines wide bandwidth and excellent DC accuracy with rail-to-rail operation at the inputs and outputs. These devices require only 650µA per amplifier, and operate from either a single supply (+2.7V to +6.5V) or dual supplies (±1.35V to ±3.25V) with a common-mode voltage range that extends 250mV beyond VEEand VCC. They are capable of driving 250Ω loads. The MAX4122/MAX4123/MAX4126/MAX4127/MAX4129 have a 5MHz gain bandwidth product, while the decompensated MAX4124/MAX4125/MAX4128 (stable at closed-looped gains of 10 or greater) have a 25MHz gain bandwidth product. In addition, the MAX4123/MAX4125/MAX4127 feature a shutdown mode in which the outputs are placed in a high-impedance state and the supply current is reduced to only 25µA per amplifier.With their rail-to-rail input common-mode range and output swing, these amplifiers are ideal for low-voltage single-supply operation. Although the minimum operating voltage is specified at 2.7V, the devices typically operate down to 1.8V. In addition, low offset voltage and high speed make them the ideal signal-conditioning stages for precision, low-voltage, data-acquisition systems.The MAX4122 and MAX4124 come in the space-saving 5-pin SOT23-5 package.ApplicationsAutomotive SensorsBase Station/Wireless InfrastructureBattery-Powered ApplicationsComputers: Desktops, Workstations, and ServersComputers: MotherboardsComputers: NotebookData AcquisitionIndustrial: Process Measurement and ControlLow-Power, Low-Voltage ApplicationsPanel MetersPortable EquipmentProgrammable Logic Controllers (PLCs)Signal Conditioning

The MAX4122–MAX4129 family of operational amplifiers combines wide bandwidth and excellent DC accuracy with rail-to-rail operation at the inputs and outputs. These devices require only 650µA per amplifier, and operate from either a single supply (+2.7V to +6.5V) or dual supplies (±1.35V to ±3.25V) with a common-mode voltage range that extends 250mV beyond VEEand VCC. They are capable of driving 250Ω loads. The MAX4122/MAX4123/MAX4126/MAX4127/MAX4129 have a 5MHz gain bandwidth product, while the decompensated MAX4124/MAX4125/MAX4128 (stable at closed-looped gains of 10 or greater) have a 25MHz gain bandwidth product. In addition, the MAX4123/MAX4125/MAX4127 feature a shutdown mode in which the outputs are placed in a high-impedance state and the supply current is reduced to only 25µA per amplifier.With their rail-to-rail input common-mode range and output swing, these amplifiers are ideal for low-voltage single-supply operation. Although the minimum operating voltage is specified at 2.7V, the devices typically operate down to 1.8V. In addition, low offset voltage and high speed make them the ideal signal-conditioning stages for precision, low-voltage, data-acquisition systems.The MAX4122 and MAX4124 come in the space-saving 5-pin SOT23-5 package.ApplicationsAutomotive SensorsBase Station/Wireless InfrastructureBattery-Powered ApplicationsComputers: Desktops, Workstations, and ServersComputers: MotherboardsComputers: NotebookData AcquisitionIndustrial: Process Measurement and ControlLow-Power, Low-Voltage ApplicationsPanel MetersPortable EquipmentProgrammable Logic Controllers (PLCs)Signal Conditioning
