DeepCover®embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.The MAX32558 is based on an Arm®Cortex®-M3 processor with 512KB of embedded flash, 96KB of system RAM, 1KB of battery-backed AES self-encrypted NVSRAM. It includes a cryptographic engine, a true random number generator, battery-backed RTC, environmental and tamper detection circuitry, a magnetic stripe reader, a smart card controller with embedded transceiver to directly support 1.8V, 3.3V, and 5V cards, and an integrated secure keypad controller. It also includes a vast array of peripherals, USB SPIs, UARTs, DMA, and ADC that add flexibility to control and differentiate the system design.ApplicationsATM KeyboardsEMV Card ReadersHSMsIndustrial ModulesPCI Mobile Payment Terminals (mPOS)Standalone Smartcard Readers

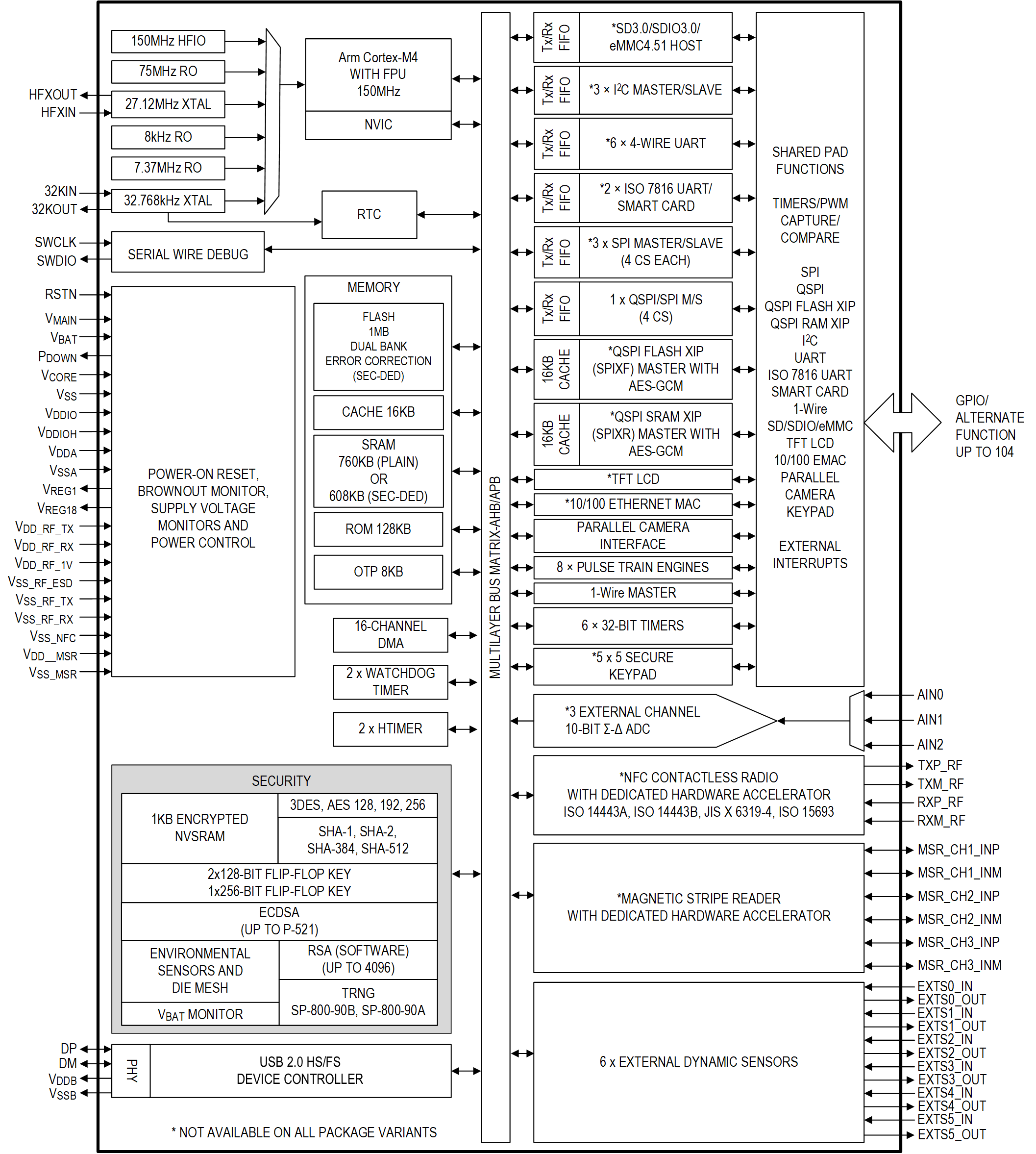

The MAX32570 DeepCover®secure microcontroller provides an interoperable, secure, and cost-effective solution to build new generations of trusted devices. It can be used in single-chip applications such as PIN pads, mobile POS (MPOS), and secure card reader for PIN (SCRP), but also in dual-chip applications such as countertop and tablet POS. It includes all the essential functions to address those applications including a multi-protocol RF contactless controller and radio front-end, a dual smart card controller, a parallel camera interface, a magnetic stripe reader, a TFT controller and a secure keypad controller.The MAX32570 operates at 150MHz and is based on an Arm®Cortex®-M4 processor with FPU with 1MB flash, 760KB SRAM, 8KB OTP, 1KB of battery-backed AES self-encrypted nonvolatile SRAM (NVSRAM) and a 256-bit flip-flop based battery-backed key storage. The flash memory is split into 2 banks of 512KB to provide flexibility when programming over-the-air. Error correction coding (ECC) (single error correction double error detection) for flash, and SRAM provides extremely reliable code execution. The device embeds both secure public and private key cryptographic algorithms and a true random number generator (TRNG) compliant with SP-800-90A and SP-800-90B standards. It also features a number of security protections and detectors to enforce system integrity including a dynamic sensor controller, environmental sensors, and fault detectors.The device features five flexible power modes. Multiple SPI, UART, and I2C serial interfaces, as well as a QSPI, 1-Wire®master, a USB 2.0 High-Speed device and an optional 10/100 Ethernet MAC, allow for greater connectivity. Some device package variants offer flexible off-chip memory expansion that supports SD/SDHC, SDIO/eMMC cards, QSPI flash, and SRAM memories with eXecute In Place (XIP), encryption, and authentication. The device is available in a number of package variants, ranging from 121-pin BGA to 169-pin BGA, 0.65mm pitch packages.ApplicationsATM KeyboardsContact/Contactless PinpadsCountertop and Tablet POSPCI Mobile Payment Terminals (mPOS)Secure Card Reader for PIN (SCRP)

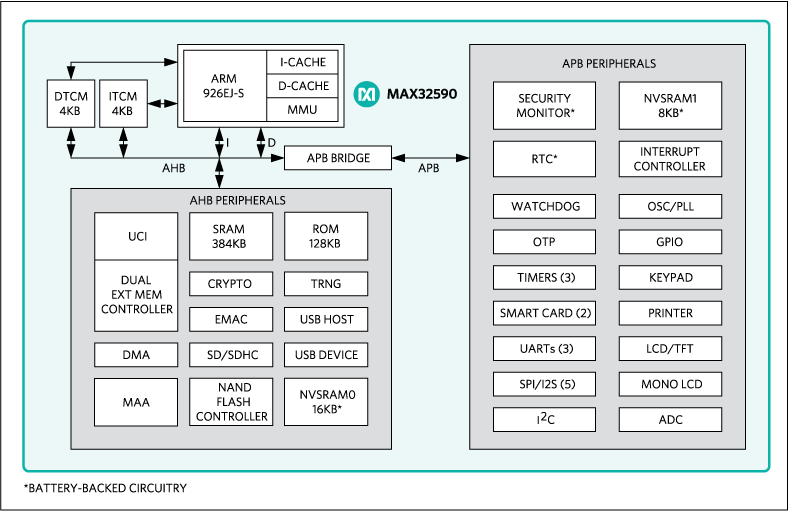

DeepCover®embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.The DeepCover Secure Microcontroller (MAX32590) provides an interoperable, secure, and cost-effective solution to build new generations of trusted devices such as multimedia-enabled portable EFT-POS terminals. The MAX32590 integrates a Memory Management Unit (MMU), 32KB of instruction cache, 16KB of data cache, 4KB instruction TCM, 4KB data TCM, 384KB of system SRAM, 2KB of One-Time-Programmable (OTP) memory, 128KB of Boot ROM, 24KB of battery-backed SRAM. The MAX32590 maximizes on-chip bandwidth when dealing with high-speed communication such as 100Mbps Ethernet, large color LCD displays, and gigabit-sized mass storage devices.In addition to hardware crypto functions, the MAX32590 provides a true random number generator, battery-backed RTC, nonvolatile SRAM and real-time environmental and tamper detection circuitry to facilitate system-level security for the application.The secure microcontroller includes multiple communication interfaces. One USB host controller and one USB device controller with their respective USB transceiver, two Smart Card controllers, five SPI ports, three UARTs, an SD/SDHC/SDIO controller, an Ethernet 10/100 MAC with FIFO and an I²C bus are also provided. The three on-chip timers also support PWM output generation for direct control of external devices. An integrated Secure Keypad and Thermal Printer interface provide an integrated solution for mobile POS terminals. Additionally, a 3-channel 10-bit ADC is provided for printer support and general use.ApplicationsATM KeyboardsCertificate AuthenticationElectronic CommerceEMV Card ReadersPay-per-PlayPCI TerminalsPIN PadsSecure Access ControlSecure Data Storage电子游戏

DeepCover®embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.The DeepCover Secure Microcontroller (MAX32591) provides an interoperable, secure, and cost-effective solution to build new generations of trusted devices such as multimedia-enabled portable EFT-POS terminals. The MAX32591 integrates a memory management unit (MMU), 32KB of instruction cache, 16KB of data cache, 4KB instruction TCM, 4KB data TCM, 384KB of system RAM, 2KB of one-time-programmable (OTP) memory, 128KB of boot ROM, and 24KB of battery-backed SRAM. The MAX32591 maximizes on-chip bandwidth when dealing with high-speed communication such as 100Mbps Ethernet, large color LCD displays, and gigabit-sized mass storage devices.In addition to hardware crypto functions, the MAX32591 provides a true random number generator, battery-backed RTC, nonvolatile SRAM and real-time environmental and tamper detection circuitry to facilitate system-level security for the application.The secure microcontroller includes multiple communication interfaces. One USB host controller and one USB device controller with their respective USB transceiver, two smart card controllers, five SPI ports, three UARTs, an Ethernet 10/100 MAC with FIFO, and an I2C bus are also provided. The three on-chip timers also support PWM output generation for direct control of external devices. An integrated secure keypad provides an integrated solution for mobile POS terminals. Additionally, a 2-channel, 10-bit ADC is provided for printer support and general use.ApplicationsATM KeyboardsAuthenticationCertificateElectronic CommerceElectronic GamingEMV Card ReadersPay-per-PlayPCI TerminalsPIN PadsSecure Access ControlSecure Data Storage

DeepCover® embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.The DeepCover Secure Microcontroller (MAX32592) provides an interoperable, secure, and cost-effective solution to build new generations of trusted devices such as multimedia-enabled portable EFT-POS terminals. The MAX32592 integrates a memory management unit (MMU), 32KB of instruction cache, 16KB of data cache, 4KB instruction TCM, 4KB data TCM, 384KB of system RAM, 2KB of one-time-programmable (OTP) memory, 128KB of boot ROM, and 24KB of battery-backed SRAM. The MAX32592 maximizes on-chip bandwidth when dealing with high-speed communication such as 100Mbps Ethernet, large color LCD displays, and gigabit-sized mass storage devices.In addition to hardware crypto functions, the MAX32592 provides a true random number generator, battery-backed RTC, nonvolatile SRAM and real-time environmental and tamper detection circuitry to facilitate system-level security for the application.The secure microcontroller includes multiple communication interfaces. One USB host controller and one USB device controller with their respective USB transceiver, two smart card controllers, three SPI ports, three UARTs, an SD/SDHC/SDIO controller an Ethernet 10/100 MAC with FIFO, and an I²C bus are also provided. The three on-chip timers also support PWM output generation for direct control of external devices. An integrated secure keypad provides an integrated solution for mobile POS terminals. Additionally, a 2-channel, 10-bit ADC is provided for printer support and general use.ApplicationsATM KeyboardsAuthenticationCertificateElectronic CommerceElectronic GamingEMV Card ReadersPay-per-PlayPCI TerminalsPIN PadsSecure Access ControlSecure Data Storage
