Product families from Advanced Sensor Design
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
Parts that are not part of a series
© Zenode. All rights reserved.
No series available
This manufacturer doesn't have any product series listed yet. Check back later or contact us if you're looking for specific parts.
Parts from Advanced Sensor Design that are not part of a series
| Part Information | Pricing (lowest) | Port Diameter | Port Feature | Port Gender | Features | Accuracy | Pressure Type | Port Style | Operating Pressure (Min) | Operating Pressure (Max) | Termination Style | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Applications | Package / Case | Output Type | Operating Temperature (Max) | Operating Temperature (Min) | Maximum Pressure | Output Voltage (Min) | Output Voltage (Max) | Mounting Type | Output Bits | Package Name | Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

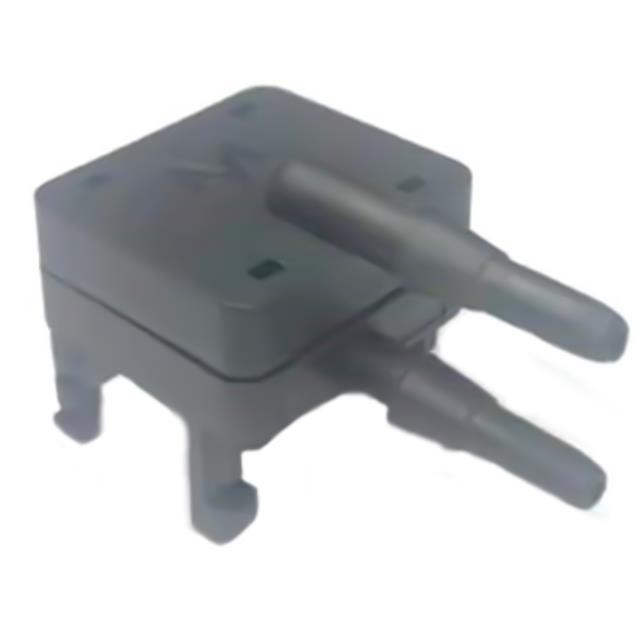

 Advanced Sensor Design SENSOR 0.018PSID 0.2" 4.5V | Sign in to see pricing | 0.2 " | Dual, Tube | Male | Amplified Output, Temperature Compensated | 1 % | Differential | Barbed | -0.018 PSI | 0.018 PSI | PC Pin | 5.25 V | 4.75 V | Board Mount | Module | Analog Voltage | 125 °C | -40 °C | 10 PSI | 0.5 V | 4.5 V | — | — | — | — |

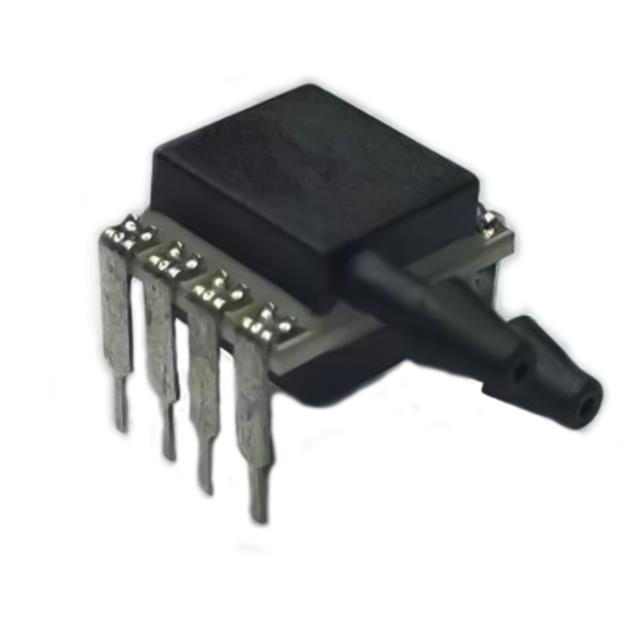

 Advanced Sensor Design SENSOR 0.072PSID 0.14" 3.0V | Sign in to see pricing | 0.14 in | Dual, Tube | Male | Amplified Output, Temperature Compensated | 3 % RH | Differential | Barbed | -0.072 PSI | 0.072 PSI | PC Pin | 3.465 V | 3.135 V | Board Mount | 8-DIP Module | Analog Voltage | 125 °C | -40 °C | 1 PSI | 0.3 V | 3 V | Through Hole | — | — | — |
Advanced Sensor Design SENSOR 0.144PSID 0.14" 3.0V | Sign in to see pricing | 0.14 in | Dual, Tube | Male | Amplified Output, Temperature Compensated | 2 % | Differential | Barbed | -0.144 PSI | 0.144 PSI | PC Pin | 3.465 V | 3.135 V | Board Mount | 8-DIP Module | Analog Voltage | 125 °C | -40 °C | 1 PSI | 0.3 V | 3 V | Through Hole | — | — | — |
Advanced Sensor Design SENSOR 0.018PSID 0.14" 14BIT | Sign in to see pricing | 0.14 in | Dual, Tube | Male | Digital Output, Temperature Compensated | 3 % RH | Differential | Barbed | -0.018 PSI | 0.018 PSI | PC Pin | 3.465 V | 3.135 V | Board Mount | 8-DIP Module | I2C | 85 °C | -20 °C | 1 PSI | — | — | Through Hole | 14 b | — | — |
Advanced Sensor Design SENSOR 0.036PSID 0.14" 14BIT | Sign in to see pricing | 0.14 in | Dual, Tube | Male | Digital Output, Temperature Compensated | 3 % RH | Differential | Barbed | -0.036 PSI | 0.036 PSI | PC Pin | 3.465 V | 3.135 V | Board Mount | 8-DIP Module | I2C | 85 °C | -20 °C | 1 PSI | — | — | Through Hole | 14 b | — | — |
Advanced Sensor Design SENSOR 0.072PSID 0.14" 14BIT | Sign in to see pricing | 0.14 in | Dual, Tube | Male | Digital Output, Temperature Compensated | 3 % RH | Differential | Barbed | -0.072 PSI | 0.072 PSI | PC Pin | 3.465 V | 3.135 V | Board Mount | 8-DIP Module | I2C | 85 °C | -20 °C | 1 PSI | — | — | Through Hole | 14 b | — | — |

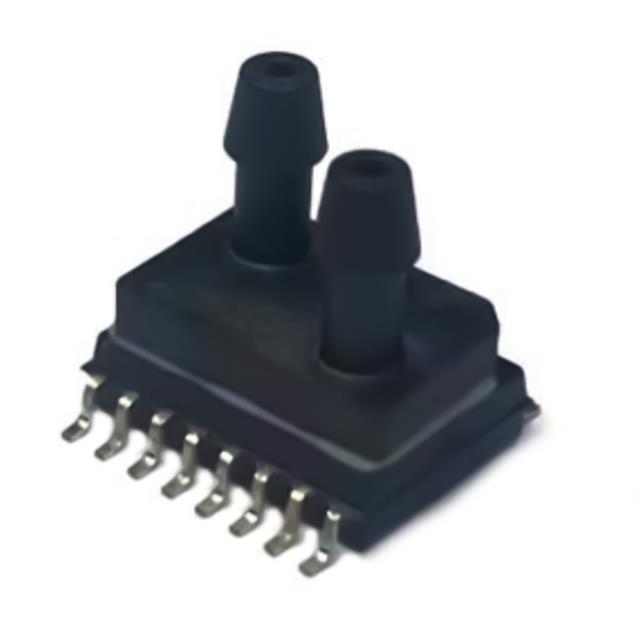

 Advanced Sensor Design SENSOR 1PSID 0.12" 14BIT 16SOIC | Sign in to see pricing | 0.12 in | Dual, Tube | Male | Digital Output, Temperature Compensated | 1 % | Differential | Barbed | — | — | Gull Wing | 3.465 V | 3.135 V | Board Mount | 16-SOIC Module, Dual Top Ports | I2C | 85 °C | -20 °C | 3 PSI | — | — | Surface Mount | 14 b | SOIC-16 | 1 PSI |
Advanced Sensor Design SENSOR 2PSID 0.12" 14BIT 16SOIC | Sign in to see pricing | 0.12 in | Dual, Tube | Male | Digital Output, Temperature Compensated | 1 % | Differential | Barbed | — | — | Gull Wing | 3.465 V | 3.135 V | Board Mount | 16-SOIC Module, Dual Top Ports | I2C | 85 °C | -20 °C | 15 PSI | — | — | Surface Mount | 14 b | SOIC-16 | 2 PSI |
Advanced Sensor Design SENSOR 5PSIG 0.12" 14BIT 16SOIC | Sign in to see pricing | 0.12 in | Dual, Tube | Male | Digital Output, Temperature Compensated | 1 % | Vented Gauge | Barbed | — | — | Gull Wing | 3.465 V | 3.135 V | Board Mount | 16-SOIC Module, Dual Top Ports | I2C | 85 °C | -20 °C | 15 PSI | — | — | Surface Mount | 14 b | SOIC-16 | 5 PSI |
