LHD-04 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 4POS 3.96MM

Part	Connector Type	Fastening Type	Number of Positions Loaded	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Material	Contact Type	Shrouding	Termination	Style	Number of Rows	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Shape	Number of Positions	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post
Adam Tech LHD-04-TRA	Header	Friction Lock	All	Right Angle Through Hole	3.96 mm	0.156 in	0.126 "	3.2 mm	7 A	Brass	Male Pin	Shrouded - 1 Wall	Solder	Board to Cable/Wire	1	Glass Filled Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	White	Square	4	UL94 V-2	7.62 mm	0.3 in	11.4 mm	0.449 in

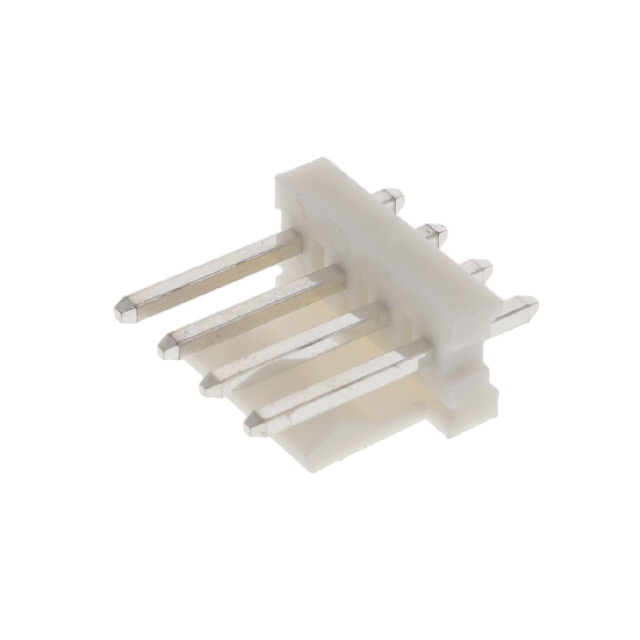

Adam Tech LHD-04-TS	Header	Friction Lock	All	Through Hole	3.96 mm	0.156 in			7 A	Brass	Male Pin	Shrouded - 1 Wall	Solder	Board to Cable/Wire	1	Nylon 6/6 Polyamide (PA66)	105 ░C	-40 C	White	Square	4	UL94 V-2			11.38 mm	0.448 in	18.16 mm	0.715 in	Tin	10.8 mm	0.425 in	0.142 in	3.6 mm
Adam Tech LHD-04-TRB	Header	Friction Lock	All	Right Angle Through Hole	3.96 mm	0.156 in	0.126 "	3.2 mm	7 A	Brass	Male Pin	Shrouded - 1 Wall	Solder	Board to Cable/Wire	1	Glass Filled Nylon 6/6 Polyamide (PA66)	85 °C	-40 C	White	Square	4	UL94 V-2	7.62 mm	0.3 in	11.4 mm	0.449 in			Tin
