NGCMB Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH LIMIT
| Part | Ingress Protection | Overtravel | Overtravel | Voltage Rating - DC | Switch Function | Actuator Type | Differential Travel | Differential Travel | Operating Position | Operating Position | Pretravel | Pretravel | Voltage Rating - AC | Termination Style | Electrical Life | Circuit | Current Rating (Amps) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Mechanical Life | Release Force | Operating Force | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||

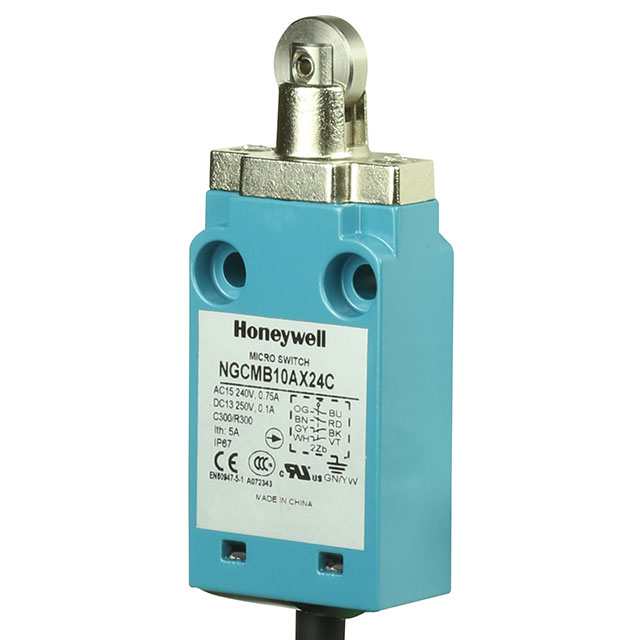

 Honeywell Sensing and Productivity Solutions | IP67 - Dust Tight Waterproof | 0.193 in | 4.9 mm | 250 V | Off-Mom On-Mom | Roller Plunger | 0.05 in | 1.3 mm | 0.083 in | 2.1 mm | 2.1 mm | 0.083 in | 250 V | Cable Leads | 500000 Cycles | 4PST-2NO/2NC | 100 mA 750 mA | Chassis Mount | -25 °C | 75 ░C | 5000000 Cycles | 224 gf | ||

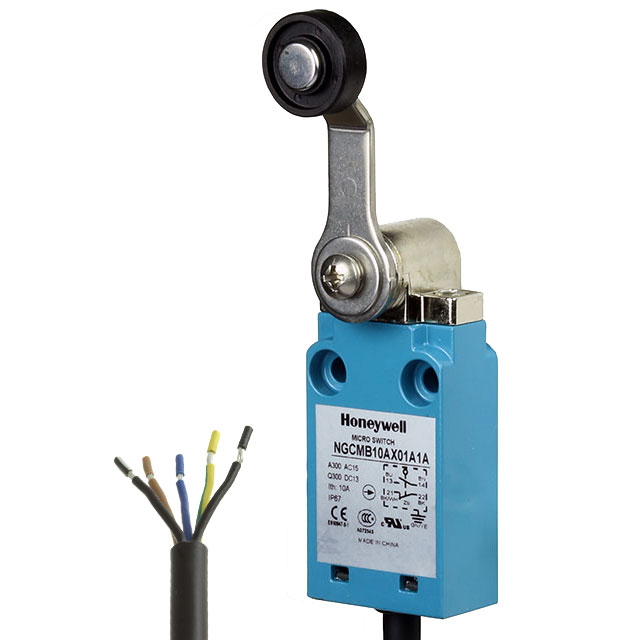

Honeywell Sensing and Productivity Solutions | IP67 - Dust Tight Waterproof | 65 ° | 125 VDC | Off-Mom On-Mom | Roller Side Rotary | 15 ° | 25 ° | 25 ° | 120 V | Connector | 500000 Cycles | DPST-NO/NC | 6 A 550 mA | Chassis Mount | -25 °C | 75 ░C | 5000000 Cycles | 2.534 gfm | 18 gfm | Stainless Steel Roller | ||||
 Honeywell Sensing and Productivity Solutions | IP67 - Dust Tight Waterproof | 65 ° | 125 VDC | Off-Mom On-Mom | Roller Side Rotary | 15 ° | 25 ° | 25 ° | 120 V | Cable Leads | 500000 Cycles | DPST-NO/NC | 6 A 550 mA | Chassis Mount | -25 °C | 75 ░C | 5000000 Cycles | 2.534 gfm | 18 gfm | Nylon Roller | ||||

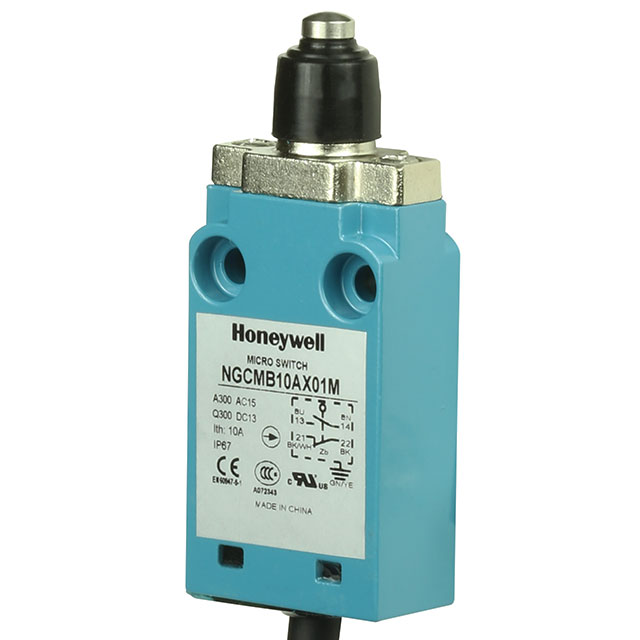

 Honeywell Sensing and Productivity Solutions | IP67 - Dust Tight Waterproof | 0.193 in | 4.9 mm | 125 VDC | Off-Mom On-Mom | Round (Pin Plunger) | 0.047 in | 1.2 mm | 0.083 in | 2.1 mm | 2.1 mm | 0.083 in | 120 V | Cable Leads | 500000 Cycles | DPST-NO/NC | 6 A 550 mA | Chassis Mount | -25 °C | 75 ░C | 5000000 Cycles | 306 gf | 1122 gf | Actuator Seal Boot |
 Honeywell Sensing and Productivity Solutions | IP67 - Dust Tight Waterproof | 0.193 in | 4.9 mm | 125 VDC | Off-Mom On-Mom | Cross Roller Plunger | 0.047 in | 1.2 mm | 0.083 in | 2.1 mm | 2.1 mm | 0.083 in | 120 V | Cable Leads | 500000 Cycles | DPST-NO/NC | 6 A 550 mA | Chassis Mount | -25 °C | 75 ░C | 5000000 Cycles | 306 gf | 1122 gf | |
 Honeywell Sensing and Productivity Solutions | IP67 - Dust Tight Waterproof | 0.193 in | 4.9 mm | 30 mV | Off-Mom On-Mom | Roller Plunger | 0.047 in | 1.2 mm | 0.083 in | 2.1 mm | 2.1 mm | 0.083 in | Cable Leads | 500000 Cycles | DPST-NO/NC | 10 mA | Chassis Mount | -25 °C | 75 ░C | 5000000 Cycles | 306 gf | 1122 gf | ||
Honeywell Sensing and Productivity Solutions | IP67 - Dust Tight Waterproof | 65 ° | 125 VDC | Off-Mom On-Mom | Side Rotary Adjustable Roller | 15 ° | 25 ° | 25 ° | 120 V | Cable Leads | 500000 Cycles | DPST-NO/NC | 6 A 550 mA | Chassis Mount | -25 °C | 75 ░C | 5000000 Cycles | 2.534 gfm | 18 gfm | Stainless Steel Roller | ||||
Honeywell Sensing and Productivity Solutions | IP67 - Dust Tight Waterproof | 65 ° | 125 VDC | Off-Mom On-Mom | Roller Side Rotary | 15 ° | 25 ° | 25 ° | 120 V | Cable Leads | 500000 Cycles | DPST-NO/NC | 6 A 550 mA | Chassis Mount | -25 °C | 75 ░C | 5000000 Cycles | 2.534 gfm | 18 gfm | Stainless Steel Roller | ||||

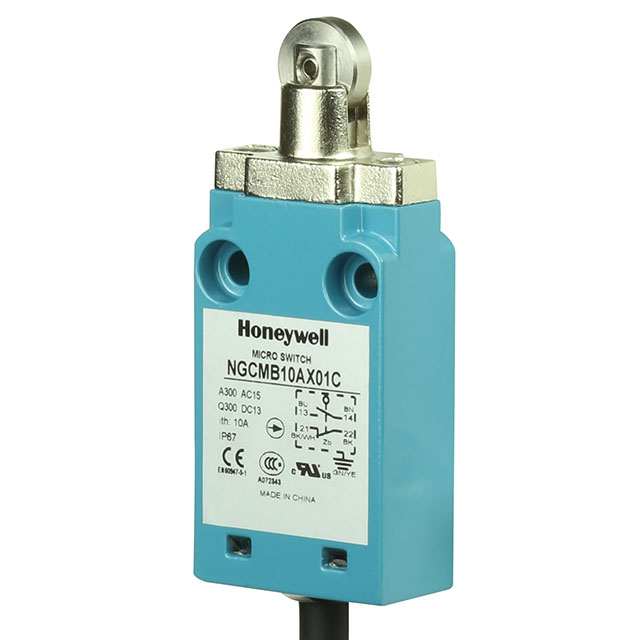

 Honeywell Sensing and Productivity Solutions | IP67 - Dust Tight Waterproof | 0.193 in | 4.9 mm | 125 VDC | Off-Mom On-Mom | Roller Plunger | 0.047 in | 1.2 mm | 0.083 in | 2.1 mm | 2.1 mm | 0.083 in | 120 V | Cable Leads | 500000 Cycles | DPST-NO/NC | 6 A 550 mA | Chassis Mount | -25 °C | 75 ░C | 5000000 Cycles | 306 gf | 1122 gf |
