A2E300 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

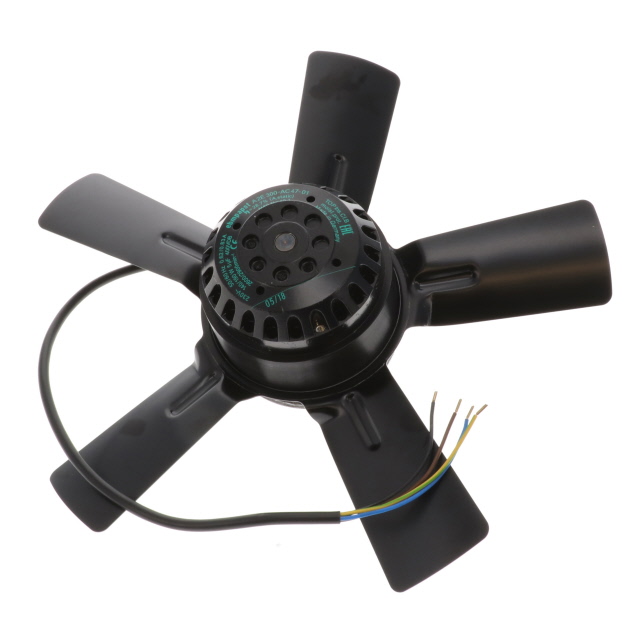

AC AXIAL FAN
| Part | Current Rating (Amps) [Min] | Current Rating (Amps) [Max] | Material - Blade | Power (Watts) | Air Flow | Air Flow | Width [x] | Noise | Voltage - Rated | Static Pressure | Static Pressure | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Bearing Type | Size / Dimension [diameter] | Size / Dimension | Termination | Ingress Protection | Approval Agency | Features | Fan Type | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 0.83 A | 0.88 A | Steel | 200 Watts | 40.24 m³/min | 1437.2 CFM | 99.5 mm | 75 dB(A) | 230 VAC | 0.602 in H2O | 150 Pa | 50 °C | -25 °C | -25 °C | 50 °C | Ball | 300 mm | Round | 4 Wire Leads | IP44 | CCC CE CSA EAC UL | Capacitor Thermal Overload Protector (TOP) | Tubeaxial | 2900 RPM |
