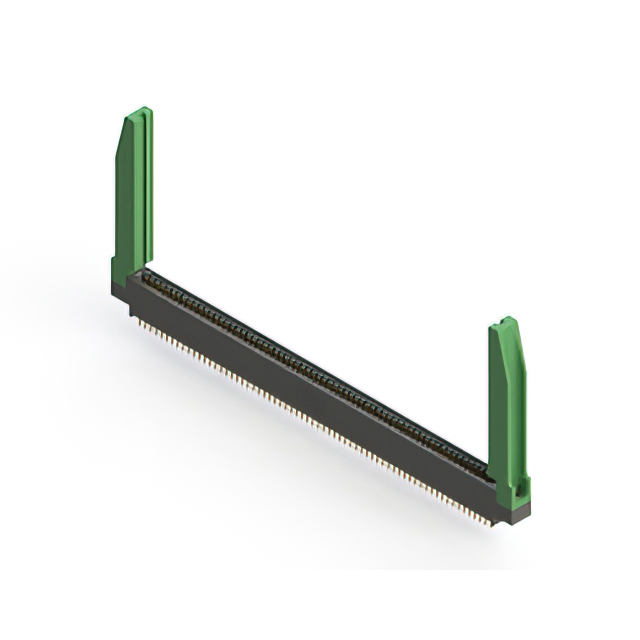

395-132 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 132POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions/Bay/Row | Number of Rows [custom] | Gender | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Number of Positions | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Termination | Color | Contact Type | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Features | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 66 | 2 | Female | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | -40 C | 105 ░C | Gold | 132 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Black | Cantilever | Non Specified - Dual Edge | 0.156 " | 3.96 mm | Dual | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 66 | 2 | Female | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | -40 C | 105 ░C | Gold | 132 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Black | Cantilever | Non Specified - Dual Edge | Dual | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 66 | 2 | Female | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Right Angle Through Hole | -40 C | 105 ░C | Gold | 132 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Black | Cantilever | Non Specified - Dual Edge | 0.128 " | 3.25 mm | Dual | ||
EDAC Inc. | 2 | Polyester Thermoplastic | 66 | 2 | Female | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | -40 C | 105 ░C | Gold | 132 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Black | Cantilever | Non Specified - Dual Edge | Dual | Card Extender Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | 2 | Polyester Thermoplastic | 66 | 2 | Female | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Right Angle Through Hole | -40 C | 105 ░C | Gold | 132 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Black | Cantilever | Non Specified - Dual Edge | Dual | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | 2 | Polyester Thermoplastic | 66 | 2 | Female | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | -40 C | 105 ░C | Gold | 132 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Black | Cantilever | Non Specified - Dual Edge | Dual | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 66 | 2 | Female | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | -40 C | 105 ░C | Gold | 132 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Black | Cantilever | Non Specified - Dual Edge | 0.116 " | 2.95 mm | Dual | Floating Bobbin Flush Mount | |
EDAC Inc. | 2 | Polyester Thermoplastic | 66 | 2 | Female | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | -40 C | 105 ░C | Gold | 132 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Black | Cantilever | Non Specified - Dual Edge | Dual | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 66 | 2 | Female | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | -40 C | 105 ░C | Gold | 132 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Black | Cantilever | Non Specified - Dual Edge | Dual | 4-40 Threaded Insert Top Mount Opening | |||
EDAC Inc. | 2 | Polyester Thermoplastic | 66 | 2 | Female | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | -40 C | 105 ░C | Gold | 132 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Black | Cantilever | Non Specified - Dual Edge | Dual | Card Extender Card Guides | 4-40 Flush Mount Threaded Insert Top Opening |
