085735 Series
Manufacturer: Molex
Beta
⌘K
CONN JACK 8PORT 1000 BASE-T PCB
| Part | Contact Finish Thickness | Contact Finish Thickness | Tab Direction | Number of Cores per Jack | Contact Material | Contact Finish | Height Above Board | Height Above Board | Termination | Orientation | Features | Mounting Type | Applications | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Shield Material | Number of Ports | Connector Type | Housing Material | LED Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

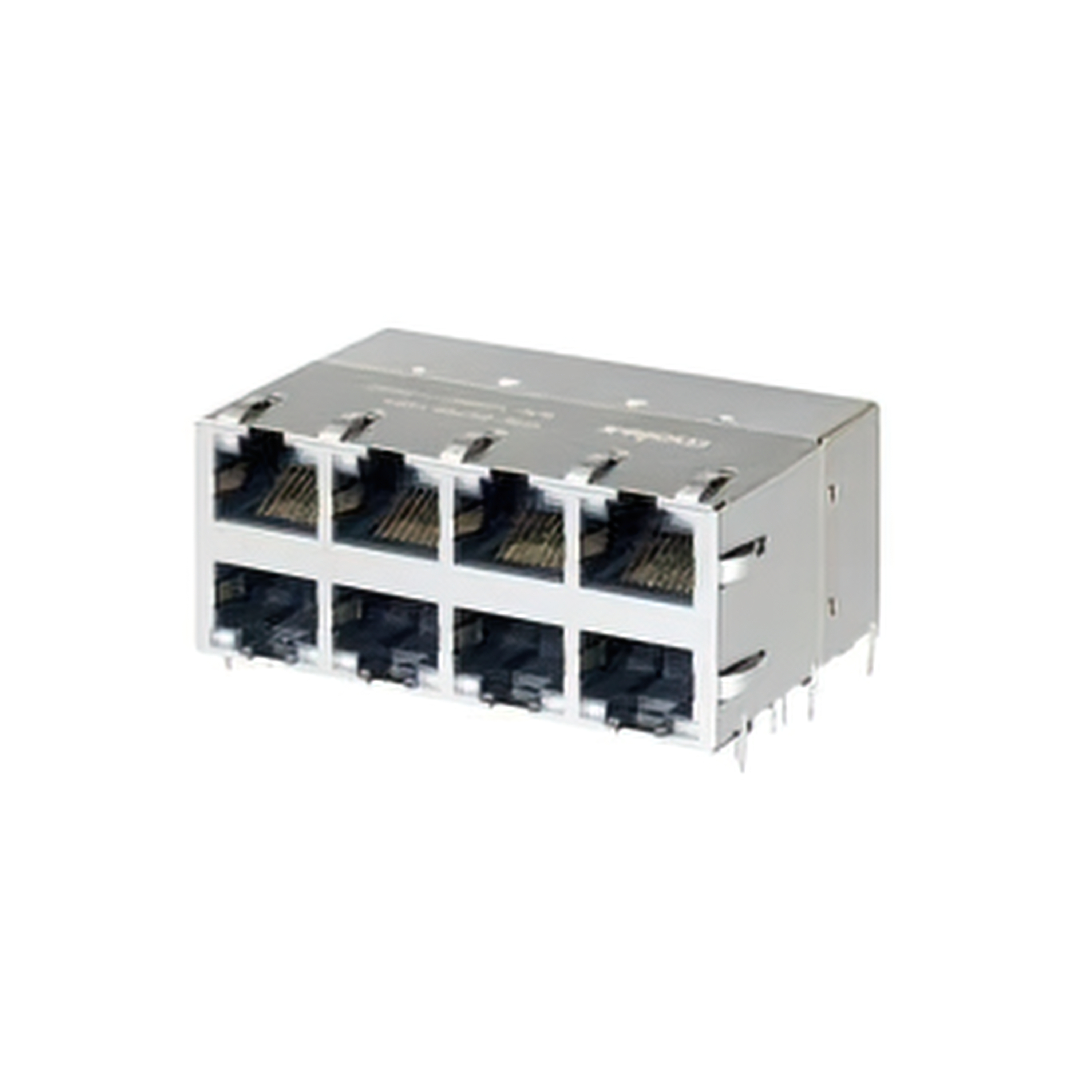

 Molex | 0.76 Ám | 30 Áin | Up and Down | 8 | Copper Alloy | Gold | 25.46 mm | 1.002 in | Solder | 90 ° | Board Guide | Through Hole | 10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+) | Shielded EMI Finger | 70 °C | 0 °C | 2 | Brass | 8 | RJ45 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Green Orange |

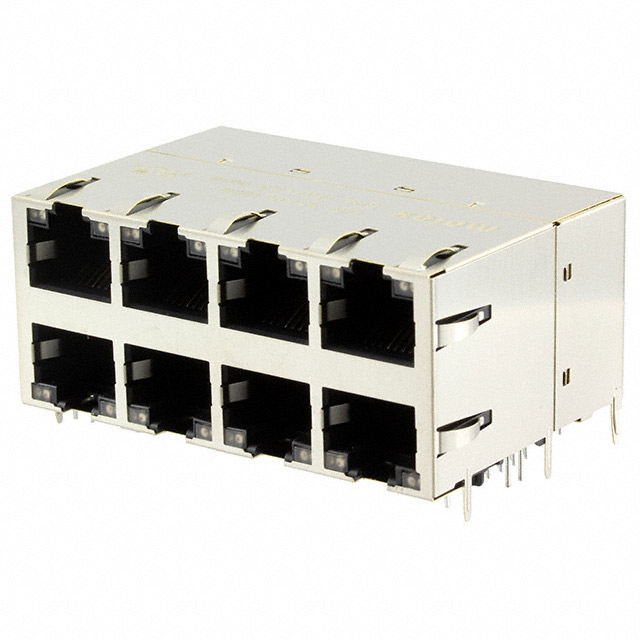

 Molex | 0.76 Ám | 30 Áin | Up and Down | 8 | Copper Alloy | Gold | 25.46 mm | 1.002 in | Solder | 90 ° | Board Guide | Through Hole | 10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+) | Shielded EMI Finger | 70 °C | 0 °C | 2 | Brass | 8 | RJ45 | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Green Yellow |
