SS0750300 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SNAP ACTION SPDT 3A 125V
| Part | Release Force | Actuator Type | Mounting Type | Mechanical Life | Pretravel | Pretravel | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Operating Force | Operating Position | Operating Position | Current Rating (Amps) | Switch Function | Electrical Life | Circuit | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

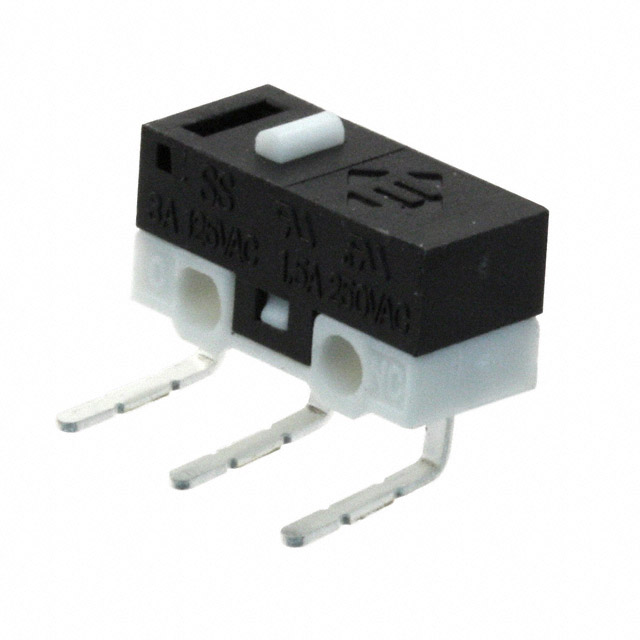

 E-Switch | 25 gf | Round (Pin Plunger) | Right Angle Through Hole | 1000000 Cycles | 0.014 in | 0.35 mm | -25 °C | 75 ░C | PC Pin | 70 gf | 7 mm | 0.276 in | 3 A | On-Mom | 100000 Cycles | SPDT | 125 V |
 E-Switch | 25 gf | Round (Pin Plunger) | Chassis Mount | 1000000 Cycles | 0.014 in | 0.35 mm | -25 °C | 75 ░C | Solder Lug | 70 gf | 7 mm | 0.276 in | 3 A | On-Mom | 100000 Cycles | SPDT | 125 V |

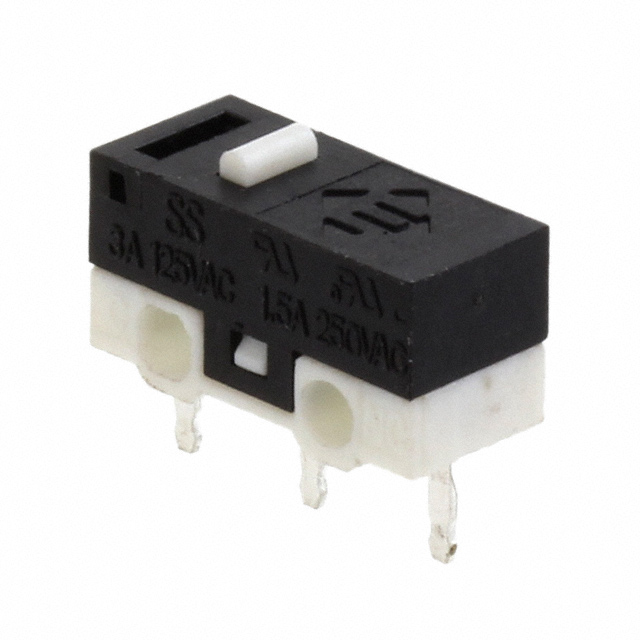

 E-Switch | 25 gf | Round (Pin Plunger) | Through Hole | 1000000 Cycles | 0.014 in | 0.35 mm | -25 °C | 75 ░C | PC Pin | 70 gf | 7 mm | 0.276 in | 3 A | On-Mom | 100000 Cycles | SPDT | 125 V |
