MY4F-D Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 4PDT 3A 12V
| Part | Switching Voltage | Coil Current | Contact Form | Coil Voltage | Relay Type | Must Operate Voltage | Contact Rating (Current) | Coil Resistance | Operate Time | Contact Material | Termination Style | Approval Agency | Load - Max Switching | Must Release Voltage | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

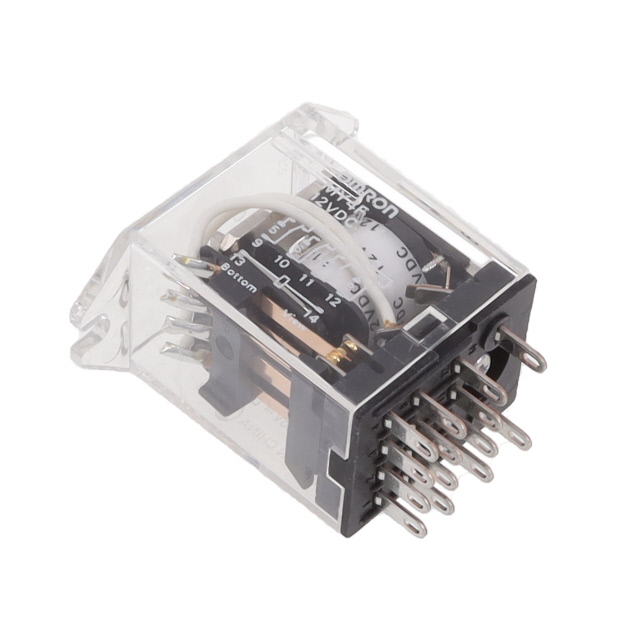

 Omron Electronics Inc-EMC Div | 125 VDC 250 VAC | 72.7 mA | 4PDT (4 Form C) | 12 VDC | General Purpose | 9.6 VDC | 3 A | 165 Ohms | 20 ms | Gold (Au) Silver (Ag) | Solder Lug | CE CSA UR VDE | 375 W 750 VA | 1.2 VDC | Non Latching | 70 °C | -55 °C | Chassis Mount | 20 ms |

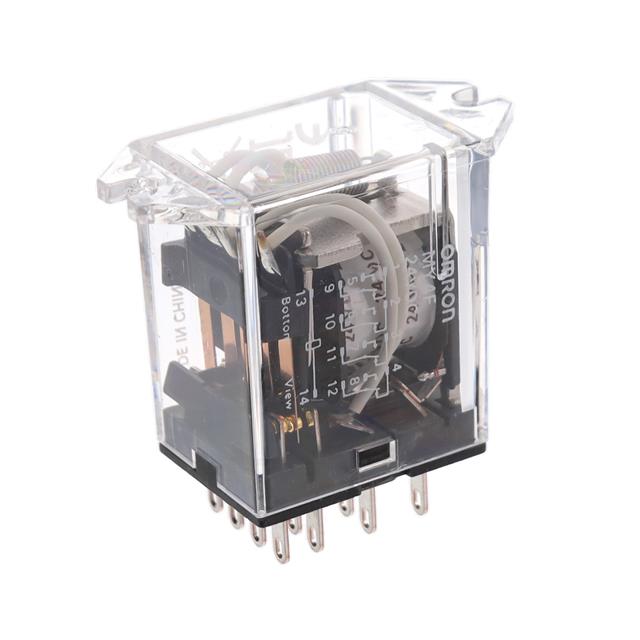

 Omron Electronics Inc-EMC Div | 125 VDC 250 VAC | 36.3 mA | 4PDT (4 Form C) | 24 VDC | General Purpose | 19.2 VDC | 3 A | 662 Ohms | 20 ms | Gold (Au) Silver (Ag) | Solder Lug | CE CSA UR VDE | 375 W 750 VA | 2.4 VDC | Non Latching | 70 °C | -55 °C | Chassis Mount | 20 ms |
