328657 Series

Catalog

CONN RING CIRC 16-22AWG #2 CRIMP

Part	Material - Insulation	Color	Contact Material	Termination	Terminal Type	Insulation	Stud/Tab Size	Length - Overall [x]	Length - Overall	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Features	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Thickness	Thickness	Mounting Type

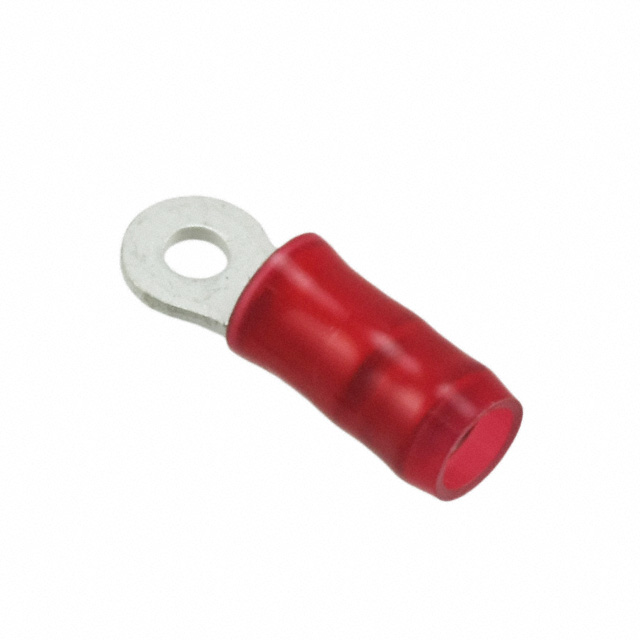

TE Connectivity Raychem Cable Protection 2-328657-1	Nylon Polyamide (PA)	Red	Copper	Crimp	Circular	Insulated	2 Stud	0.672 "	17.07 mm	2.03 mm	3.18 mm	0.125 "	0.08 in	Serrated Termination	5.54 mm	0.218 in	22 AWG	16 AWG	Tin	0.031 in	0.79 mm	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 8-328657-1	Nylon Polyamide (PA)	Red	Copper	Crimp	Circular	Insulated	2 Stud	0.672 "	17.07 mm	2.03 mm	3.18 mm	0.125 "	0.08 in	Serrated Termination	5.54 mm	0.218 in	22 AWG	16 AWG	Tin	0.031 in	0.79 mm	Free Hanging (In-Line)
