AON6906 Series

Catalog

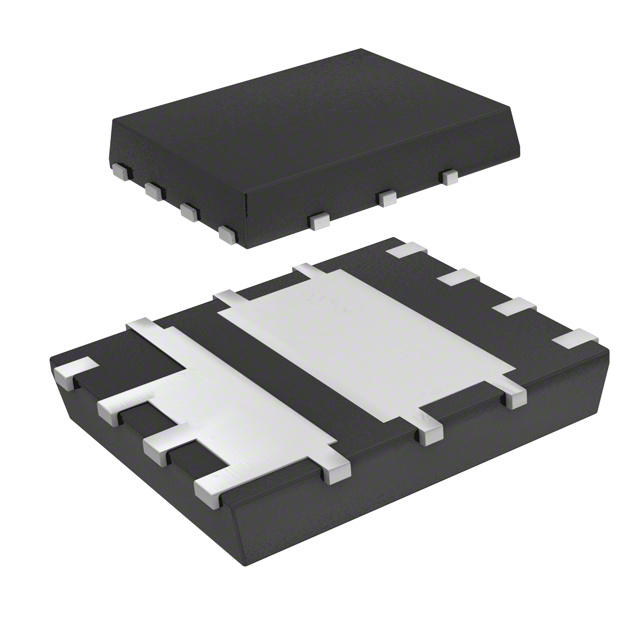

MOSFET 2N-CH 30V 9.1A/10A 8DFN

Part	Technology	Mounting Type	Package / Case	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds [Max]	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Vgs(th) (Max) @ Id	Power - Max	Power - Max	FET Feature	Supplier Device Package
Alpha & Omega Semiconductor Inc. AON6906A	MOSFET (Metal Oxide)	Surface Mount	8-PowerVDFN	9.1 A 10 A	670 pF	30 V	14.4 mOhm	9 nC	2 N-Channel (Dual) Asymmetrical	150 °C	-55 °C	2.4 V	1.9 W	2 W	Logic Level Gate	8-DFN (5x6)
