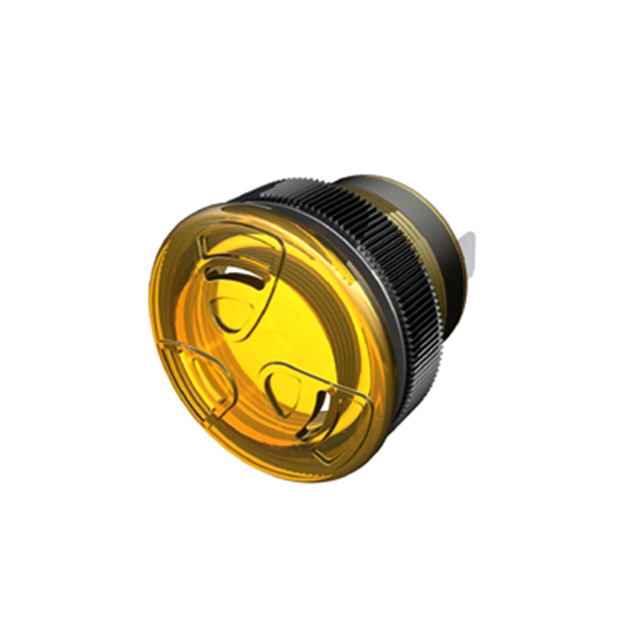

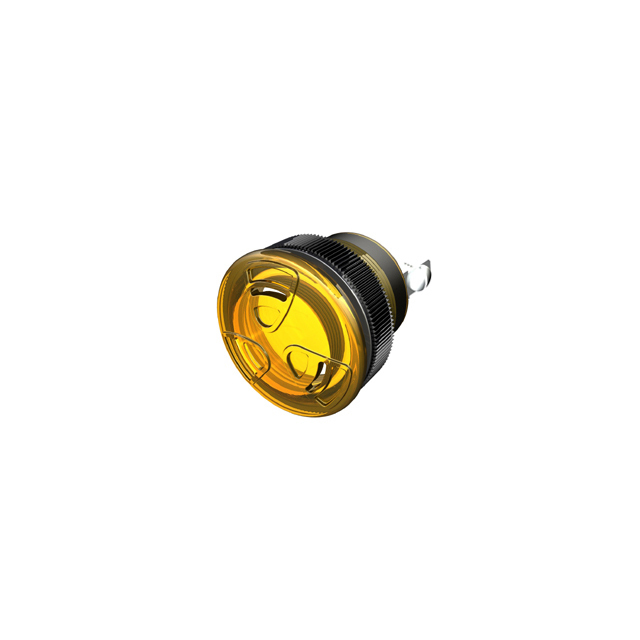

TLHB-88Y Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 33.02MM PNL MNT
| Part | Port Location | Mounting Type | Sound Pressure Level (SPL) | Ingress Protection | Approval Agency | Input Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage Range [Max] | Voltage Range [Min] | Frequency | Operating Mode | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Termination | Termination | Termination | Driver Circuitry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Top | Panel Mount | 103 dB | IP68 - Dust Tight Waterproof | UL UR | DC | 1.3 in | 33.02 mm | 30 V | 9 V | 2.9 kHz | Pulse Slow | 29.97 mm | 1.18 in | 50 mA | 110 mA | Quick Connect Tab | 0.25 " | 6.35 mm | Indicator Internally Driven |
 Floyd Bell Inc | Top | Panel Mount | 103 dB | IP68 - Dust Tight Waterproof | UL UR | DC | 1.3 in | 33.02 mm | 30 V | 9 V | 2.9 kHz | Fast Pulse | 29.97 mm | 1.18 in | 50 mA | 110 mA | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | Indicator Internally Driven |
 Floyd Bell Inc | Top | Panel Mount | 103 dB | IP68 - Dust Tight Waterproof | UL UR | DC | 1.3 in | 33.02 mm | 30 V | 9 V | 2.9 kHz | Pulse Slow | 29.97 mm | 1.18 in | 50 mA | 110 mA | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | Indicator Internally Driven |
 Floyd Bell Inc | Top | Panel Mount | 103 dB | IP68 - Dust Tight Waterproof | UL UR | DC | 1.3 in | 33.02 mm | 30 V | 9 V | 2.9 kHz | Fast Pulse | 29.97 mm | 1.18 in | 50 mA | 110 mA | Quick Connect Tab | 0.25 " | 6.35 mm | Indicator Internally Driven |
