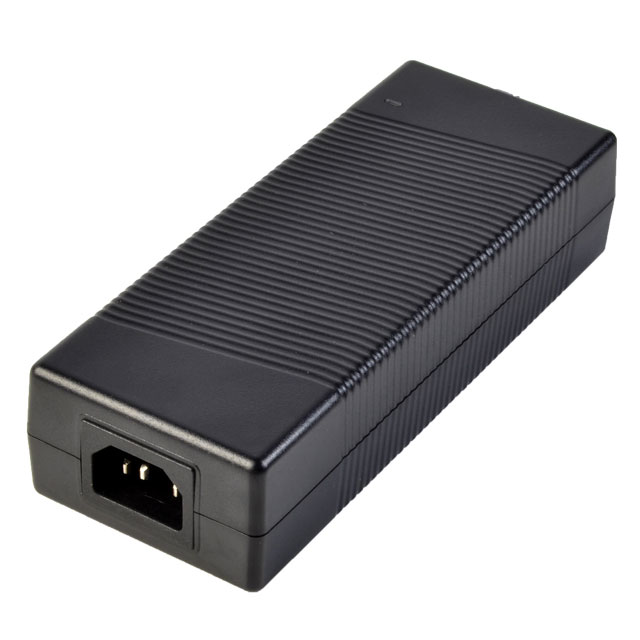

SDI120 Series

Manufacturer: CUI Inc.

Catalog

AC/DC DESKTOP ADAPTER 19V 120W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Input Type	Efficiency	Input Connector	Output Connector	No Load Power Consumption	Applications	Form	Current - Output (Max) [Max]	Cord Length	Cord Length	Region Utilized	Approval Agency	Power (Watts)	Operating Temperature [Max]	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Weight [custom]	Weight [custom]	Voltage - Output	Weight	Weight	Current - Output (Max)
CUI Inc. SDI120-19-UC-P51	1.54 in	2.6 in	39 mm	66 mm	168.1 mm	6.62 in	Cord	CoC Tier 2 Level VI	IEC 320-C14	Power DIN 4 Pin	210 mW	ITE (Commercial)	Desktop (Class I)	6.3 A	1.2 m	47.2 in	North America	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	120 W	40 °C	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	264 VAC	90 VAC	544.3 g	1.2 lbs	19 V
CUI Inc. SDI120-12-UC-P51	1.54 in	2.6 in	39 mm	66 mm	168.1 mm	6.62 in	Cord	CoC Tier 2 Level VI	IEC 320-C14	Power DIN 4 Pin	210 mW	ITE (Commercial)	Desktop (Class I)	9 A	1.2 m	47.2 in	North America	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	108 W	40 °C	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	264 VAC	90 VAC			12 V	1.4 lbs	635 g
CUI Inc. SDI120-24-U2-P51	1.54 in	2.6 in	39 mm	66 mm	168.1 mm	6.62 in	Cord	Level VI	IEC 320-C14	Power DIN 4 Pin	210 mW	ITE (Commercial)	Desktop (Class I)		1.5 m	59 in	Europe	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	120 W	40 °C	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	264 VAC	90 VAC			24 V			5 A
CUI Inc. SDI120-12-U-P51	1.54 in	2.6 in	39 mm	66 mm	168.1 mm	6.62 in	Cord (Sold Separately)	CoC Tier 2 Level VI	IEC 320-C14	Power DIN 4 Pin	210 mW	ITE (Commercial)	Desktop (Class I)	9 A	1.2 m	47.2 in	International	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	108 W	40 °C	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	264 VAC	90 VAC			12 V	1.4 lbs	635 g
CUI Inc. SDI120-24-U-P51	1.54 in	2.6 in	39 mm	66 mm	168.1 mm	6.62 in	Cord (Sold Separately)	CoC Tier 2 Level VI	IEC 320-C14	Power DIN 4 Pin	210 mW	ITE (Commercial)	Desktop (Class I)		1.5 m	59 in	International	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	120 W	40 °C	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	264 VAC	90 VAC	589.7 g	1.3 lbs	24 V			5 A
CUI Inc. SDI120-48-U2-P51	1.54 in	2.6 in	39 mm	66 mm	168.1 mm	6.62 in	Cord	Level VI	IEC 320-C14	Power DIN 4 Pin	210 mW	ITE (Commercial)	Desktop (Class I)	2.5 A	1.5 m	59 in	Europe	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	120 W	40 °C	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	264 VAC	90 VAC			48 V
