091M Series

Catalog

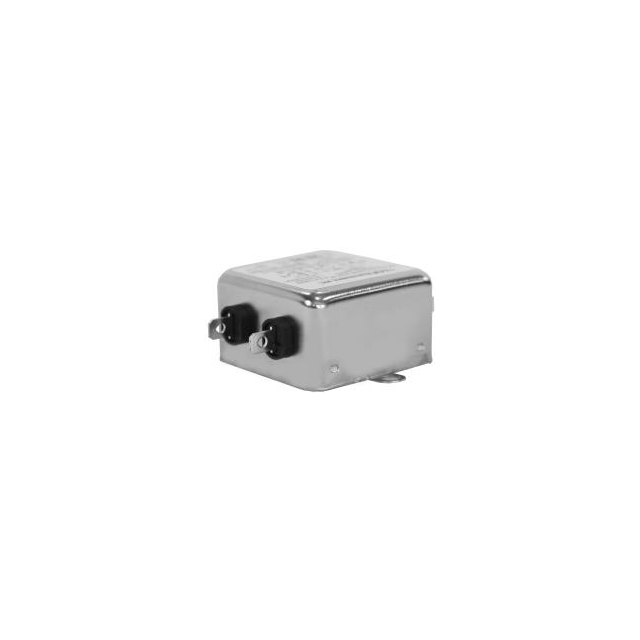

LINE FILTER 250VAC 10A CHASSIS

Part	Filter Type	Mounting Type	Approval Agency	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Voltage - Rated AC	Termination Style	Voltage - Rated AC (Phase to Phase)	Current
Astrodyne TDI 091M.01001.00	Single Phase	Chassis Mount	CE cURus SEMKO	Single Stage	85 °C	-25 °C	60 Hz	50 Hz	General Purpose	250 V	IEC 320-C14 Quick Connect	1.45 kV	10 A
Astrodyne TDI 091M.02501.00	Single Phase	Chassis Mount	CE cURus SEMKO	Single Stage	85 °C	-25 °C	60 Hz	50 Hz	General Purpose	250 V	IEC 320-C20 Quick Connect	1.45 kV	25 A
Astrodyne TDI 091M.01501.00	Single Phase	Chassis Mount	CE cURus SEMKO	Single Stage	85 °C	-25 °C	60 Hz	50 Hz	General Purpose	250 V	IEC 320-C14 Quick Connect	1.45 kV	15 A
Astrodyne TDI 091M.04001.00	Single Phase	Chassis Mount	CE cURus SEMKO	Single Stage	85 °C	-25 °C	60 Hz	50 Hz	General Purpose	250 V	Quick Connect	1.45 kV	40 A
Astrodyne TDI 091M.00301.00	Single Phase	Chassis Mount	CE cURus SEMKO	Single Stage	85 °C	-25 °C	60 Hz	50 Hz	General Purpose	250 V	IEC 320-C14 Quick Connect	1.45 kV	3 A
Astrodyne TDI 091M.00101.00	Single Phase	Chassis Mount	CE cURus SEMKO	Single Stage	85 °C	-25 °C	60 Hz	50 Hz	General Purpose	250 V	IEC 320-C14 Quick Connect	1.45 kV	1 A
Astrodyne TDI 091M.00601.00	Single Phase	Chassis Mount	CE cURus SEMKO	Single Stage	85 °C	-25 °C	60 Hz	50 Hz	General Purpose	250 V	IEC 320-C14 Quick Connect	1.45 kV	6 A
Astrodyne TDI 091M.03001.00	Single Phase	Chassis Mount	CE cURus SEMKO	Single Stage	85 °C	-25 °C	60 Hz	50 Hz	General Purpose	250 V	IEC 320-C20 Quick Connect	1.45 kV	30 A
