74LVC3G06 Series

Catalog

IC INVERTER 3CH 3-INP 8XSON

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Max Propagation Delay @ V, Max CL	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Current - Quiescent (Max) [Max]	Supplier Device Package	Number of Circuits	Number of Inputs	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Package / Case	Logic Type	Current - Output High, Low
Freescale Semiconductor - NXP 74LVC3G06GF,115	5.5 V	1.65 V	1.7 V	2 V	-	32 mA	2.9 ns	125 °C	-40 °C	Open Drain	Surface Mount	4 µA	8-XSON (1.35x1)	3	3	0.8 V	0.7 V	8-XFDFN	Inverter

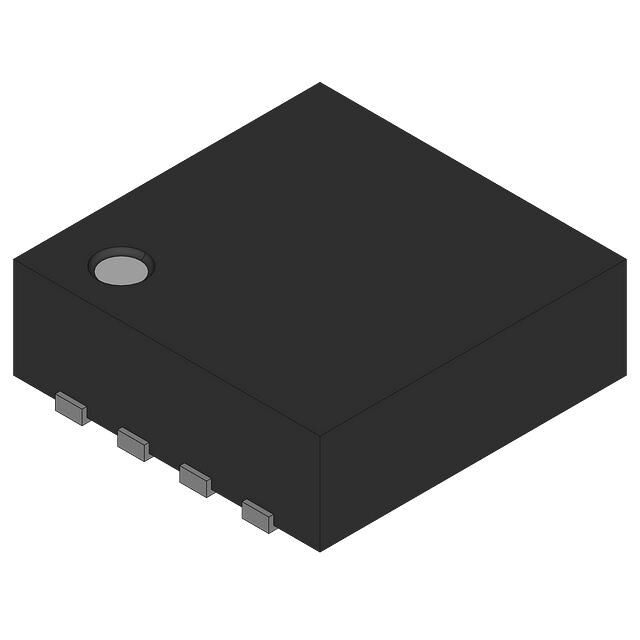

Freescale Semiconductor - NXP 74LVC3G06GM,125	5.5 V	1.65 V	1.7 V	2 V			3.7 ns	125 °C	-40 °C	Open Drain	Surface Mount	4 µA	8-XQFN (1.6x1.6)	3	3	0.8 V	0.7 V	8-XFQFN Exposed Pad	Inverter	32 mA
Freescale Semiconductor - NXP 74LVC3G06GN,115	5.5 V	1.65 V	1.7 V	2 V	-	32 mA	2.9 ns	125 °C	-40 °C	Open Drain	Surface Mount	4 µA	8-XSON (1.2x1)	3	3	0.8 V	0.7 V	8-XFDFN	Inverter
