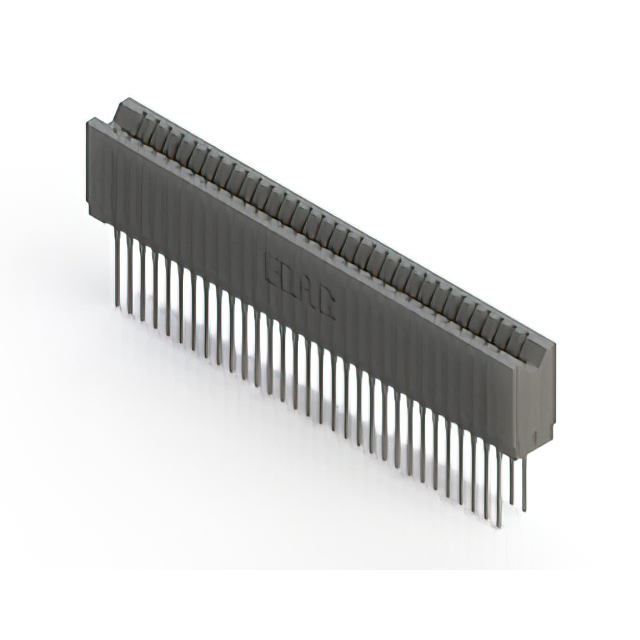

745-062 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 62POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Color	Read Out	Number of Positions/Bay/Row [custom]	Contact Material	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Card Type	Contact Type	Termination	Gender	Pitch	Pitch	Number of Positions	Contact Finish	Number of Rows [custom]	Termination Rows	Number of Rows	Number of Positions/Bay/Row
EDAC Inc. 745-062-525-206	Polyester Thermoplastic	2	-40 C	105 ░C	30 Áin	0.76 Ám	Black	Dual	31	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Press-Fit	Female	0.1 "	2.54 mm	62	Gold	2
EDAC Inc. 745-062-522-101	Polyester Thermoplastic		-40 C	105 ░C	30 Áin	0.76 Ám	Black	Single		Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Cantilever	Press-Fit	Female	0.1 "	2.54 mm	62	Gold		1	1	62
EDAC Inc. 745-062-520-106	Polyester Thermoplastic		-40 C	105 ░C	30 Áin	0.76 Ám	Black	Single		Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Cantilever	Press-Fit	Female	0.1 "	2.54 mm	62	Gold		1	1	62
EDAC Inc. 745-062-545-206	Polyester Thermoplastic	2	-40 C	105 ░C	30 Áin	0.76 Ám	Black	Dual	31	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Press-Fit	Female	0.1 "	2.54 mm	62	Gold	2
EDAC Inc. 745-062-522-106	Polyester Thermoplastic		-40 C	105 ░C	30 Áin	0.76 Ám	Black	Single		Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Cantilever	Press-Fit	Female	0.1 "	2.54 mm	62	Gold		1	1	62
EDAC Inc. 745-062-525-101	Polyester Thermoplastic		-40 C	105 ░C	30 Áin	0.76 Ám	Black	Single		Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Cantilever	Press-Fit	Female	0.1 "	2.54 mm	62	Gold		1	1	62
EDAC Inc. 745-062-522-206	Polyester Thermoplastic	2	-40 C	105 ░C	30 Áin	0.76 Ám	Black	Dual	31	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Press-Fit	Female	0.1 "	2.54 mm	62	Gold	2
EDAC Inc. 745-062-560-206	Polyester Thermoplastic	2	-40 C	105 ░C	30 Áin	0.76 Ám	Black	Dual	31	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever Make Before Break	Press-Fit	Female	0.1 "	2.54 mm	62	Gold	2
EDAC Inc. 745-062-525-106	Polyester Thermoplastic		-40 C	105 ░C	30 Áin	0.76 Ám	Black	Single		Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Cantilever	Press-Fit	Female	0.1 "	2.54 mm	62	Gold		1	1	62
EDAC Inc. 745-062-540-106	Polyester Thermoplastic		-40 C	105 ░C	30 Áin	0.76 Ám	Black	Single		Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Cantilever	Press-Fit Wire Wrap	Female	0.1 "	2.54 mm	62	Gold		1	1	62
