M2T22TX Series

Catalog

SWITCH ROCKER DPDT 0.4VA 28V

Part	Electrical Life	Mechanical Life	Voltage Rating - AC	Actuator Type	Mounting Type	Circuit	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Color - Actuator/Cap	Features	Switch Function	Actuator Marking	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]

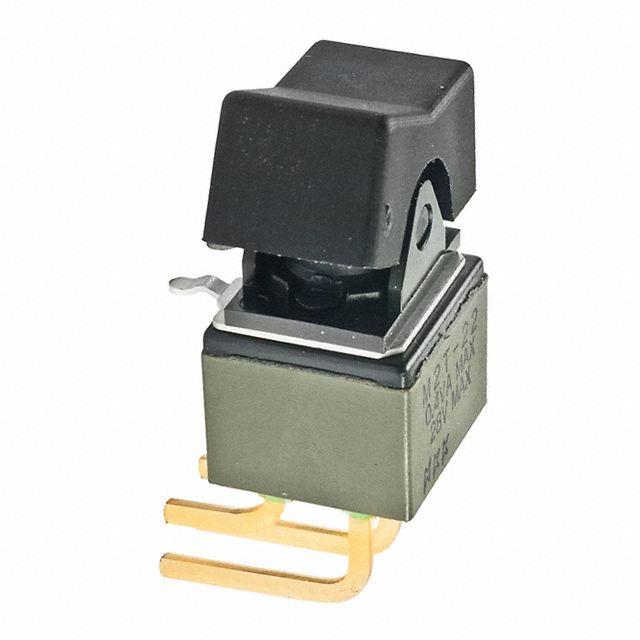

NKK Switches M2T22TXG30-DA	50000 Cycles	50000 Cycles	28 V	Concave	Right Angle Through Hole	DPDT	28 V	PC Pin	0.4 VA	Black	Process Sealed	On-On	No Marking	CSA UL	85 °C	-30 ░C
NKK Switches M2T22TXA41	25000 Steps	50000 Cycles	125 V	Actuator Arm Cap Required	Right Angle Through Hole Vertical	DPDT	30 V	PC Pin	4 A 6 A		Process Sealed	On-On	Varies by Cap	CSA UL	85 °C	-30 ░C
NKK Switches M2T22TXW13/UC-DA	25000 Steps	50000 Cycles	125 V	Concave	Through Hole	DPDT	30 V	PC Pin	4 A 6 A	Black	Process Sealed	On-On	No Marking	CSA UL	85 °C	-30 ░C
NKK Switches M2T22TXW13/UC	25000 Steps	50000 Cycles	125 V	Actuator Arm Cap Required	Through Hole	DPDT	30 V	PC Pin	4 A 6 A		Process Sealed	On-On	Varies by Cap	CSA UL	85 °C	-30 ░C
NKK Switches M2T22TXA41-DC	25000 Steps	50000 Cycles	125 V	Concave	Right Angle Through Hole Vertical	DPDT	30 V	PC Pin	4 A 6 A	Red	Process Sealed	On-On	No Marking	CSA UL	85 °C	-30 ░C
NKK Switches M2T22TXG13	50000 Cycles	50000 Cycles	28 V	Actuator Arm Cap Required	Through Hole	DPDT	28 V	PC Pin	0.4 VA		Process Sealed	On-On	Varies by Cap	CSA UL	85 °C	-30 ░C
NKK Switches M2T22TXG13-DC	50000 Cycles	50000 Cycles	28 V	Concave	Through Hole	DPDT	28 V	PC Pin	0.4 VA	Red	Process Sealed	On-On	No Marking	CSA UL	85 °C	-30 ░C
