86706CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

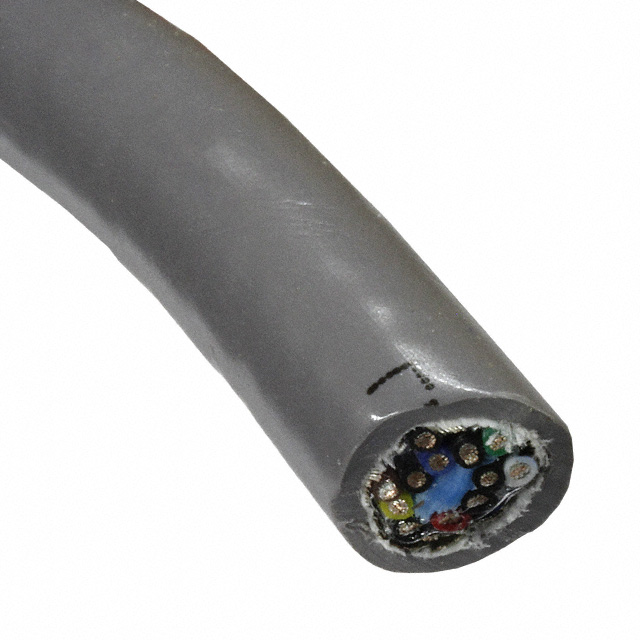

MULTI-PAIR 12COND 22AWG
| Part | Wire Gauge | Shield Material | Conductor Material | Length [x] | Length [x] | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Features | Cable Type | Number of Conductors | Ratings | Conductor Strand [custom] | Conductor Strand | Shield Type | Conductor Insulation | Jacket Color | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 22 AWG | Aluminum Copper Tinned | Copper Tinned | 500 ' | 152.4 m | Poly-Vinyl Chloride (PVC) | 0.04 in | 1.016 mm | 0.377 " | 9.58 mm | 300 V | Biological Compatibility Drain Wire | Multi-Pair | 12 | ISO 10993 UL Style 2661 | 19 Strands | 34 AWG | Braid Foil | Poly-Vinyl Chloride (PVC) | Slate | 85 % 100 % |
