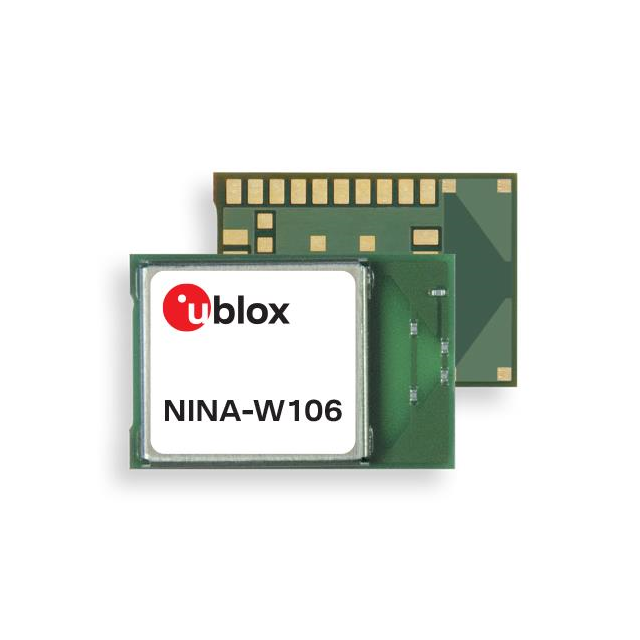

NINA-W106 Series
Manufacturer: u-blox
Beta
⌘K

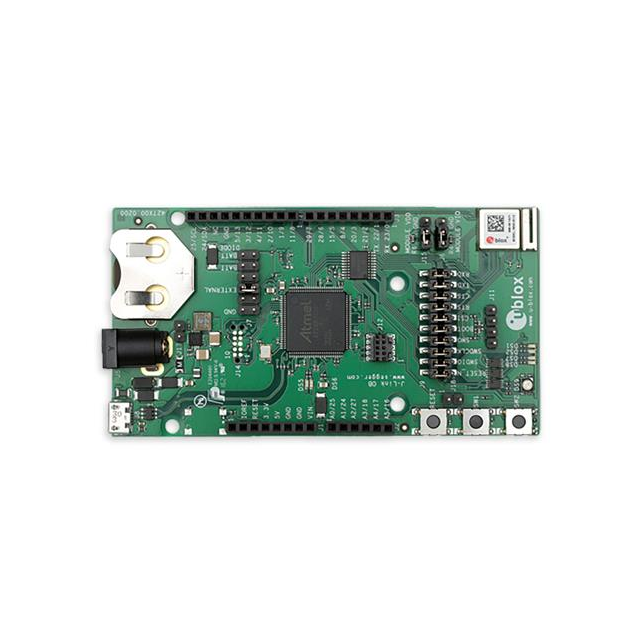

EVAL KIT NINA-W10 WIFI BT4.2 MOD
| Part | For Use With/Related Products | Supplied Contents | Contents | Type | Frequency | Utilized IC / Part | Protocol | Power - Output | Data Rate | Current - Transmitting | Antenna Type | Sensitivity | Current - Receiving | Modulation | Mounting Type | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Memory Type | Memory Size (SRAM) | Memory Size (Flash) | Memory Size (ROM) | Operating Temperature (Min) | Operating Temperature (Max) | RF Family/Standard | Serial Interfaces | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 u-blox | ESP32 NINA-W106 | Board(s) Cable(s) | Board Cable | 802.11 b/g/n (Wi-Fi Bluetooth® Smart Ready 4.x Dual Mode (BLE) Transceiver WiFi WLAN) | 2.4 GHz | ESP32 NINA-W106 | ||||||||||||||||||||
 u-blox | 2.4 GHz | ESP32-D0WD-V3 | 802.11b 802.11g 802.11n Bluetooth v4.2 | 5 dBm | 72 Mbps | 130 mA | PCB Trace | -96 dBm | 95 mA | CCK DSSS GFSK OFDM QDPSK QPSK | Surface Mount | 3.6 V | 3 V | Flash ROM SRAM | 520 kB | 4 MB | 448 kB | -40 °C | 85 °C | Bluetooth WiFi | ADC GPIO I2C SPI UART | 36-SMD Module |
