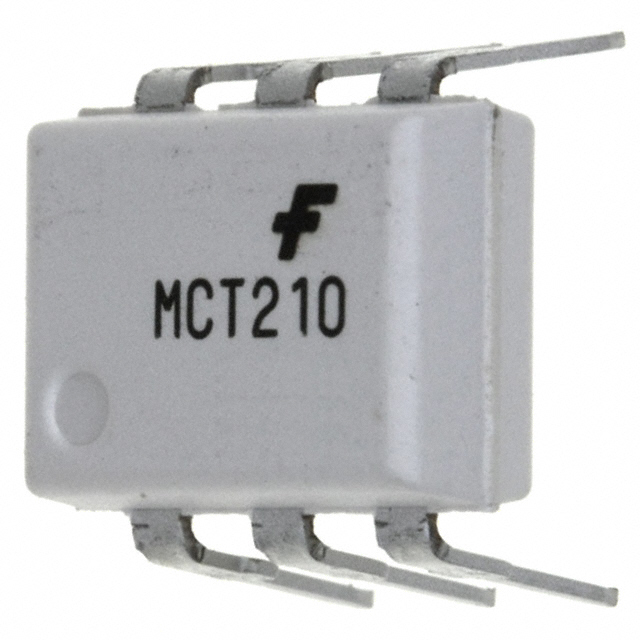

MCT210 Series
Manufacturer: ON Semiconductor
Beta
⌘K
OPTOISO 7.5KV TRANS W/BASE 6DIP
| Part | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Number of Channels | Current - DC Forward (If) (Max) [Max] | Supplier Device Package | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Current - Output / Channel | Input Type | Current Transfer Ratio (Min) [Min] | Vce Saturation (Max) [Max] | Voltage - Output (Max) [Max] | Mounting Type | Package / Case | Package / Case | Package / Case | Turn On / Turn Off Time (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 7500 Vpk | 100 °C | -55 °C | 1 | 60 mA | 6-DIP | 1 µs | 11 µs | 30 mA | DC | 150 % | 400 mV | 30 V | Through Hole | 6-DIP | 0.3 in | 7.62 mm | 1 µs 50 µs |
