NRPN051 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

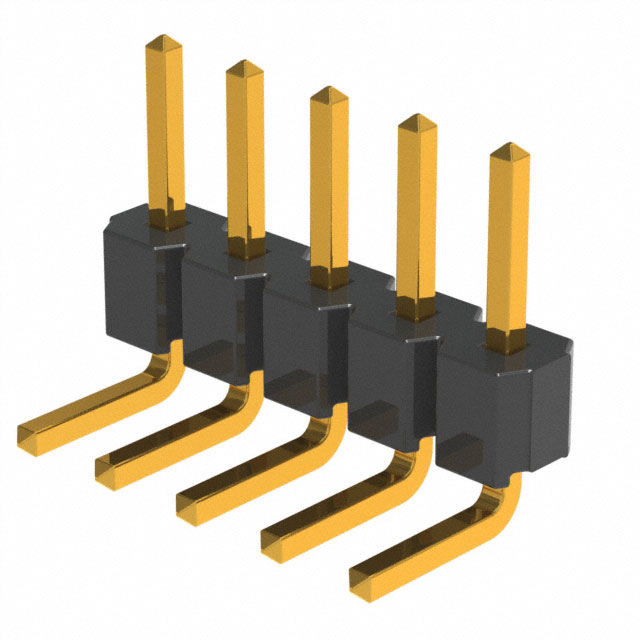

CONN HEADER R/A 5POS 2MM
| Part | Contact Finish Thickness - Post | Connector Type | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Voltage Rating | Contact Material | Number of Positions | Style | Insulation Material | Contact Finish - Mating | Contact Length - Post [custom] | Contact Length - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Mounting Type | Contact Finish Thickness - Mating | Termination | Number of Rows | Shrouding | Contact Finish - Post | Insulation Color | Current Rating (Amps) | Fastening Type | Contact Shape | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Contact Type | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Header | 0.141 in | 3.6 mm | 0.079 " | 2 mm | 150 VDC | Brass | 5 | Board to Board Cable | Nylon 6T Polyamide (PA6T) | Gold | 0.11 in | 2.79 mm | -40 C | 105 ░C | All | Right Angle Through Hole | Flash | Solder | 1 | Unshrouded | Gold | Black | 2 A | Push-Pull | Square | 2 mm | 0.079 in | UL94 V-0 | Male Pin | ||
 Sullins Connector Solutions | Flash | Header | 0.141 in | 3.6 mm | 0.079 " | 2 mm | 150 VDC | Brass | 5 | Board to Board Cable | Nylon 6T Polyamide (PA6T) | Gold | 0.11 in | 2.79 mm | -40 C | 105 ░C | All | Through Hole | Flash | Solder | 1 | Unshrouded | Gold | Black | 2 A | Push-Pull | Square | 2 mm | 0.079 in | UL94 V-0 | Male Pin | 8.4 mm | 0.331 in |
