T41135 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

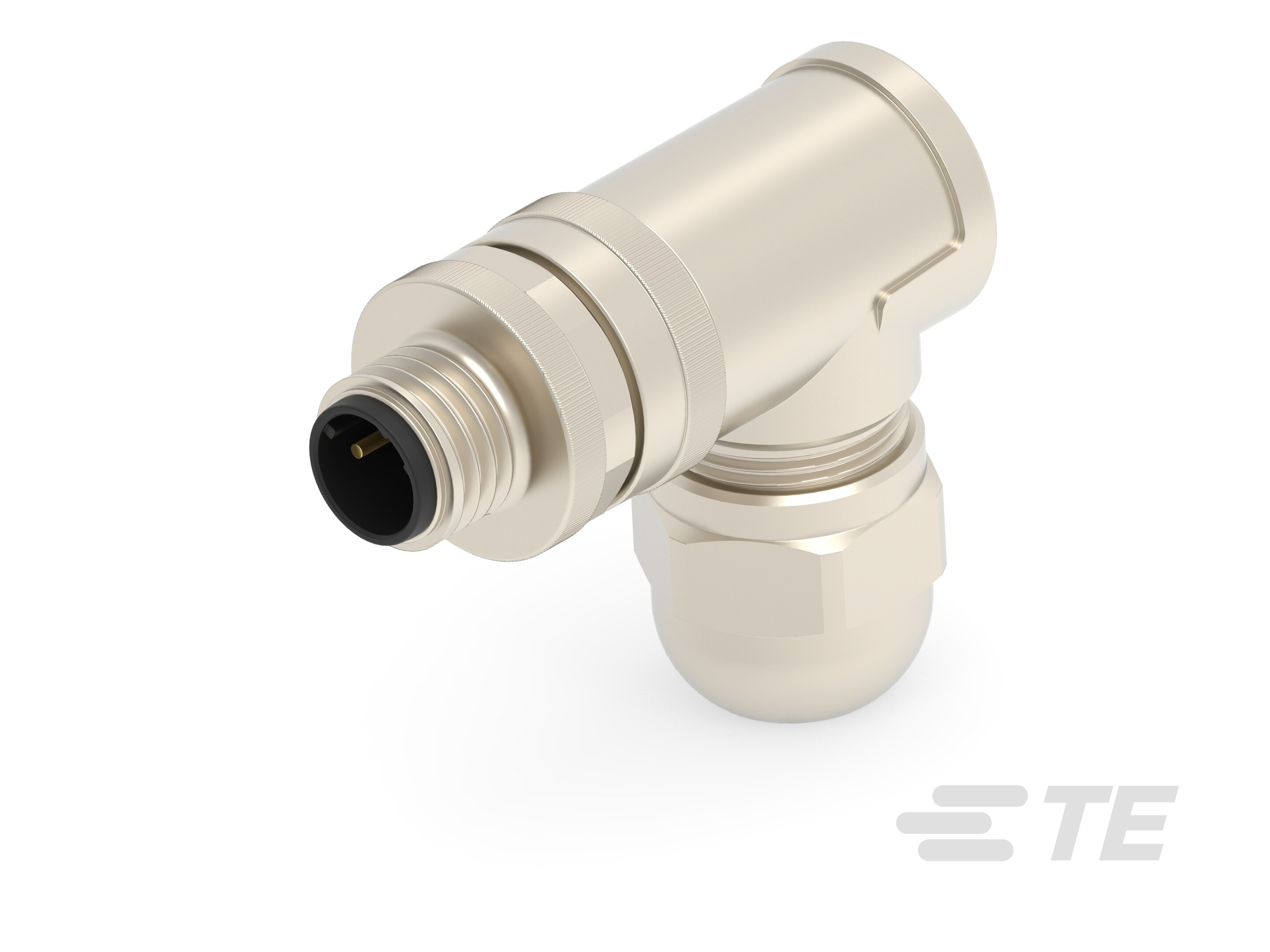

M12 M, 2P GOLD D_CODE RA SHIELDED PG9

Part	Insert Material [custom]	Insert Material [custom]	Primary Material	Orientation	Applications	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Shell Size - Insert	Shielding	Ingress Protection	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Voltage Rating	Backshell Material, Plating	Features	Shell Material	Mounting Type	Current Rating (Amps)	Color	Connector Type	Termination	Contact Finish - Mating	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]
TE Connectivity AMP Connectors T4113512021-000	Nylon	Polyamide (PA)	Metal	D	Industrial	Brass	85 °C	-40 C	Nickel	M12-2	Shielded	IP67 - Dust Tight Waterproof	2	0.076 µm	3 µin	Threaded	250 V	Brass Nickel	Backshell	Brass	Free Hanging (In-Line) Right Angle	4 A	Silver	Receptacle Male Pins	Screw	Gold	0.315 in	0.236 in	8 mm	6 mm
TE Connectivity AMP Connectors T4113501031-000	Nylon	Polyamide (PA)	Metal	D	Industrial	Brass	85 °C	-40 C	Nickel	M12-3	Unshielded	IP67 - Dust Tight Waterproof		0.076 µm	3 µin	Threaded	250 V	Polybutylene Terephthalate (PBT) Glass Filled	Backshell	Brass	Free Hanging (In-Line) Right Angle	4 A	Black Silver	Receptacle Male Pins	Screw	Gold	0.236 in	0.157 in	6 mm	4 mm
TE Connectivity AMP Connectors T4113502042-000	Nylon	Polyamide (PA)	Metal	D	Industrial	Brass	85 °C	-40 C	Nickel	M12-4	Unshielded	IP67 - Dust Tight Waterproof	4			Threaded	250 V	Polybutylene Terephthalate (PBT) Glass Filled	Backshell	Brass	Free Hanging (In-Line) Right Angle	4 A	Black Silver	Receptacle Male Pins	Screw	Silver	0.315 in	0.236 in	8 mm	6 mm	2.03 µm	80 µin

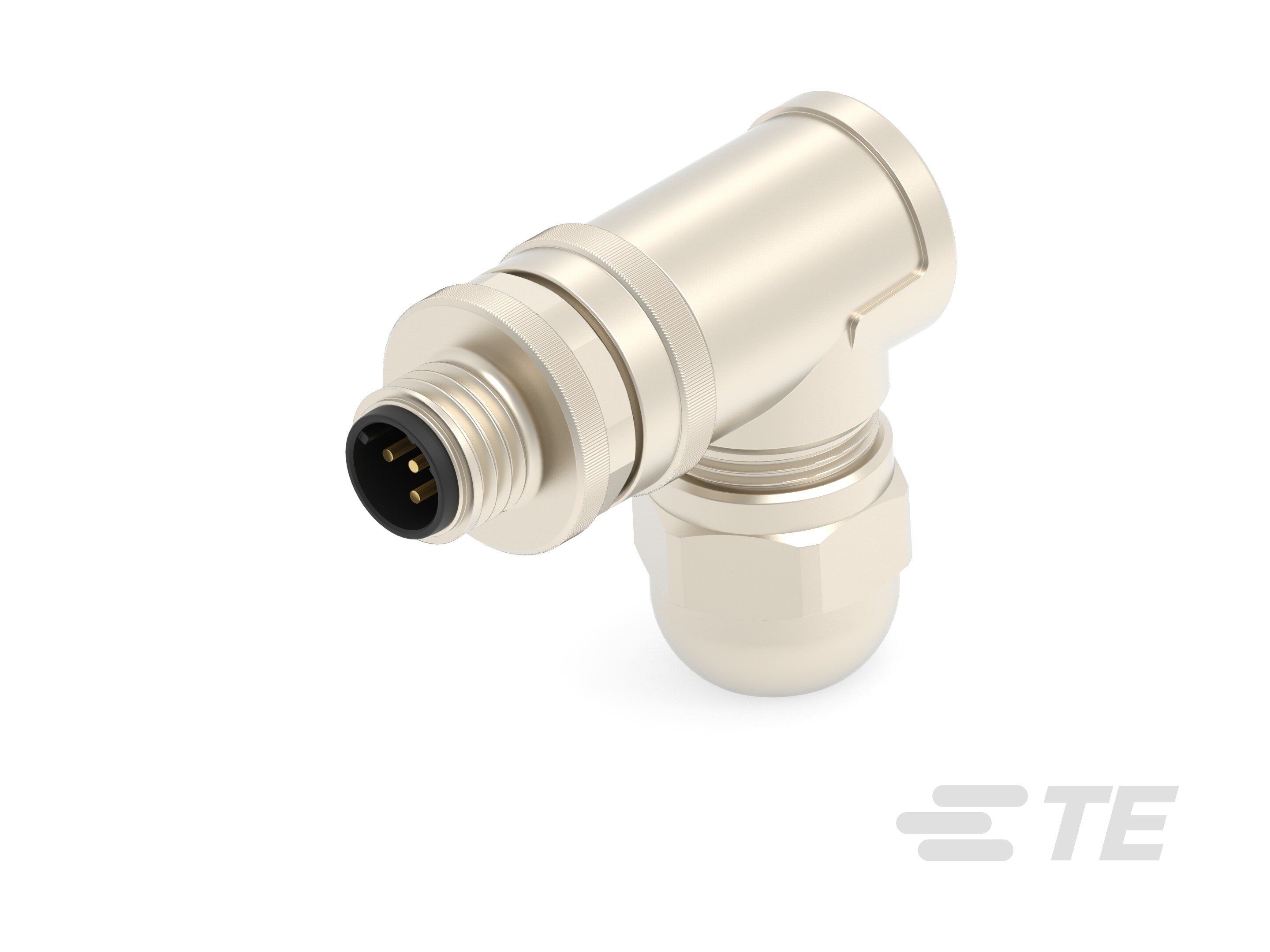

TE Connectivity AMP Connectors T4113511051-000	Nylon	Polyamide (PA)	Metal	D	Industrial	Zinc Alloy	85 °C	-40 C	Nickel	M12-5	Shielded	IP67 - Dust Tight Waterproof	5	0.076 µm	3 µin	Threaded	60 VDC	Brass Nickel	Backshell	Brass	Free Hanging (In-Line) Right Angle	4 A	Silver	Receptacle Male Pins	Screw	Gold	0.236 in	0.157 in	6 mm	4 mm

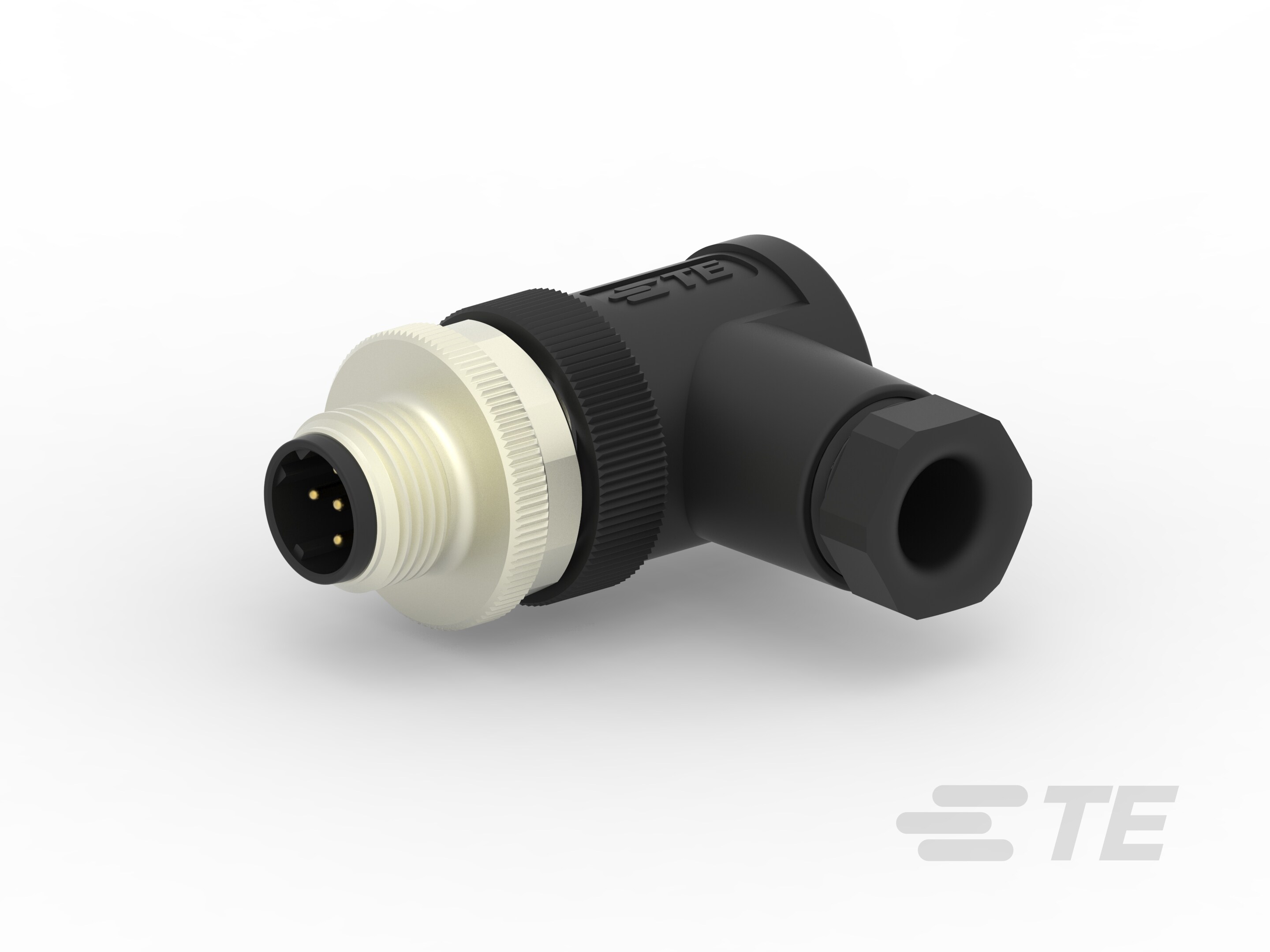

TE Connectivity AMP Connectors T4113501051-000	Nylon	Polyamide (PA)	Metal	D	Industrial	Zinc Alloy	85 °C	-40 C	Nickel	M12-5	Unshielded	IP67 - Dust Tight Waterproof	5	0.076 µm	3 µin	Threaded	60 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Backshell	Brass	Free Hanging (In-Line) Right Angle	4 A	Black Silver	Receptacle Male Pins	Screw	Gold	0.236 in	0.157 in	6 mm	4 mm
TE Connectivity AMP Connectors T4113511032-000	Nylon	Polyamide (PA)	Metal	D	Industrial	Brass	85 °C	-40 C	Nickel	M12-3	Shielded	IP67 - Dust Tight Waterproof				Threaded	250 V	Brass Nickel	Backshell	Brass	Free Hanging (In-Line) Right Angle	4 A	Silver	Receptacle Male Pins	Screw	Silver	0.236 in	0.157 in	6 mm	4 mm	2.03 µm	80 µin

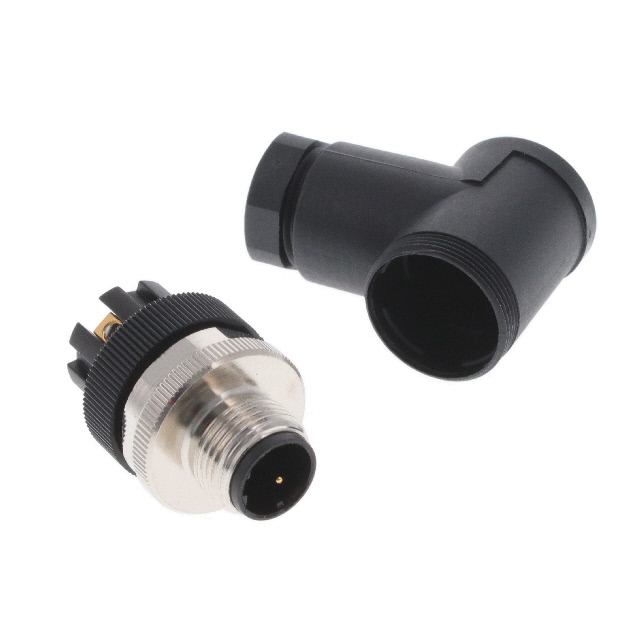

TE Connectivity AMP Connectors T4113502021-000	Nylon	Polyamide (PA)	Metal	D	Industrial	Brass	85 °C	-40 C	Nickel	M12-2	Unshielded	IP67 - Dust Tight Waterproof	2	0.076 µm	3 µin	Threaded	250 V	Polybutylene Terephthalate (PBT) Glass Filled	Backshell	Brass	Free Hanging (In-Line) Right Angle	4 A	Black Silver	Receptacle Male Pins	Screw	Gold	0.315 in	0.236 in	8 mm	6 mm
TE Connectivity AMP Connectors T4113511021-000	Nylon	Polyamide (PA)	Metal	D	Industrial	Brass	85 °C	-40 C	Nickel	M12-2	Shielded	IP67 - Dust Tight Waterproof	2	0.076 µm	3 µin	Threaded	250 V	Brass Nickel	Backshell	Brass	Free Hanging (In-Line) Right Angle	4 A	Silver	Receptacle Male Pins	Screw	Gold	0.236 in	0.157 in	6 mm	4 mm
TE Connectivity AMP Connectors T4113501021-000	Nylon	Polyamide (PA)	Metal	D	Industrial	Brass	85 °C	-40 C	Nickel	M12-2	Unshielded	IP67 - Dust Tight Waterproof	2	0.076 µm	3 µin	Threaded	250 V	Polybutylene Terephthalate (PBT) Glass Filled	Backshell	Brass	Free Hanging (In-Line) Right Angle	4 A	Black Silver	Receptacle Male Pins	Screw	Gold	0.236 in	0.157 in	6 mm	4 mm
TE Connectivity AMP Connectors T4113512032-000	Nylon	Polyamide (PA)	Metal	D	Industrial	Brass	85 °C	-40 C	Nickel	M12-3	Shielded	IP67 - Dust Tight Waterproof				Threaded	250 V	Brass Nickel	Backshell	Brass	Free Hanging (In-Line) Right Angle	4 A	Silver	Receptacle Male Pins	Screw	Silver	0.315 in	0.236 in	8 mm	6 mm	2.03 µm	80 µin
