CSS-1310 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SLIDE SWITCH, SP3T, 0.1A, 12VDC, TH
| Part | Voltage Rating - DC | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Switch Function | Switch Travel | Actuator Material | Contact Finish | Actuator Type | Current Rating (Amps) | Operating Force [Max] | Operating Force [Min] | Termination Style | Actuator Length [x] | Contact Timing | Circuit | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

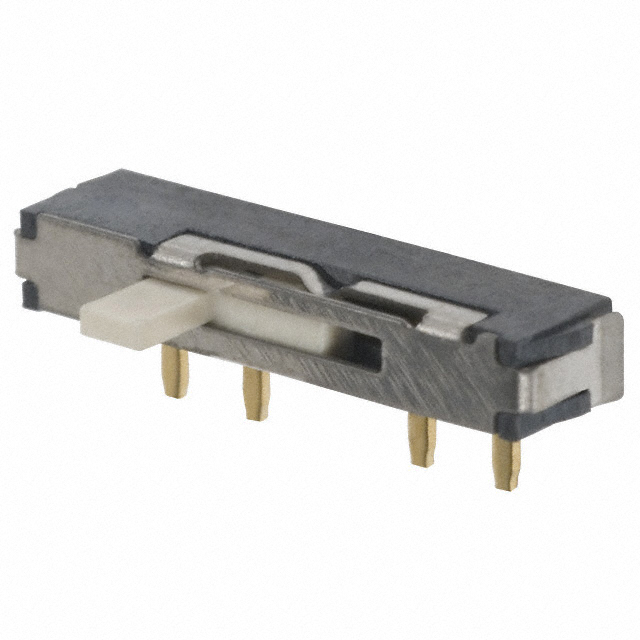

 Nidec Components Corporation | 12 V | Through Hole Right Angle | -20 C | 70 °C | Copper Alloy | On-On-On | 2 mm | Liquid Crystal Polymer (LCP) | Gold | Standard | 100 mA | 357 gf | 102 gf | PC Pin | 2 mm | Non-Shorting | SP3T | 10000 Cycles |

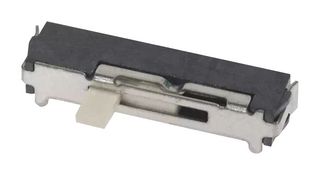

 Nidec Components Corporation | 12 V | Surface Mount Right Angle | -20 C | 70 °C | Copper Alloy | On-On-On | 2 mm | Liquid Crystal Polymer (LCP) | Gold | Standard | 100 mA | 357 gf | 102 gf | Gull Wing | 2 mm | Non-Shorting | SP3T | 10000 Cycles |
