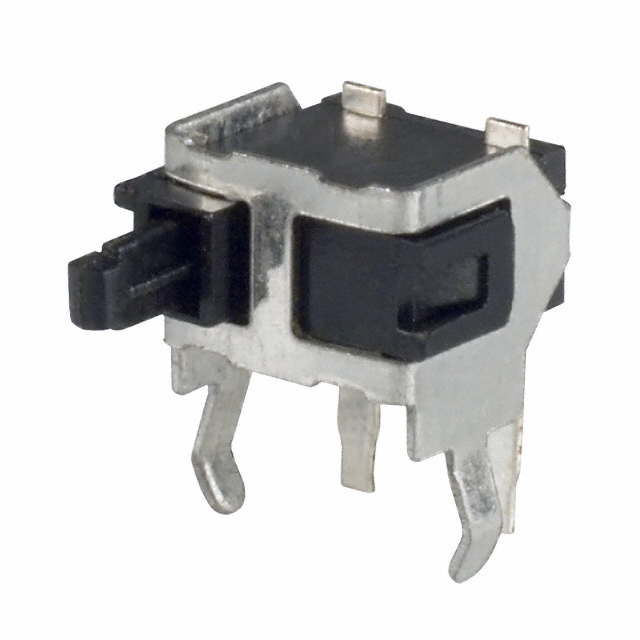

TD1105 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH DETECT SPST-NO 0.1A 30V
| Part | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Operating Force | Mounting Type | Voltage Rating - DC | Termination Style | Circuit | Pretravel | Pretravel | Switch Function | Current Rating (Amps) | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Overtravel Plunger | 85 °C | -20 ░C | 50000 Cycles | 36 gf | Right Angle Through Hole | 30 V | PC Pin | SPST-NO | 0.015 " | 0.4 mm | Off-Mom | 100 mA | 0.197 in | 5 mm |
