CEDM8004 Series

Catalog

MOSFETS P-CH ENH MODE FET 30V 8.0VGS 450MA

Part	Vgs (Max) [Max]	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Power Dissipation (Max)	Mounting Type	Drain to Source Voltage (Vdss)	Technology	Supplier Device Package	FET Type	Rds On (Max) @ Id, Vgs
Central Semiconductor Corp CEDM8004VL TR PBFREE	8 V	1 V	0.88 nC	150 °C	-65 °C	SC-101 SOT-883	450 mA	1.8 V	4.5 V	55 pF	100 mW	Surface Mount	30 V	MOSFET (Metal Oxide)	SOT-883VL	P-Channel	1.1 Ohm
Central Semiconductor Corp CEDM8004 BK PBFREE	8 V	1.1 V	0.88 nC	150 °C	-65 °C	SC-101 SOT-883	450 mA	1.8 V	4.5 V	55 pF	100 mW	Surface Mount	30 V	MOSFET (Metal Oxide)	SOT-883	P-Channel	1.1 Ohm

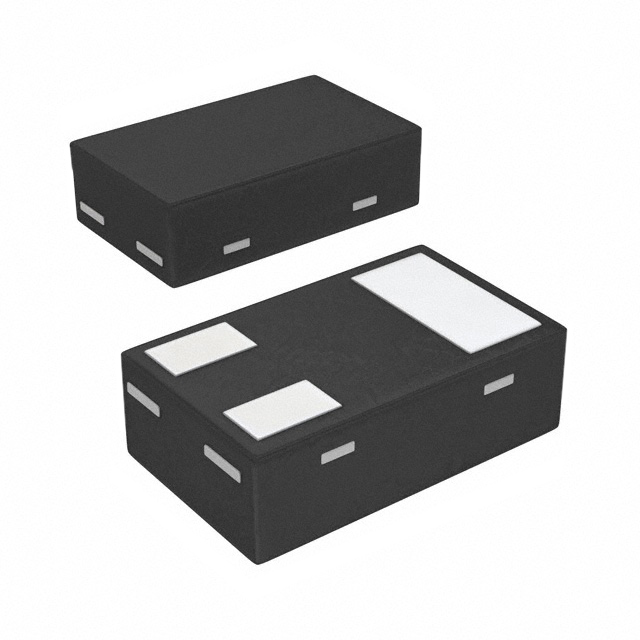

Central Semiconductor Corp CEDM8004 TR PBFREE	8 V	1 V	0.88 nC	150 °C	-65 °C	SC-101 SOT-883	450 mA	1.8 V	4.5 V	55 pF	100 mW	Surface Mount	30 V	MOSFET (Metal Oxide)	SOT-883VL	P-Channel	1.1 Ohm
