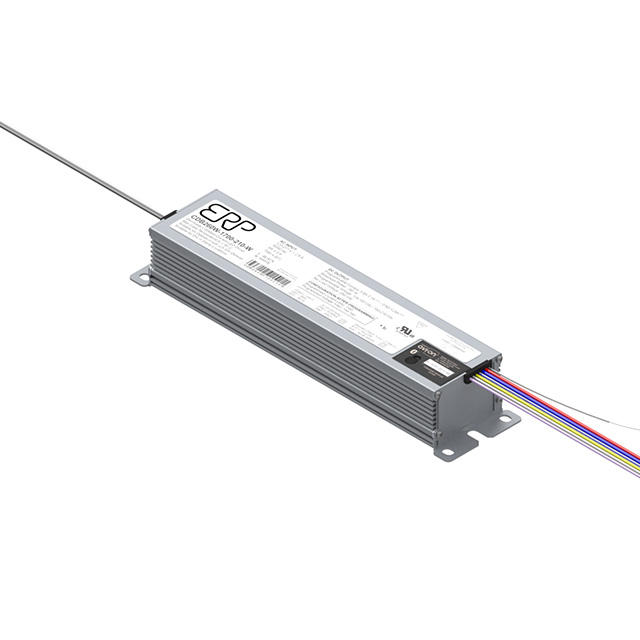

CDB260W Series

Catalog

LED DRVR CC AC/DC 260W DIM

Part	Efficiency	Voltage - Input (Min)	Topology	Dimming	Features	Voltage - Input (Max)	Voltage - Output (Range {idx}) Minimum	Voltage - Output (Range {idx}) Maximum	Voltage - Output (Range 1) Minimum	Voltage - Output (Range 1) Maximum	Voltage - Output (Range 2) Minimum	Voltage - Output (Range 2) Maximum	Voltage - Output (Min)	Voltage - Output (Max)	Ratings	Power (Watts)	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Termination Style	Type	Current - Output (Max) Options	Number of Outputs	Approval Agency	Mounting Type
ERP Power, LLC CDB260W-1300-280-W	93 %	90 VAC	AC DC Converter	Analog Bluetooth	OCP OTP SCP	305 V	152 V 213 V	200 V 280 V	213 V	280 V	152 V	200 V	152 V 213 V	200 V 280 V	IP66	260 W	2 in	8.54 in	1.52 in	Wire Leads	Constant Current	1.3A 930mA	1	CB CE cULus	Chassis Mount
ERP Power, LLC CDB260W-0860-400-W	93 %	90 VAC	AC DC Converter	Analog Bluetooth	OCP OTP SCP	305 V	228 V 304 V	300 V 400 V	304 V	400 V	228 V	300 V	228 V 304 V	300 VAC 400 V	IP66	260 W	2 in	8.54 in	1.52 in	Wire Leads	Constant Current	650mA 860mA	1	CB CE cULus	Chassis Mount
ERP Power, LLC CDB260W-1700-210-W	93 %	90 VAC	AC DC Converter	Analog Bluetooth	OCP OTP SCP	305 V	114 V 160 V	150 VDC 210 V	160 V	210 V	114 V	150 V	114 V 160 V	150 VAC 210 V	IP66	260 W	2 in	8.54 in	1.52 in	Wire Leads	Constant Current	1.24A 1.7A	1	CB CE cULus	Chassis Mount
ERP Power, LLC CDB260W-1700-210-R	93 %	90 VAC	AC DC Converter	Analog Bluetooth	OCP OTP SCP	305 V	114 V 160 V	150 VDC 210 V	160 V	210 V	114 V	150 V	114 V 160 V	150 VAC 210 V	IP66	260 W	2 in	8.54 in	1.52 in	Wire Leads	Constant Current	1.24A 1.7A	1	CB CE cULus	Chassis Mount
ERP Power, LLC CDB260W-0860-400-R	93 %	90 VAC	AC DC Converter	Analog Bluetooth	OCP OTP SCP	305 V	228 V 304 V	300 V 400 V	304 V	400 V	228 V	300 V	228 V 304 V	300 VAC 400 V	IP66	260 W	2 in	8.54 in	1.52 in	Wire Leads	Constant Current	650mA 860mA	1	CB CE cULus	Chassis Mount
ERP Power, LLC CDB260W-1300-280-R	93 %	90 VAC	AC DC Converter	Analog Bluetooth	OCP OTP SCP	305 V	152 V 213 V	200 V 280 V	213 V	280 V	152 V	200 V	152 V 213 V	200 V 280 V	IP66	260 W	2 in	8.54 in	1.52 in	Wire Leads	Constant Current	1.3A 930mA	1	CB CE cULus	Chassis Mount
