CAB.H05 Series
Manufacturer: LEMO
Beta
⌘K

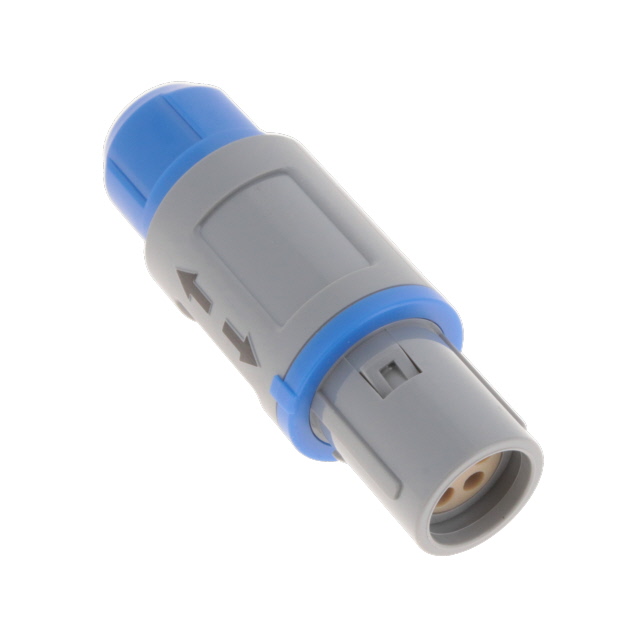

PLUG 5 POS FREE HANGING
| Part | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Shell Material | Current Rating (Amps) | Orientation | Contact Finish - Mating | Voltage Rating | Features | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Connector Type | Mounting Type | Fastening Type | Ingress Protection | Color | Insert Material | Shielding | Number of Positions | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | 5.3 mm | 0.283 " | 0.209 in | 7.2 mm | Polysulfone (PSU) | 8 A | B | Gold | 250 V | Backshell | Automotive Industrial Medical Testing Equipment & Measurement | 150 °C | -50 °C | H-5 | Plug Male Pins | Free Hanging (In-Line) | Detent Lock Push-Pull | IP50 - Dust Protected | Gray | Polyetheretherketone (PEEK) | Unshielded | 5 | UL94 V-0 |
