ACS709 Series
Manufacturer: Allegro MicroSystems
Beta
⌘K
BOARD MOUNT CURRENT SENSORS FOR NEW DESIGNS USE ACS71240LLC FOR LOW COST AND SMALL SIZE OR ACS37002 FOR VREF & FAULT
| Part | Output | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensor Type | Mounting Type | Current - Supply (Max) [Max] | Polarization | Current - Sensing | Package / Case [y] | Package / Case | Linearity | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | For Measuring | Sensitivity | Accuracy | Supplier Device Package | Number of Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

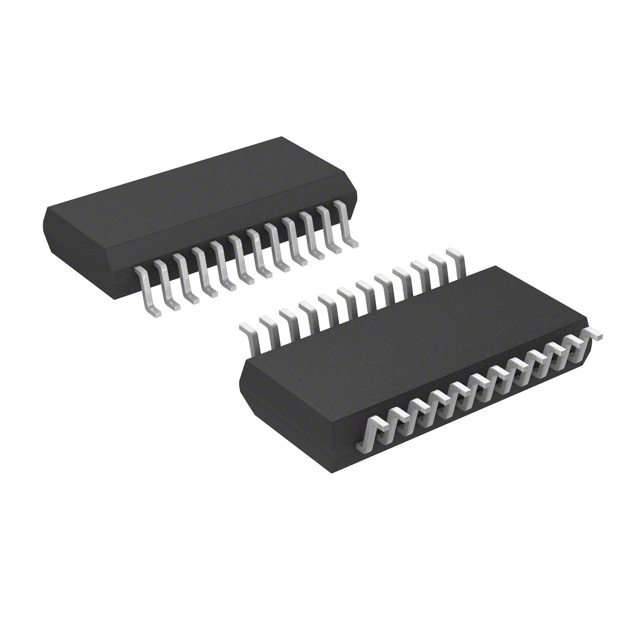

 Allegro MicroSystems | Ratiometric Voltage | 5.5 V | 3 V | Hall Effect Open Loop | Surface Mount | 14.5 mA | Bidirectional | 37.5 A | 0.154 in 3.9 mm Width | 24-SSOP | 0.25 % | 4 µs | -40 C | 150 °C | AC DC | 28 mV/A | 3 % | 24-QSOP | 1 |
