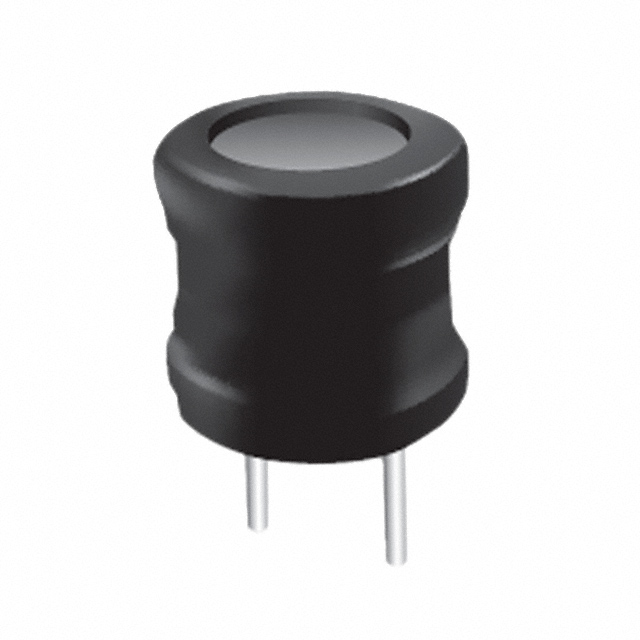

6100 Series

Catalog

FIXED IND 10UH 6.33A 0.02OHM TH

Part	Frequency - Self Resonant	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Inductance Frequency - Test	Type	DC Resistance (DCR) [Max]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Shielding	Supplier Device Package	Mounting Type	Material - Core	Package / Case	DC Resistance (DCR)
Bourns Inc. 6100-100K-RC	21 MHz	0.433 "	11 mm	0.413 "	10.5 mm	10 µH	100 kHz	Drum Core Wirewound	20 mOhm	10 %	125 °C	-40 C	6.33 A	Unshielded	Radial	Through Hole	Ferrite	Radial Vertical Cylinder
Bourns Inc. 6100-472K-RC	800 kHz	0.433 "	11 mm	0.413 "	10.5 mm	4.7 mH	100 kHz	Drum Core Wirewound	8.23 Ohm	10 %	125 °C	-40 C	0.29 A	Unshielded	Radial	Through Hole	Ferrite	Radial Vertical Cylinder
Bourns Inc. 6100-222K-RC	1.1 MHz	0.433 "	11 mm	0.413 "	10.5 mm	2.2 mH	100 kHz	Drum Core Wirewound	4.26 Ohm	10 %	125 °C	-40 C	0.42 A	Unshielded	Radial	Through Hole	Ferrite	Radial Vertical Cylinder
Bourns Inc. 6100-681K-RC	2 MHz	0.433 "	11 mm	0.413 "	10.5 mm	680 µH	100 kHz	Drum Core Wirewound	1.09 Ohm	10 %	125 °C	-40 C	760 mA	Unshielded	Radial	Through Hole	Ferrite	Radial Vertical Cylinder
Bourns Inc. 6100-220K-RC	12 MHz	0.433 "	11 mm	0.413 "	10.5 mm	22 µH	100 kHz	Drum Core Wirewound		10 %	125 °C	-40 C	4.52 A	Unshielded	Radial	Through Hole	Ferrite	Radial Vertical Cylinder	39 mOhm
Bourns Inc. 6100-471K-RC	2.6 MHz	0.433 "	11 mm	0.413 "	10.5 mm	470 µH	100 kHz	Drum Core Wirewound		10 %	125 °C	-40 C	900 mA	Unshielded	Radial	Through Hole	Ferrite	Radial Vertical Cylinder	770 mOhm
Bourns Inc. 6100-821K-RC	1.8 MHz	0.433 "	11 mm	0.413 "	10.5 mm	820 µH	100 kHz	Drum Core Wirewound		10 %	125 °C	-40 C	690 mA	Unshielded	Radial	Through Hole	Ferrite	Radial Vertical Cylinder	1.44 Ohm
Bourns Inc. 6100-391K-RC	2.8 MHz	0.433 "	11 mm	0.413 "	10.5 mm	390 µH	100 kHz	Drum Core Wirewound	640 mOhm	10 %	125 °C	-40 C	1 A	Unshielded	Radial	Through Hole	Ferrite	Radial Vertical Cylinder
Bourns Inc. 6100-330K-RC	10.5 MHz	0.433 "	11 mm	0.413 "	10.5 mm	33 µH	100 kHz	Drum Core Wirewound	59 mOhm	10 %	125 °C	-40 C	3.39 A	Unshielded	Radial	Through Hole	Ferrite	Radial Vertical Cylinder
Bourns Inc. 6100-122K-RC	1.4 MHz	0.433 "	11 mm	0.413 "	10.5 mm	1200 µH	100 kHz	Drum Core Wirewound	2.2 Ohm	10 %	125 °C	-40 C	570 mA	Unshielded	Radial	Through Hole	Ferrite	Radial Vertical Cylinder
